When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Tue Apr 02, 2019 6:12 pm

Been under the weather fighting this and that, winter crud.

Progress has been well lately as I am getting toward the end and wish to share knowledge and methods.

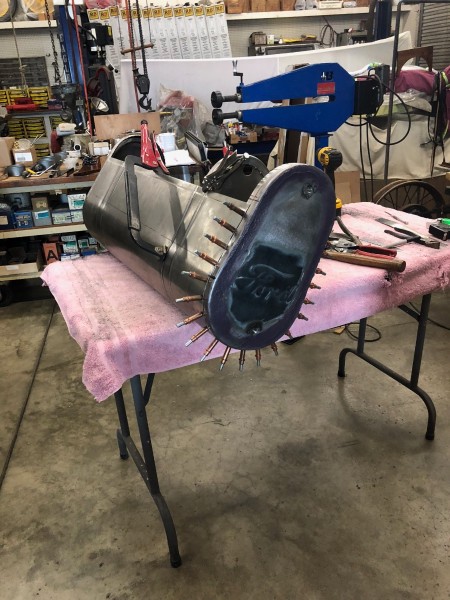

The purple filler is Evercoat Fibertech, a Kevlar reinforced resin that is excellent for supporting welds.

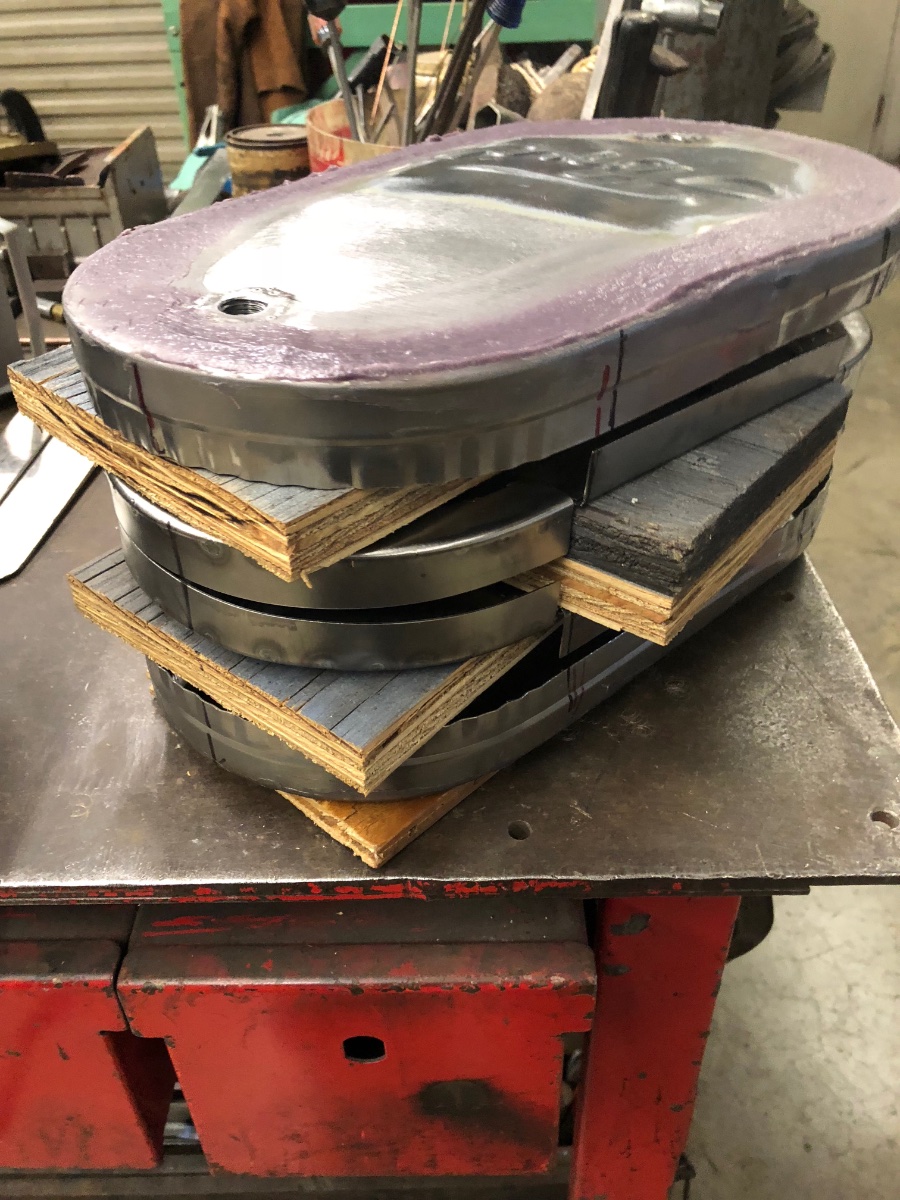

Indexing the ends and baffles to ensure no twisting.

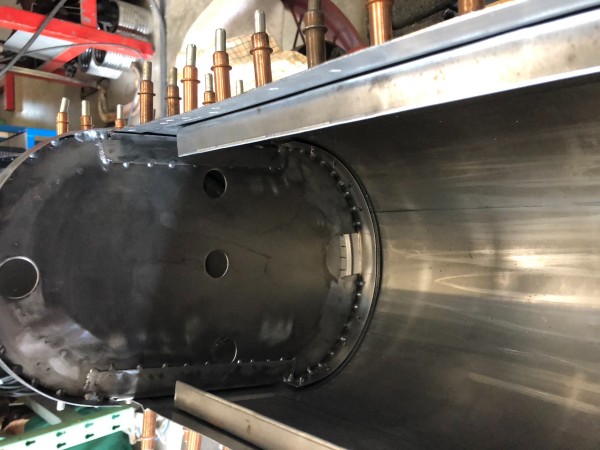

Baffles are very important anytime you have fuel above 5 gallons and above the frame, sudden aggressive maneuvers is very dangerous and can cause roll overs, etc. Installing the baffles where the retaining straps are located on a mis-shaped, odd tanks helps keep form when tightening.

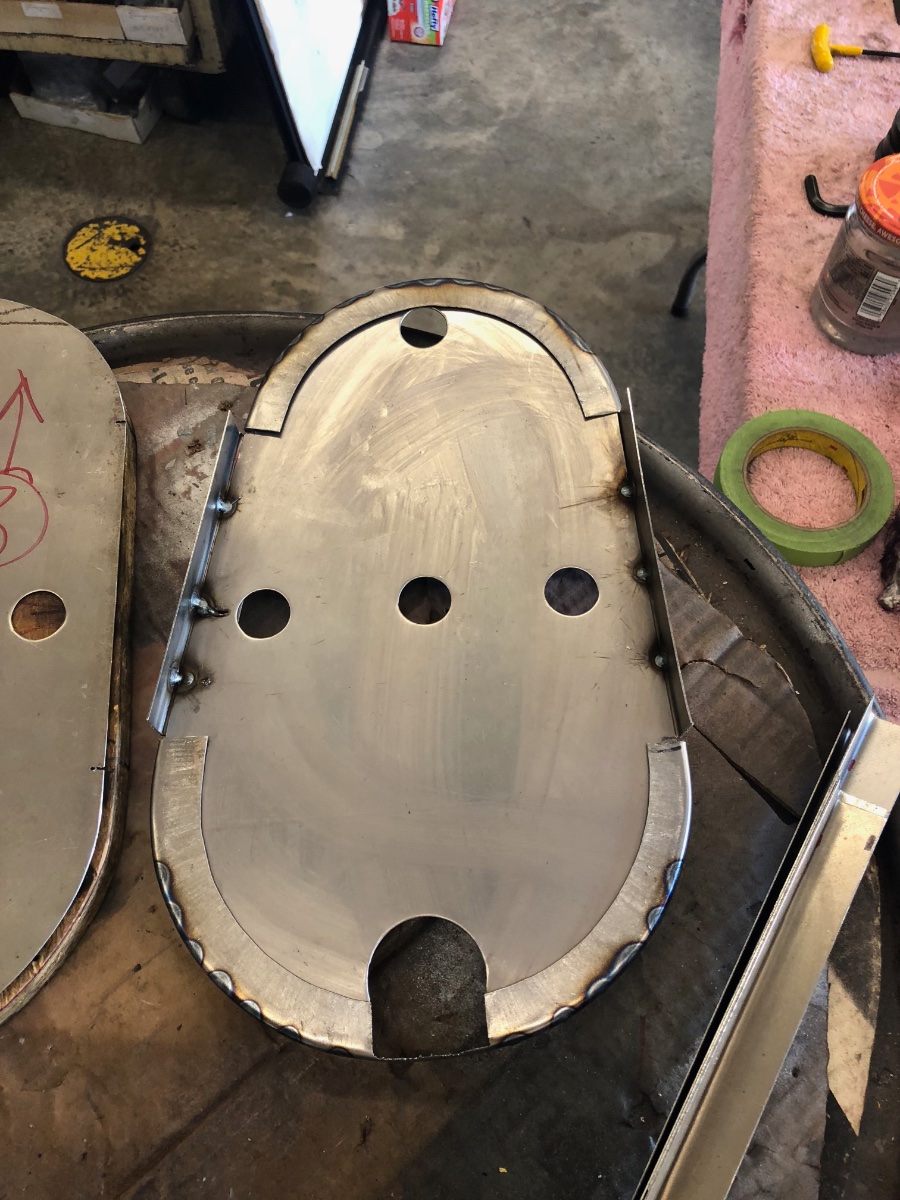

Notice the small reinforcements where the seam is, this keeps the panel straight and prevents fuel sloshing like a mini tidal wave.

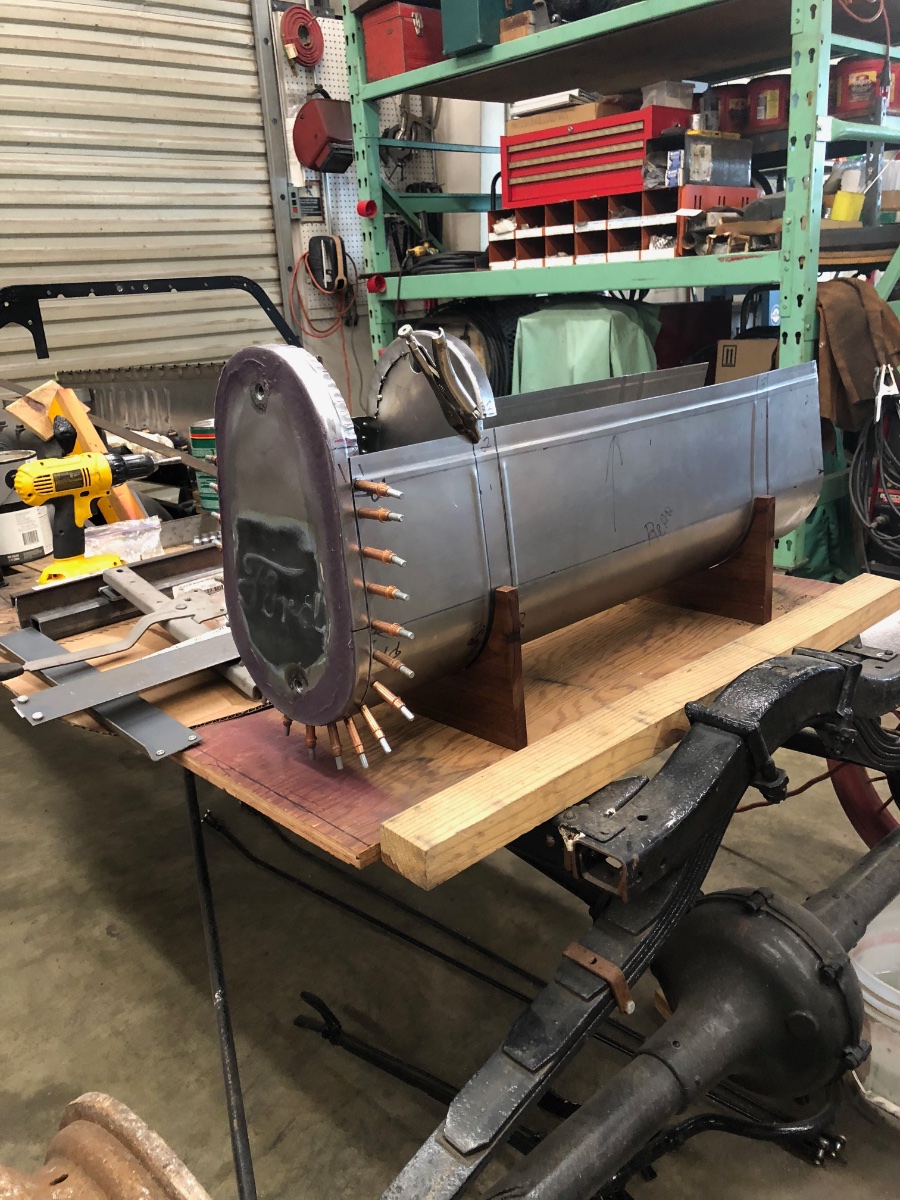

Setting the lower skin to the ends first then baffles, following the index marks exactly,

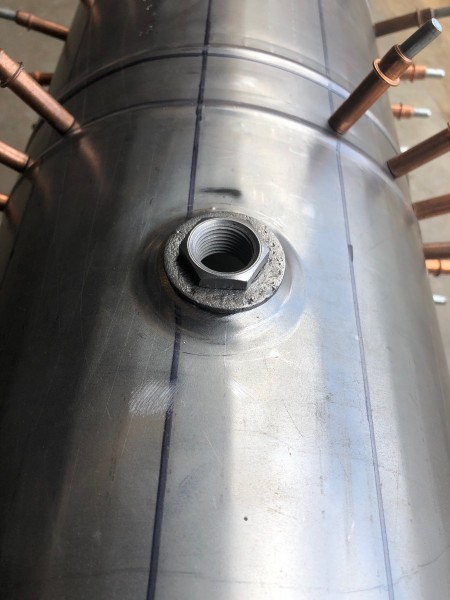

Don't forget to dimple the bottom for removing all the fuel.

More coming...,

User avatar

Topic author
Henry K. Lee
Posts: 2516
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Tue Apr 02, 2019 6:18 pm

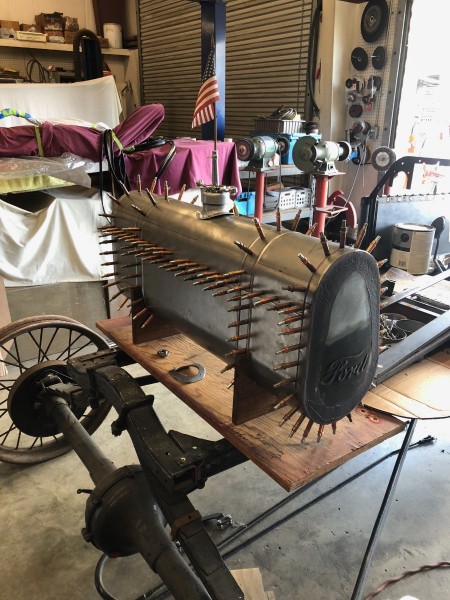

After all is attached, time to take apart and sand all areas to be welded and de-burr from drilling. Then reassemble for the final act..



Some Bonus Photos to follow...,

User avatar

Topic author
Henry K. Lee
Posts: 2516
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Tue Apr 02, 2019 6:28 pm

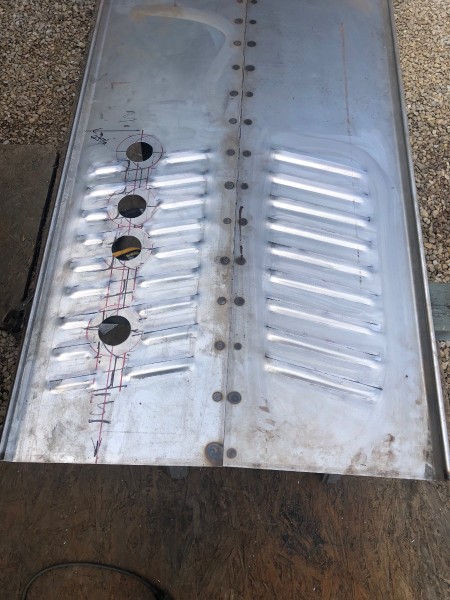

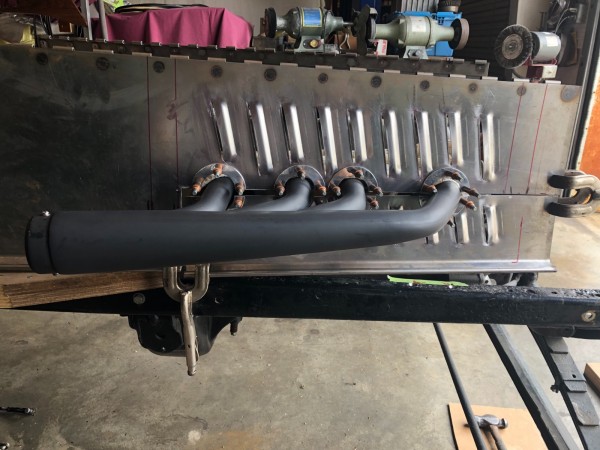

Dave sent me his hood for header relieving with the lower panel staying attached to the firewall and attached to the radiator by means of a pinch plate.

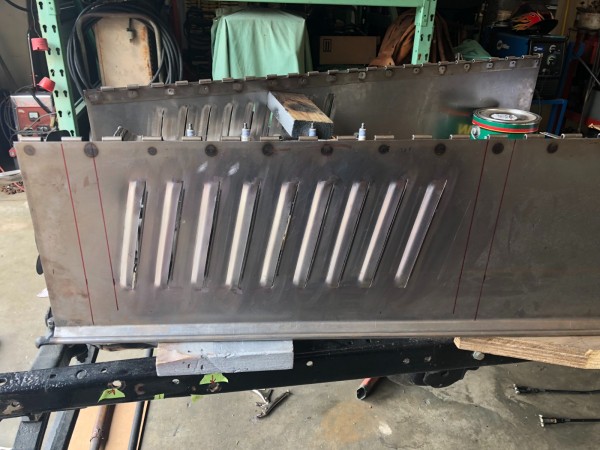

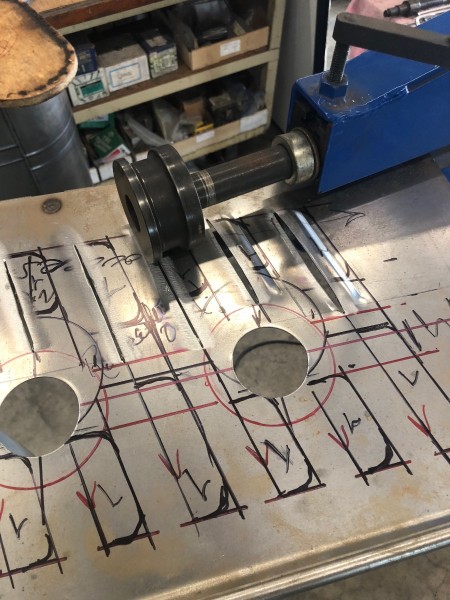

She definitely needs louvers with a header. We put the louvers at the same angle as the seat, fuel tank, this keeps a flow of motion in design. Looks hot just sitting there.




Pre cutting the opening will prevent distortion of the metal by a great amount.


More stuff....,


Les Schubert
Posts: 502
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: When The Tin Man Looses his Mind, Part 2

Post by Les Schubert » Tue Apr 02, 2019 6:35 pm

Very nice!!
Thank you for posting

User avatar

Ruxstel24
Posts: 1822
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: When The Tin Man Looses his Mind, Part 2

Post by Ruxstel24 » Tue Apr 02, 2019 6:40 pm

Extra good !!

What exactly are all the little copper posts ?

User avatar

Topic author
Henry K. Lee
Posts: 2516
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Tue Apr 02, 2019 6:46 pm

Sorry Dave, Long day in the porcupine factory.

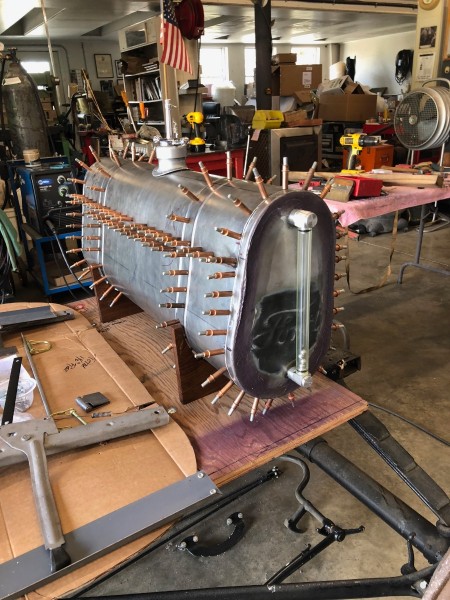

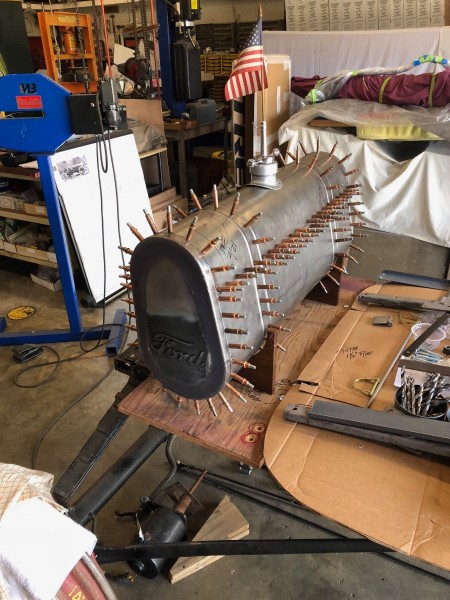

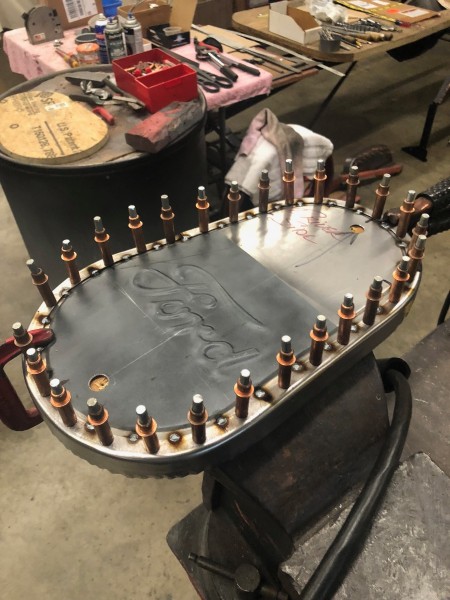

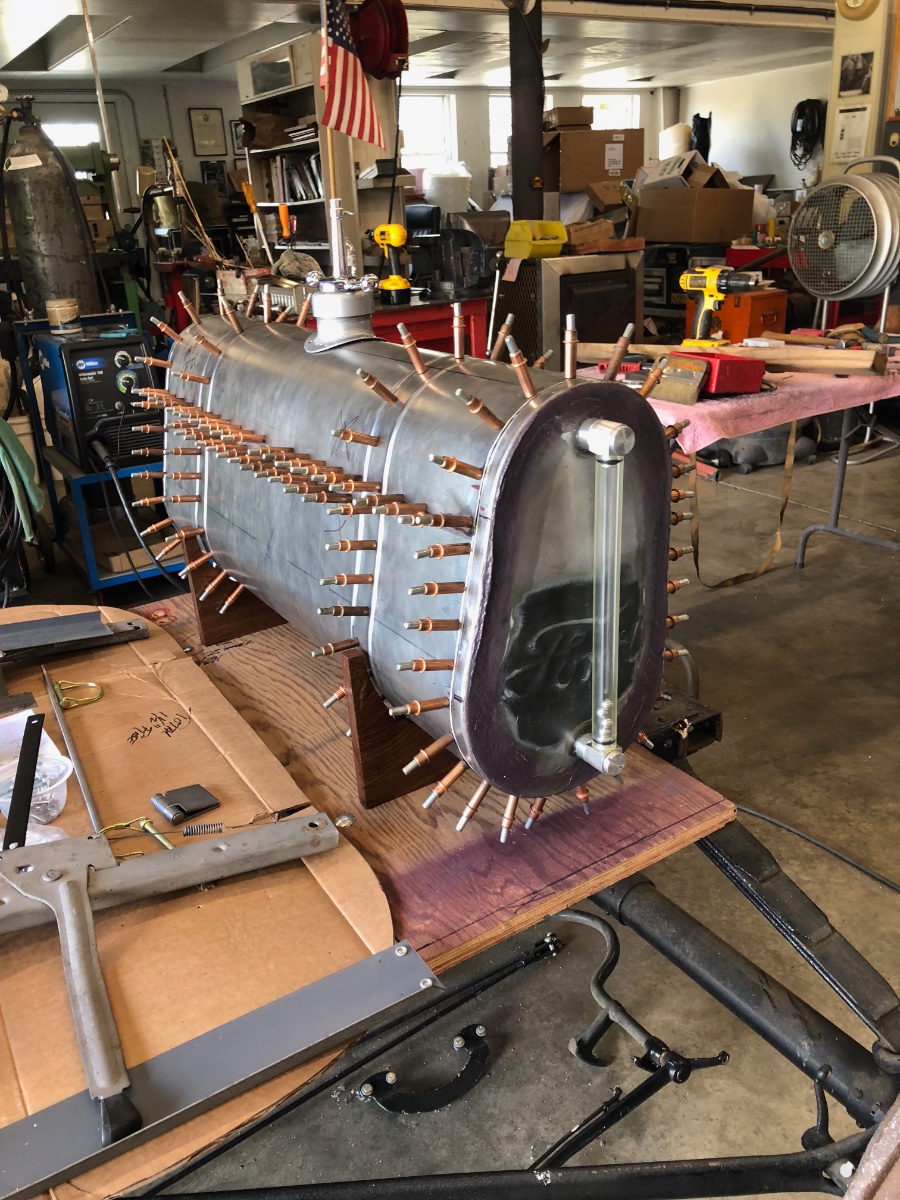

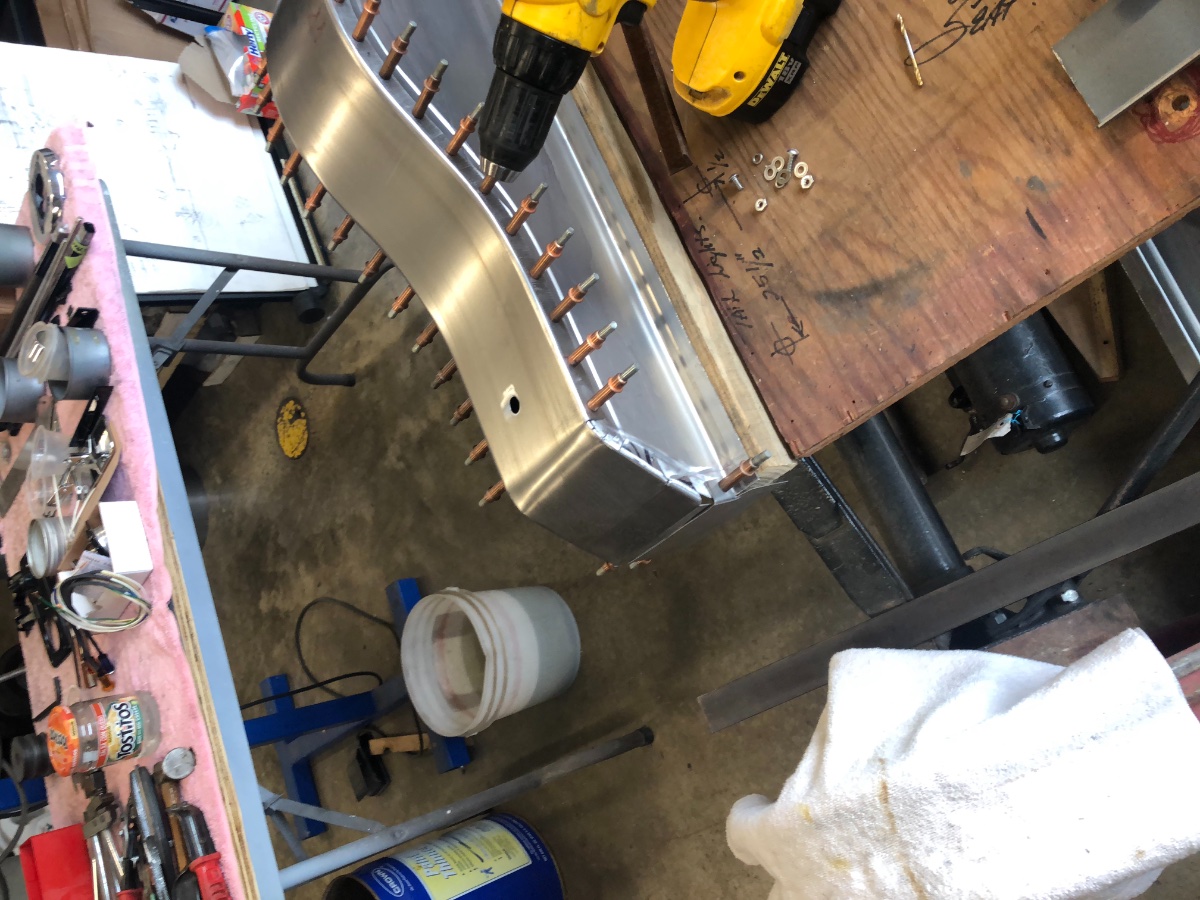

Those are Cleco's. We use them in panel fabrication since panels are removed so often for fitting. We don't weld to close to them as this will distort the internal springs, but work too as a heat shunt

Hank


Dallas Landers
Posts: 1531
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: When The Tin Man Looses his Mind, Part 2

Post by Dallas Landers » Tue Apr 02, 2019 6:55 pm

Very nice Henry!
Thanks for showing and explaining the process. I really like explinations because little things like indexing to keep from having a twist can mean everything in the end result.

" always trying to learn Dallas"

User avatar

havnfun
Posts: 99
Joined: Sun Jan 06, 2019 11:27 am
First Name: Joe
Last Name: Kowalczyk
Location: - Nampa
MTFCA Number: 49558
MTFCI Number: 24878
Board Member Since: 2017

Re: When The Tin Man Looses his Mind, Part 2

Post by havnfun » Tue Apr 02, 2019 8:13 pm

Hank,

Really nice looking craftmanship, coming along beautifully, really appreciate the pictures and explanation as you progress through your project.

Thanks for sharing

Joe
Regards,
Joe Kowalczyk - 1923 Touring, 1913 Speedster, 1913 Runabout
Email: havnfun@cableone.net

(208) 870-3099

User avatar

havnfun
Posts: 99
Joined: Sun Jan 06, 2019 11:27 am
First Name: Joe
Last Name: Kowalczyk
Location: - Nampa
MTFCA Number: 49558
MTFCI Number: 24878
Board Member Since: 2017

Re: When The Tin Man Looses his Mind, Part 2

Post by havnfun » Tue Apr 02, 2019 8:59 pm

Hank,

What is your trick to filling in the holes used by Cleco's

THanks

Joe
Regards,
Joe Kowalczyk - 1923 Touring, 1913 Speedster, 1913 Runabout
Email: havnfun@cableone.net

(208) 870-3099

User avatar

Topic author
Henry K. Lee
Posts: 2516
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Tue Apr 02, 2019 9:03 pm

Some bonus techniques I forgot to mention.

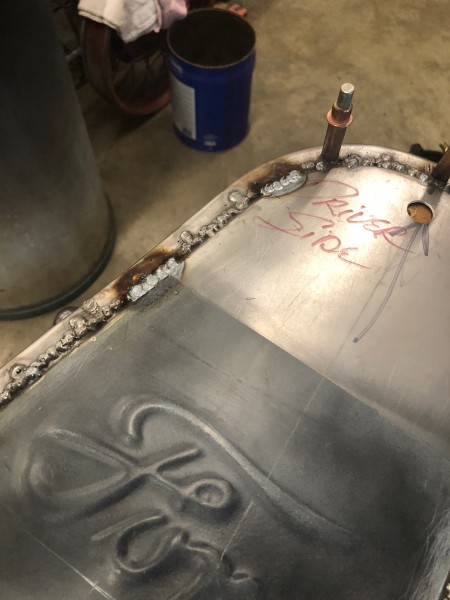

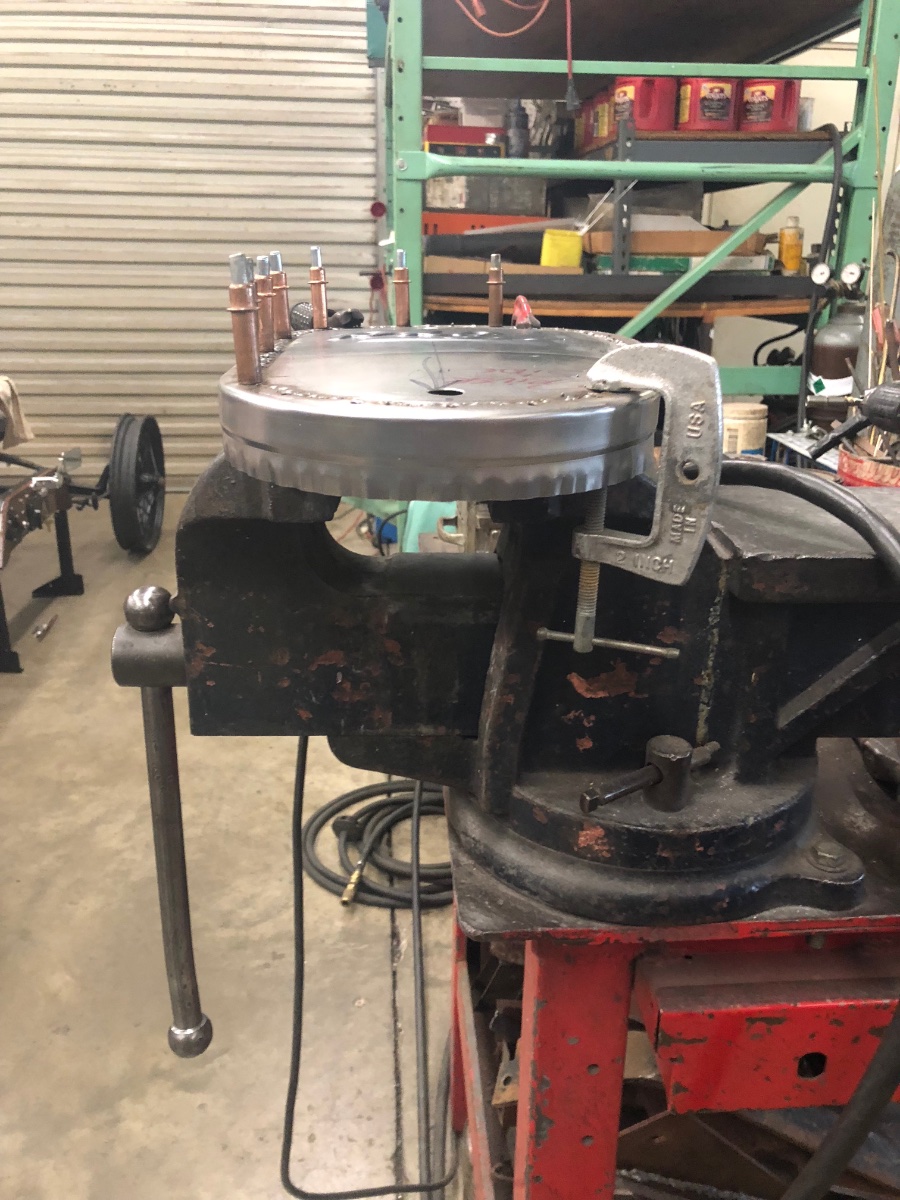

After fitting the outside ring for the end cap to side panel, I leave the wood in place with the Cleco's. By doing this if you cause smoke you are welding to much for to long and the wood helps control heat equally as you bounce from one end to the other preventing distortion. After all "pearl" welding is complete, I come back in very short runs with plenty of cooling cycles and put another weld towards the inner side of the panel. This technique in tin/panel making causes a light tempering of the metal. A very good thing when you are wanting to preserve a shape in smaller panels such as this one with doming. Always use a quality metal for excellent results.


The baffles are to by no greater than the outside of the wood template, where as the end caps go over the template. This keeps everything just right for total assembly and in the correct plane.


All the Best,

Hank in Tin-A-See


Remove the Cleco's and weld in the hole Joe, it is only an 1/8".

User avatar

Topic author
Henry K. Lee
Posts: 2516
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Tue Apr 02, 2019 9:10 pm

Some extra photos to inspire.


Rear spring cover, matching in a scaled down profile of the hood.

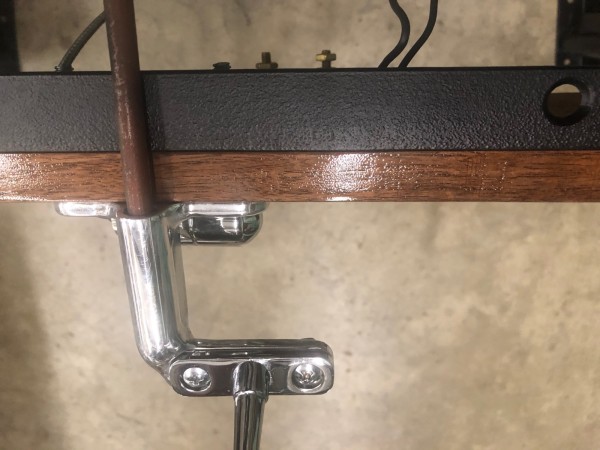

Built a combination rear hood pin holder and rear view mirror mount.

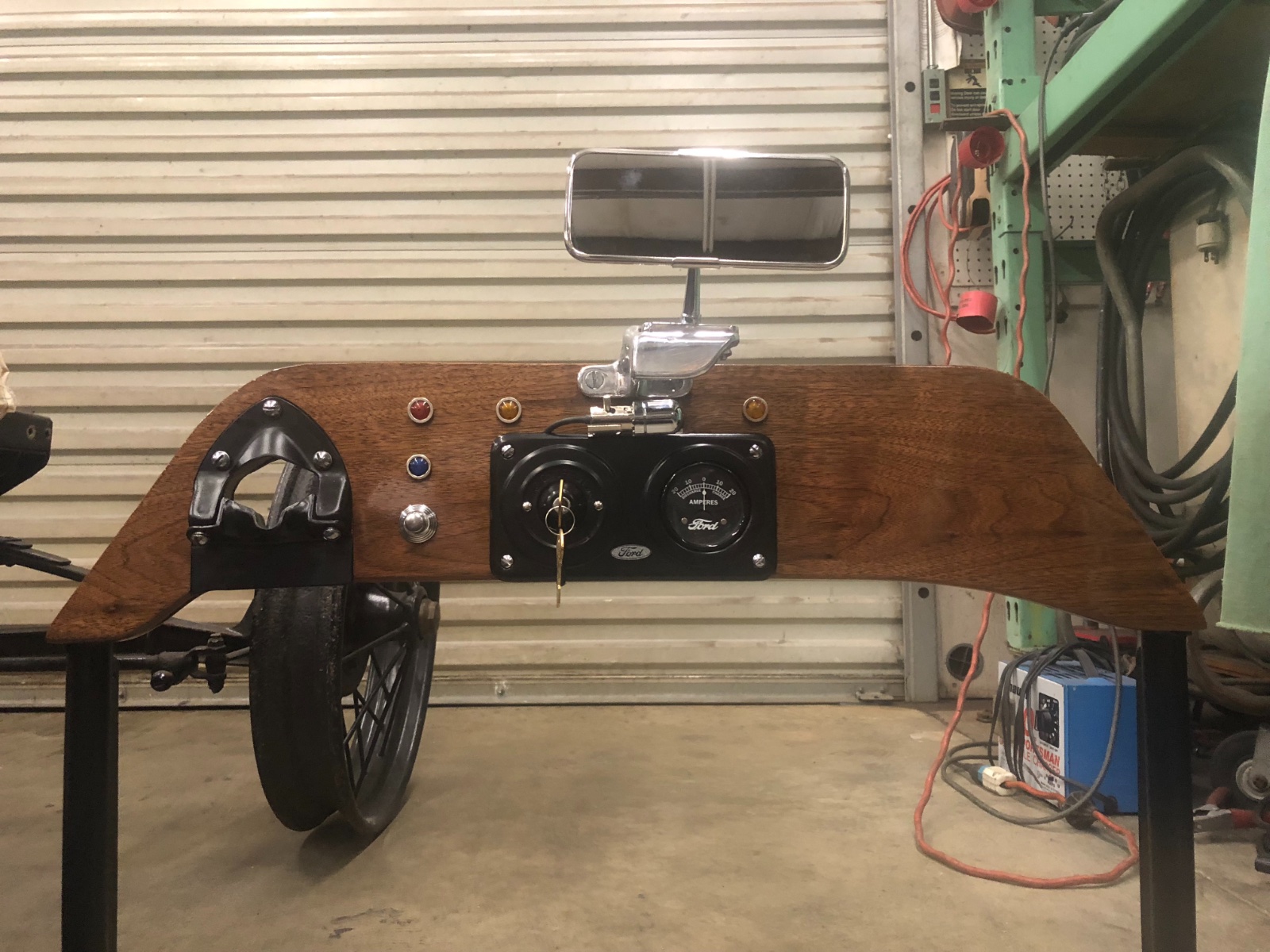

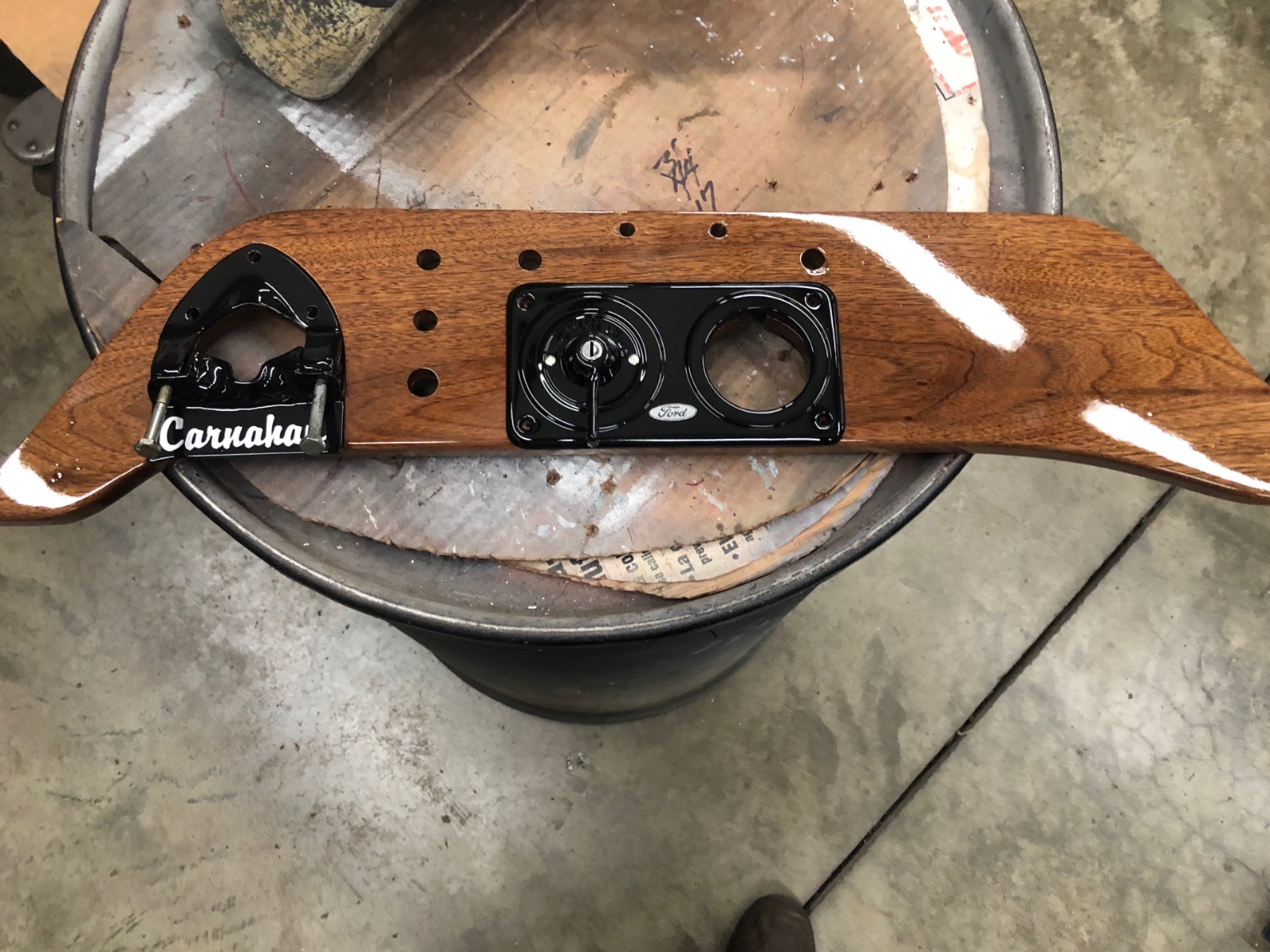

And a real beautiful Tennessee Mountain Black Walnut Dash.


Enjoy!


Hank

User avatar

Quickm007
Posts: 428
Joined: Mon Jan 07, 2019 10:58 am
First Name: Mario
Last Name: Brossard
Location: Canada
MTFCA Number: 30981
MTFCI Number: 30981
Board Member Since: 1999

Re: When The Tin Man Looses his Mind, Part 2

Post by Quickm007 » Tue Apr 02, 2019 9:15 pm

Amazing work Henry! Impressive!
Super Mario Bross ;)

1911 Touring
1914 race car project

User avatar

RustyFords
Posts: 1042
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: When The Tin Man Looses his Mind, Part 2

Post by RustyFords » Wed Apr 03, 2019 7:20 am

Beautiful work Hank, as always.

Thanks for sharing.
1924 Touring

User avatar

Topic author
Henry K. Lee
Posts: 2516
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: When The Tin Man Looses his Mind, Part 2

Post by Henry K. Lee » Wed Apr 03, 2019 8:06 pm

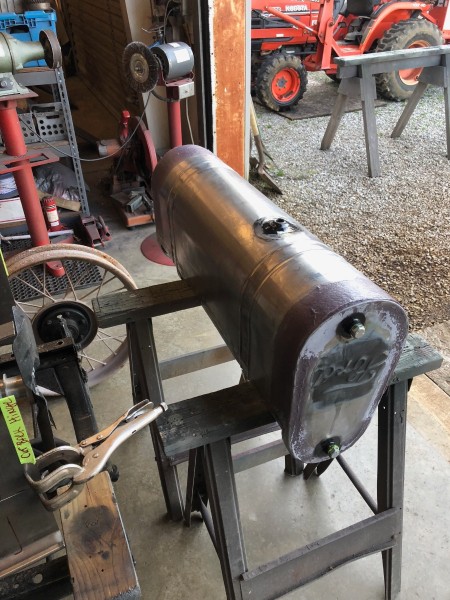

Here are some more photos with extras on how to preserve for years. This fuel tank still has twisting/flex capability due to the welding method on the baffles. If you look closely at their attachment, you will notice from straight plane to curve there is no welding (that is the reversing of the L braces). I only attach the baffles though holes every 1 1/2" apart like a spot weld but with better fusion. I have a spot welder, a very good one (Miller) but I like very good welds on fuel cells. Personal preference.

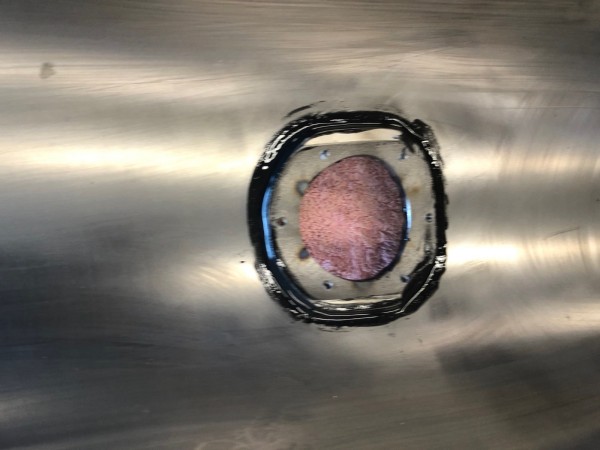

Some extra's I do are a full Fiber Tech on the outside welds since we are making a smooth appearance and the vibrations in the car's design. This supports welds. Also I clean and remove all oxidation from welding in the lower section of the tank since this area is more prone to issues later. Afterwards I use 3M Panel Bond Adhesive as a super seam sealer over those welds and joints. Seams a bit overkill, but I believe in total prevention of a known process.
I am only giving a 50 year warranty, but it should last at least a 100.


All the Best,

Hank in Tin-A-See

User avatar

John Warren
Posts: 621
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: When The Tin Man Looses his Mind, Part 2

Post by John Warren » Wed Apr 03, 2019 10:33 pm

I like it when; The Tin Man Looses his mind! Thanks Hank for sharing your beautiful work.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P

User avatar

GEmering
Posts: 189
Joined: Sun Jan 06, 2019 3:47 pm
First Name: Gene
Last Name: Emering
Location: Newton, New Jersey
Board Member Since: 2018

Re: When The Tin Man Looses his Mind, Part 2

Post by GEmering » Thu Apr 04, 2019 12:39 am

Amazing Hank!
Gene Emering
Newton, New Jersey

User avatar

JWalters
Posts: 105
Joined: Sun Jan 06, 2019 6:34 pm
First Name: Jason
Last Name: Walters
Location: Missouri
Board Member Since: 2000

Re: When The Tin Man Looses his Mind, Part 2

Post by JWalters » Fri Apr 05, 2019 2:01 am

Great work Hank! Thanks for sharing with us.
