Emergency flashers: is the diagram wrong?

Post by Steve Jelf » Wed Jan 05, 2022 12:47 pm

EP34 Flasher 2.jpg

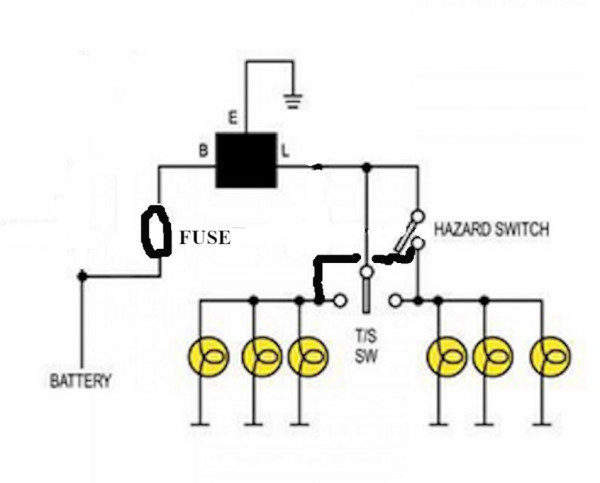

It appears to me that if the emergency circuit has a simple single pole on-off switch, the right/left switch will activate both sides together. I think the emergency switch needs to have two separate terminals going out, with no connection between them. Is that right?
The inevitable often happens.
1915 Runabout
1923 Touring


mtntee20
Posts: 657
Joined: Sun Jan 06, 2019 2:51 pm
First Name: Terry & Sharon
Last Name: Miller
* REQUIRED* Type and Year of Model Ts owned: 1920 Center Door, 1920 TTWood cab Farm Truck with cable dump grain bed, 1920 TT C-Cab with express bed, 1927 Wood body Dairy Delivery truck
Location: Westminster, CO
Board Member Since: 2017

Re: Emergency flashers: is the diagram wrong?

Post by mtntee20 » Wed Jan 05, 2022 1:14 pm

Steve,

I believe you are correct. The emergency switch should be a double pole single throw switch with the right side lights on one output pole and the left side lights on the other output pole with the wire from "L" to both the input poles on the switch. This way the right and left side lights are NOT connected through the emergency switch when the emergency switch is open/off. But, ARE connected when the emergency switch is closed/on.

The way the diagram shows as drawn, All the signal lights will come on with emergency switch AND with the turn signal switch whether the turn signal switch is on for left OR right.

Good Luck,

User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Emergency flashers: is the diagram wrong?

Post by TRDxB2 » Wed Jan 05, 2022 9:14 pm

Steve Jelf wrote:
Wed Jan 05, 2022 12:47 pm
EP34 Flasher 2.jpg
It appears to me that if the emergency circuit has a simple single pole on-off switch, the right/left switch will activate both sides together. I think the emergency switch needs to have two separate terminals going out, with no connection between them. Is that right?
There are various ways depending on the flasher. NOTE: Two fuses!

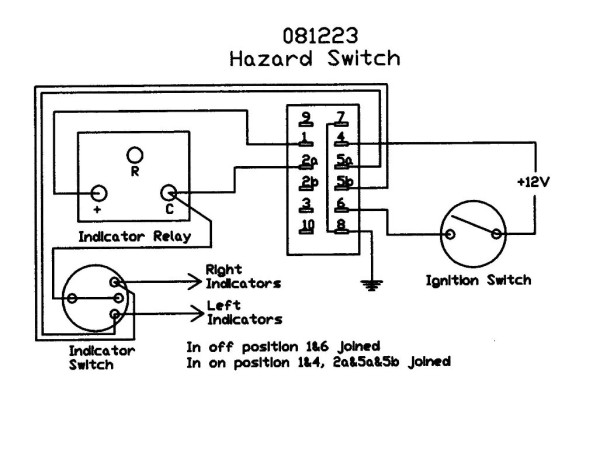

http://www.netlink.net/mp/volks/htm/signals.htm
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger


J1MGOLDEN
Posts: 1230
Joined: Sun Jan 06, 2019 5:39 pm
First Name: James
Last Name: Golden
* REQUIRED* Type and Year of Model Ts owned: 1926 Model T Roadster
Location: Bowie, MD

Re: Emergency flashers: is the diagram wrong?

Post by J1MGOLDEN » Tue Jan 11, 2022 10:45 am

The original circuit will work without that added wire.

You just have to use the turn signal switch set for those left turn blinkers and then the emergency switch will power the right turn lights in the circuit.

The blinker rate will be faster with both light sets selected.

A separate flasher was normally used for all lights to flash, and a different circuit was required and not shown here.

The early flashers contained a metal strip of two metals fused together.

The expansion rates were different, and the current flow warmed the metal strip to open and close the circuit.

More current made the flasher work faster.

There are new flashers with a different style modern construction that are heavy duty and cost extra.

They will always flash at the same rate regardless of the current flow.

User avatar

AndreFordT
Posts: 513
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
* REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
Location: Scherpenheuvel

Re: Emergency flashers: is the diagram wrong?

Post by AndreFordT » Tue Jan 11, 2022 12:35 pm

Steve,

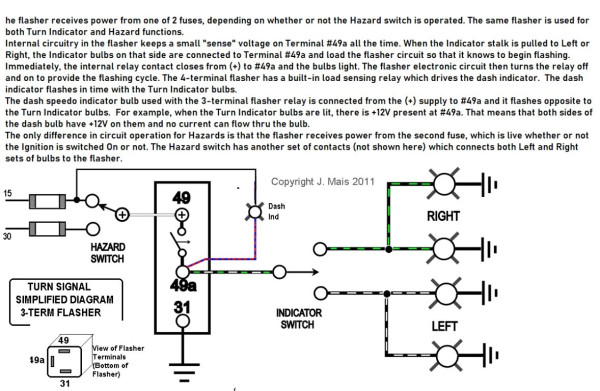

I think you are looking for this.

Good luck
Andre
Belgium
Attachments

User avatar

John.Zibell
Posts: 361
Joined: Mon Jan 07, 2019 9:09 am
First Name: John
Last Name: Zibell
* REQUIRED* Type and Year of Model Ts owned: 1926 Tudor
Location: Huntsville, AL

Re: Emergency flashers: is the diagram wrong?

Post by John.Zibell » Tue Jan 11, 2022 9:52 pm

If you don't have a turn signal controller with 4 way flashers built in there is a very simple solution. With a single pole single throw switch (simply on/off) run a wire from one side to the switch, then from the switch to the other side. with the switch in the off position, you have normal turn signals. When you switch to on and then activate either left or right turn, you get 4 way flasher function. I've done this several times for motorcycles.
1926 Tudor

User avatar

Topic author
Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:

Re: Emergency flashers: is the diagram wrong?

Post by Steve Jelf » Tue Jan 11, 2022 10:14 pm

I've made the control panel and it works. When I get the lights installed in the car I'll post pictures and a video.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Craig Leach
Posts: 1906
Joined: Tue Jan 08, 2019 12:22 am
First Name: craig
Last Name: leach
* REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
Location: Laveen Az

Re: Emergency flashers: is the diagram wrong?

Post by Craig Leach » Fri Feb 04, 2022 4:52 pm

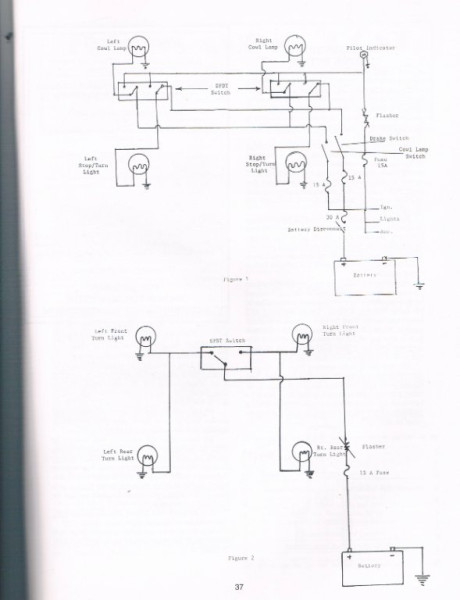

Found this in the Vintage Ford Vol. 31 No. 3 May-June 1996
Craig.

Post Reply Previous topicNext topic
