Fender rivet size?
I suspect this is one of those parts that's the same for all years, but the particular car in question is a 1915. What size are the rivets that hold the brackets to the fenders? I need to remove the brackets to repair some fender cracks, and will need to install new rivets.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
TRDxB2
- Posts: 6261
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Fender rivet size?
Difference due to quantities and/or sizes ?
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Don D
- Posts: 288
- Joined: Sun Jan 06, 2019 4:36 pm
- First Name: Don
- Last Name: Demio
- * REQUIRED* Type and Year of Model Ts owned: 1919 T
- Location: Tennessee
Re: Fender rivet size?
Another source:
Big Flats Rivet Co.
Jim Dix
PO Box 100
Big Flats, NY 14814
Phone: (607) 562-3501
Email: jdix6@stny.rr.com
Best of luck,
Dom
Big Flats Rivet Co.
Jim Dix
PO Box 100
Big Flats, NY 14814
Phone: (607) 562-3501
Email: jdix6@stny.rr.com
Best of luck,
Dom
-
Steve Jelf
Topic author - Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Fender rivet size?
A lot of the rivets in Jim's catalogue are listed only by size. He does specify ¼ x ¾ brazier head for front fenders, but I don't see anything listed for rear. That's why I asked about size. I'll ask him.

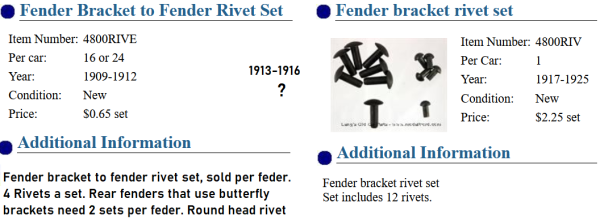

Lang's catalogue shows a ? for 13-16.
If Jim doesn't have them long enough for the rear, I'll ask Mister Google.
Lang's catalogue shows a ? for 13-16.
If Jim doesn't have them long enough for the rear, I'll ask Mister Google.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
TRDxB2
- Posts: 6261
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Fender rivet size?

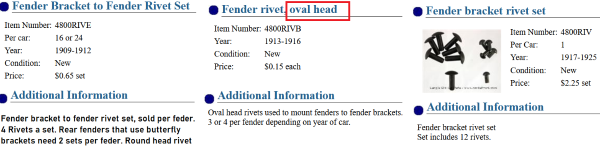

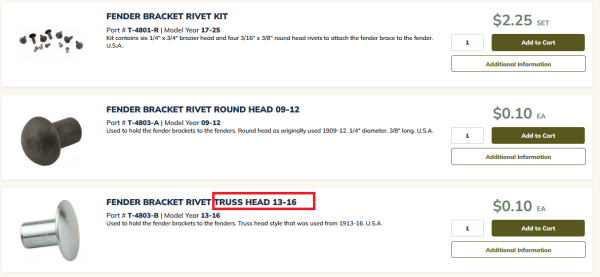

Snyder's says truss head! Looked in Lang's offerings again. Used a different heading for 1913-16. Truss or oval. that is the questionSteve Jelf wrote: ↑Tue Mar 01, 2022 1:18 pmA lot of the rivets in Jim's catalogue are listed only by size. He does specify ¼ x ¾ brazier head for front fenders, but I don't see anything listed for rear. That's why I asked about size. I'll ask him.
Lang's catalogue shows a ? for 13-16.
If Jim doesn't have them long enough for the rear, I'll ask Mister Google.
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Steve Jelf
Topic author - Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Fender rivet size?
One online source says truss and brazier are synonyms. I suppose I can get truss heads, and if the heads are too big I can turn them down in the lathe to match the originals.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
TRDxB2
- Posts: 6261
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Fender rivet size?

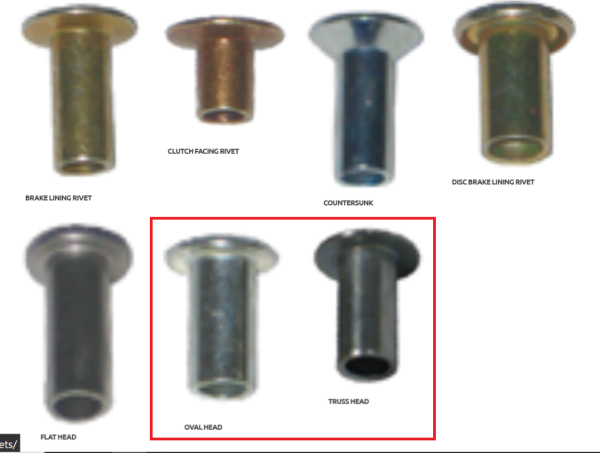

I had been looking at rivets, entirely different application., and yes came across the same definitions truss= brazier. This site gives all dimensions (head sizes been the one of interest crown & diameter) for oval & truss https://prairierivet.com/products/solid-rivets/ doubt if the buck needs to careSteve Jelf wrote: ↑Tue Mar 01, 2022 2:58 pmOne online source says truss and brazier are synonyms. I suppose I can get truss heads, and if the heads are too big I can turn them down in the lathe to match the originals.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Fender rivet size?
The question you are not getting answered is what is the "correct" head diameter & profile, diameter & length. Outside of measuring your original rivets(less paint build up), I dont have the answer. Maybe this comment will steer others to your needed answer.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Fender rivet size?
How many you needing Steve ? I believe I have some left that Otis Clinton machined back in the 60's & 70's from original Ford NOS parts.
