# 4 Rod dam 3 dip pan
Looking for info and pictures of how to install a dam for number 4 rod in a 3 dip pan. Don’t want to reinvent the wheel, how have you guys done it? Thanks Dan
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: # 4 Rod dam 3 dip pan
Hi Dan,

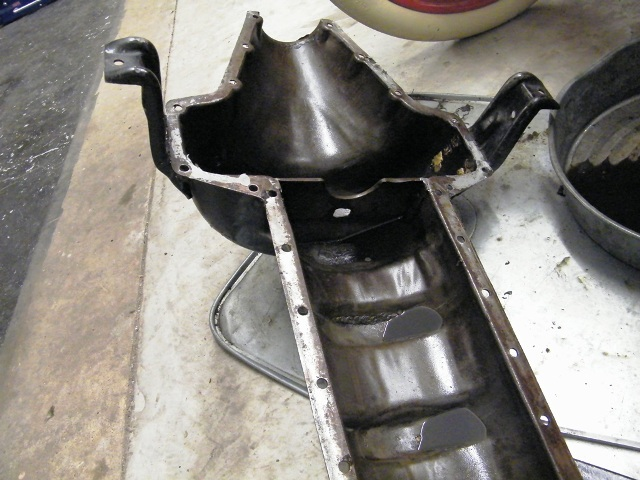

I always add a fourth dip to my three dip pans. I use a piece cut out of a old inspection cover ( you can get 2 out of a three dip cover ) the way I do it is to cut the dip to fit and duplicate a dip at the fourth rod and then bend up a 3/8" dam at the end to catch and hold oil. This simulates the horse shoe to maintain oil and it will pick up some splash from the flywheel. I make the dam as far back as is reasonable. I would not recomend making the dam any taller than 3/8" the first one I did I made the dam 5/8" tall, it retains a quart of oil in the dips and the engine smokes after it idles for a while. I will try to post a pic as soon as my phone decides to send it to my desk top. Az.Terry showed me this.
Craig.
I always add a fourth dip to my three dip pans. I use a piece cut out of a old inspection cover ( you can get 2 out of a three dip cover ) the way I do it is to cut the dip to fit and duplicate a dip at the fourth rod and then bend up a 3/8" dam at the end to catch and hold oil. This simulates the horse shoe to maintain oil and it will pick up some splash from the flywheel. I make the dam as far back as is reasonable. I would not recomend making the dam any taller than 3/8" the first one I did I made the dam 5/8" tall, it retains a quart of oil in the dips and the engine smokes after it idles for a while. I will try to post a pic as soon as my phone decides to send it to my desk top. Az.Terry showed me this.
Craig.
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: # 4 Rod dam 3 dip pan
Craig
-
Dan McEachern
- Posts: 1402
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: # 4 Rod dam 3 dip pan
Be aware that any welding in that area of the pan will cause it to curl up at the 4th main due to weld shrinkage. Just make sure to get the pan on a jig after your dam/ 4th dip is in place.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: # 4 Rod dam 3 dip pan
Is this what your looking for http://www.mtfca.com/discus/messages/25 ... 1348603330
--
--

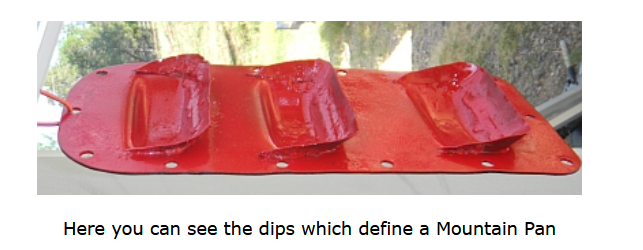

Here is an idea that might work for you http://www.mtfca.com/discus/messages/25 ... 1344572509
--
--
Here is an idea that might work for you http://www.mtfca.com/discus/messages/25 ... 1344572509
- Attachments
-
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: # 4 Rod dam 3 dip pan
Dan,

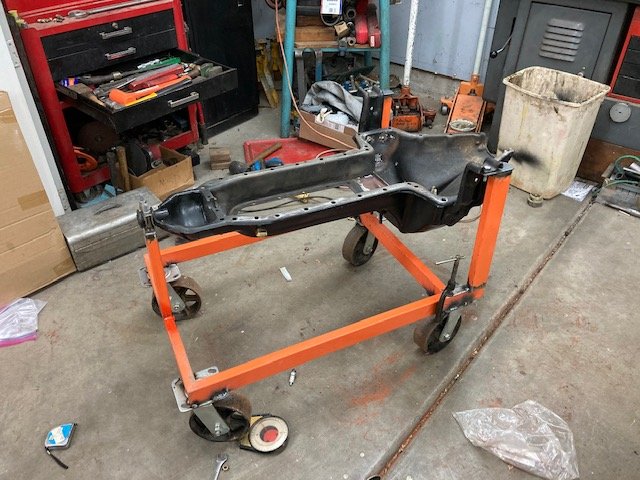

Dan Mceachern is right. I would never assemble a engine now, until it has had the pan on a jig. I have in the past but after having pans straightened on a jig there is no comparison to the piece of mind and ease that a jig provides. Welded on or not. Thanks Dan.
Craig.
Dan Mceachern is right. I would never assemble a engine now, until it has had the pan on a jig. I have in the past but after having pans straightened on a jig there is no comparison to the piece of mind and ease that a jig provides. Welded on or not. Thanks Dan.
Craig.
-
Henry K. Lee
- Posts: 5474
- Joined: Sun Jan 06, 2019 11:09 am
- First Name: Henry
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: Many
- Location: South Pittsburg, TN
- MTFCA Life Member: YES
Re: # 4 Rod dam 3 dip pan
I had some good photos Dan but I have deleted them..., Sorry.
Hank
Hank
-
Dan Hatch
Topic author - Posts: 5018
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: # 4 Rod dam 3 dip pan
Thanks back to the top
-
KWTownsend
- Posts: 1382
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: # 4 Rod dam 3 dip pan
Dan-
If you don't come up with one, I have a full size template for a pan dam. I can snail mail a copy to you when I get home next week.
Keith
If you don't come up with one, I have a full size template for a pan dam. I can snail mail a copy to you when I get home next week.
Keith
