I need any detail for a Model T door window lift actuator . I am trying find a work-around for a 1925 Essex that has a worm drive window lift actuator in a die cast or pot metal housing that has crumbled. I was told that a Model T ( do not know what year ) may have a similar lift actuator that might be adapted to the Essex. Any help or suggestions will be greatly appreciated.
Thanks
Door Window lift
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Bill Johnson
Topic author - Posts: 8
- Joined: Sat Mar 16, 2019 11:08 am
- First Name: Bill
- Last Name: Johnson
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe, 1926 Roadster, 1927 Fordor, 1914 Touring project
- Location: Texas
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Door Window lift

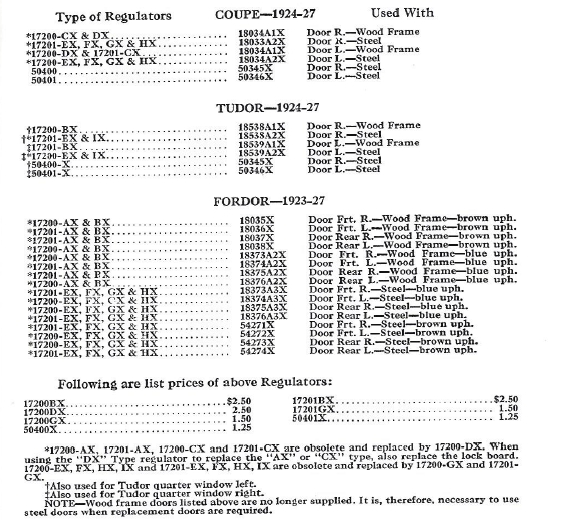

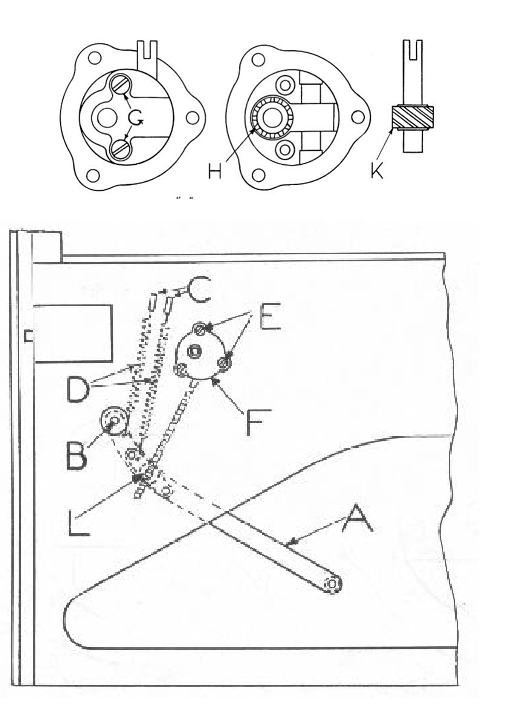

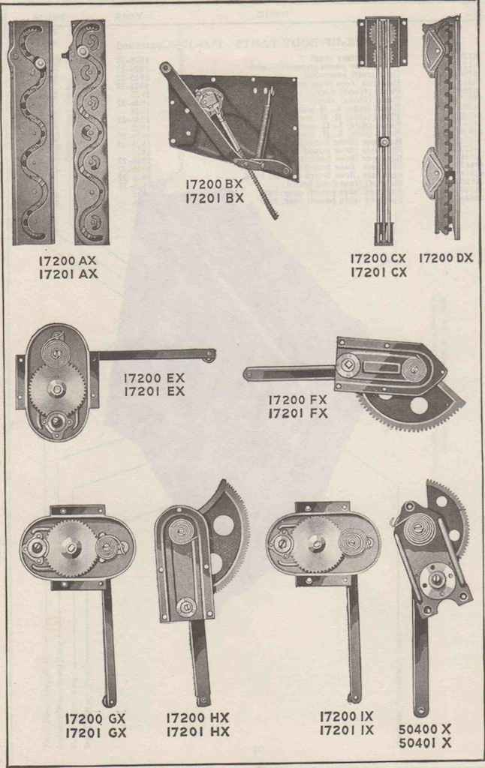

This may narrow it down - or exclude some.
Also check out this PDF for 1925 Essex http://hudsonterraplane.com/tech/1925/1 ... thru25.pdf
--Model T
Also check out this PDF for 1925 Essex http://hudsonterraplane.com/tech/1925/1 ... thru25.pdf
- Attachments
-
- lift act 2.png (251.55 KiB) Viewed 1464 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Bill Johnson
Topic author - Posts: 8
- Joined: Sat Mar 16, 2019 11:08 am
- First Name: Bill
- Last Name: Johnson
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe, 1926 Roadster, 1927 Fordor, 1914 Touring project
- Location: Texas
Re: Door Window lift
Thank you for the pictures . I will try to locate one of the T risers to see if I can adapt it.
Thanks again
Thanks again
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Door Window lift
The only T window riser that’s available from the vendors is the riser for the 26-27 T closed cars. It’s the only T riser that is being reproduced and the others are hard to find if you can even find one. Go to Lang’s T Ford parts and you can get a good look at one to see if it can work for you. Good luck!
-
Bill Johnson
Topic author - Posts: 8
- Joined: Sat Mar 16, 2019 11:08 am
- First Name: Bill
- Last Name: Johnson
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe, 1926 Roadster, 1927 Fordor, 1914 Touring project
- Location: Texas
Re: Door Window lift
Thank you for the tip.
Bill
