Front end Friday on Saturday

Post by Mountainrider » Sat May 07, 2022 5:20 pm

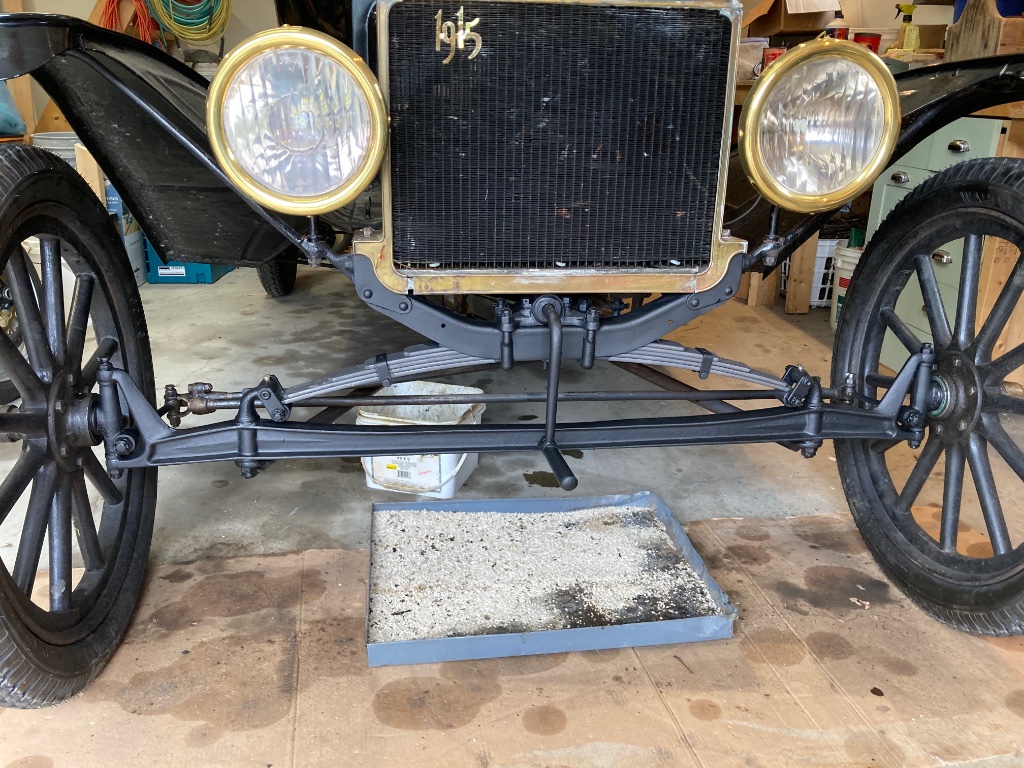

Removed the front springs this spring. Wired brushed, cleaned, and painted with slip plate. Cleaned up the spring perches, new sleeves, and painted. New bushings where needed. All reassembled today.

Last July
Attachments


Topic author
Mountainrider
Posts: 178
Joined: Sun Jan 06, 2019 4:23 pm
First Name: Neil
Last Name: Haywood
* REQUIRED* Type and Year of Model Ts owned: 1915 roadster
Location: Stockbridge, MA

Re: Front end Friday on Saturday

Post by Mountainrider » Sun May 08, 2022 4:12 pm

Finished adjusting the toe in and camber this mourning. Had to bend the axle just a little to get both side the same. Drive side 1 1/2” and passenger side 1 9/16”. Nice ride this afternoon. I’m very happy with the results.
