Wanted to buy.
Keith Billet
717-8.7.0-8.0.2.2
Kbillet@billet-industries.com
Wanted, original inside oil line with the large funnel
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Wanted, original inside oil line with the large funnel
I thought this info would be useful in a general discussion also.
Be warned, used funnel tubes typically have nicks & dents that can be places for traveling crud to make a clog. The tubing is rolled & has a seam running the length. I have rebuilt many motors. I dont recall having an original funnel good enough to reuse. Not to say you couldnt remove the dents with some rod & body work.
In my mind, a new unit is cheap insurance. The repop units I have been getting are good.
Be warned, used funnel tubes typically have nicks & dents that can be places for traveling crud to make a clog. The tubing is rolled & has a seam running the length. I have rebuilt many motors. I dont recall having an original funnel good enough to reuse. Not to say you couldnt remove the dents with some rod & body work.
In my mind, a new unit is cheap insurance. The repop units I have been getting are good.
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: Wanted, original inside oil line with the large funnel
Hi Keith,
I'm going to go out on a limb here and assume no one has them in stock? Johns correct many used are in pretty bad shape so a good one is not easy to part with.
Do you have the old small funnel oil line? If you do is it possible to fabricate a large funnel and braze it to the small one? You can even make it larger than the ford one but be sure to support it from two of the coil bolts so it will not vibrate. You can even install a screen to prevent clogging.
Craig.
I'm going to go out on a limb here and assume no one has them in stock? Johns correct many used are in pretty bad shape so a good one is not easy to part with.
Do you have the old small funnel oil line? If you do is it possible to fabricate a large funnel and braze it to the small one? You can even make it larger than the ford one but be sure to support it from two of the coil bolts so it will not vibrate. You can even install a screen to prevent clogging.
Craig.
-
John iaccino
- Posts: 818
- Joined: Mon Jan 07, 2019 5:25 am
- First Name: John
- Last Name: Iaccino
- * REQUIRED* Type and Year of Model Ts owned: 1911 Roadster, Open Runnabout
- Location: Rhinebeck, NY
Re: Wanted, original inside oil line with the large funnel

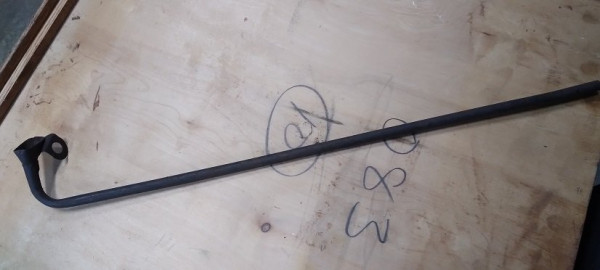

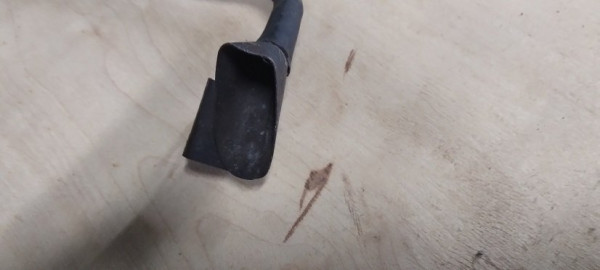

Keith, I have an original inside oil line, but don't know if it has a large funnel or not. I don't have another to compare it to. It looks to be in nice shape.
- Attachments
-
-
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Wanted, original inside oil line with the large funnel
That funnel is the earlier funnel Ford used till around 1923 or maybe a little earlier.
The later funnel has a longer “scoop” to catch a little more oil. The repos that are made are really pretty good. I used one in my 21 Touring rebuild.
Snyder’s has the later inside oli line
https://www.snydersantiqueauto.com/sear ... l+oil+line
The later funnel has a longer “scoop” to catch a little more oil. The repos that are made are really pretty good. I used one in my 21 Touring rebuild.
Snyder’s has the later inside oli line
https://www.snydersantiqueauto.com/sear ... l+oil+line
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Wanted, original inside oil line with the large funnel
If a new funnel is cheap insurance, I would urge you to take out additional Insurance. Clean off the silver paint at the junction between the funnel and the tube, and make a better bronze weld attachment between the two components. Fortunately, I discovered the necessity for this before the engine was completely assembled.
Allan from down under.
Allan from down under.
-
Kbillet
Topic author - Posts: 58
- Joined: Fri Jan 18, 2019 10:49 am
- First Name: Keith
- Last Name: Billet
- Location: Pennsylvania
Re: Wanted, original inside oil line with the large funnel
Found on this site
Keith Billet
Keith Billet
