Breeze Carburetor

Post by jaybee47 » Sun Jun 05, 2022 9:45 pm

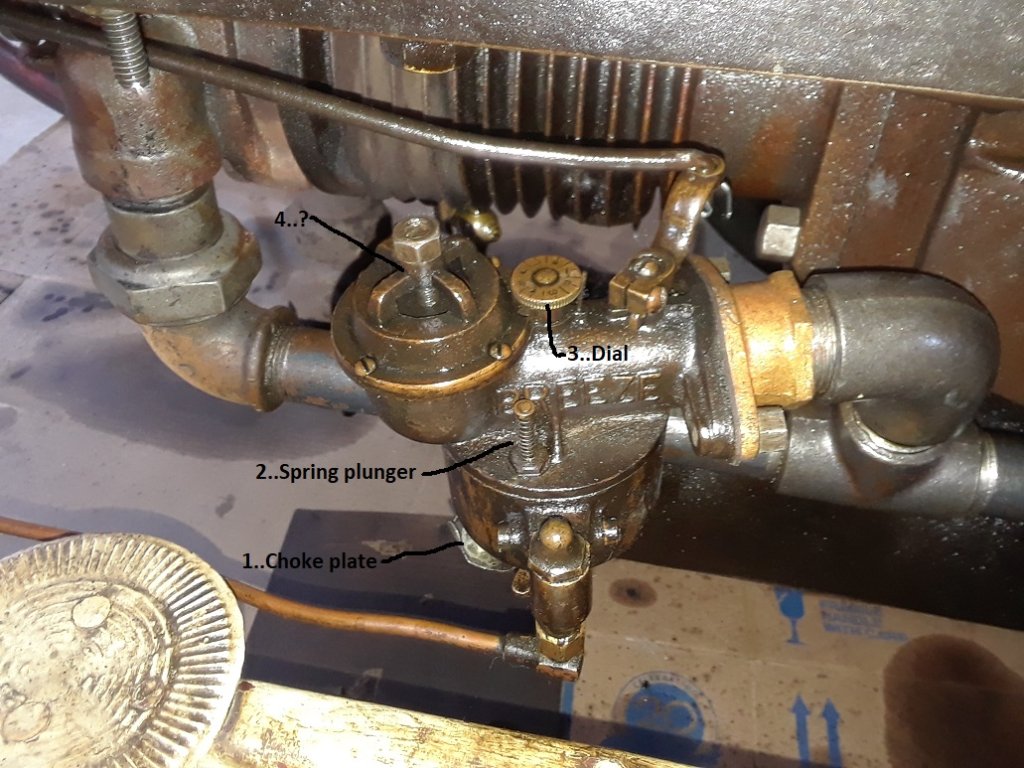

Would appreciate any help and information regarding this carburetor.
1) Choke plate?....located under intake mouth, one side is solid, other side is open, can be swung side to side....is this the choke?
2) Plunger that is spring loaded....what does this do?
3) Dial, can be rotated clockwise and counterclockwise, does this control the fuel/air mixture?
3) Dial, is clockwise lean, is counterclockwise rich?
4) What is this and what does it do?
Breeze carburetor,a.jpeg
Top
User avatar

Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Breeze Carburetor

Post by Henry K. Lee » Sun Jun 05, 2022 9:53 pm

Hey Jay,

#2 is a flooding push down on the float to give more wet fuel for starting.

#3 is a fuel mixture.

#4 is a poppet valve, some were used for a throttle but since you have one seen close to the intake mount, they used this as an anti-backfire.

Hope this Helps,

Hank
Top

Dan McEachern
Posts: 1402
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Breeze Carburetor

Post by Dan McEachern » Mon Jun 06, 2022 3:29 am

Jay- I have a manual. PM me your e-mail address and I will forward a copy. Most common on model 20 Hupmobiles- what is this one on?
Top
User avatar

John E. Guitar
Posts: 518
Joined: Sun Jan 06, 2019 2:52 pm
First Name: John
Last Name: Guitar
* REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1924 Tourer
Location: Ulladulla
Board Member Since: 2012

Re: Breeze Carburetor

Post by John E. Guitar » Mon Jun 06, 2022 5:43 am

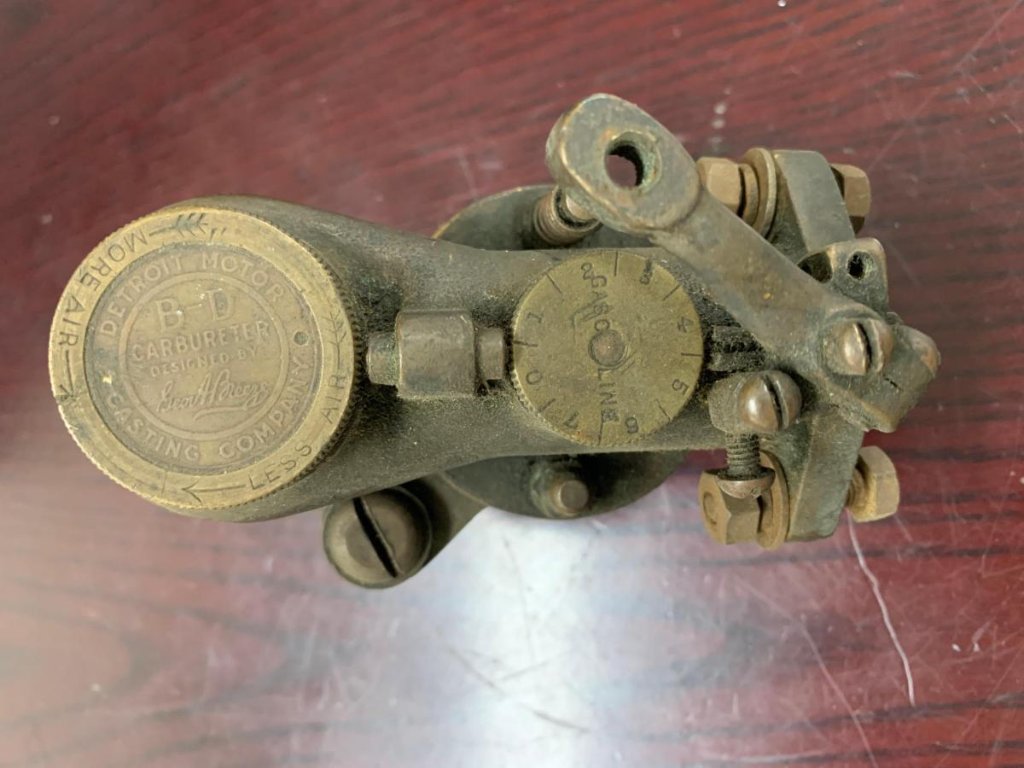

This article goves some information. I picked up one of the horizontal ones a few years ago but I've got no idea what it's from.



Top
User avatar

Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Breeze Carburetor

Post by Henry K. Lee » Mon Jun 06, 2022 6:15 am

I believe John has you covered Jay!

Hank
Top

Topic author
jaybee47
Posts: 335
Joined: Mon Jan 07, 2019 8:40 pm
First Name: jay
Last Name: bolante
* REQUIRED* Type and Year of Model Ts owned: 1922 Runabout
Location: columbia city indiana
Board Member Since: 2015

Re: Breeze Carburetor

Post by jaybee47 » Tue Jun 07, 2022 11:13 am

Many thanks to all for the help and education. :D :D
