question about mtfca inspection sheet requirements

Post by tdump » Tue Jan 08, 2019 7:52 pm

I went over my T pickup today with the inspection sheet from Mtfca that the club handed out at last years Christmas party, and I found a couple things I want to ask about.
1, the hand brake lever mounting bolts. Best I can tell the inspection sheet wants to see cotter pins or lock washers.
I currently have nylon lock nuts. Same situation with the bolts holding the steering bracket to the chassis. Do I need to change to lock washers or cotter pins or are the nylon lock nuts suitable?
I discovered I will need to change the bolts that hold the oil pan ears to the chassis so unless I learn otherwise I will use lock washers there.
Oil pan bolts. I have no idea why i didn't put cotter pins or something on those bolts when I put it togther.But i didn't . They were and are still tight but I started putting lock washers on those bolts 1 by 1 today.Ran out of washers.
If you can't help em, don't hinder em'

User avatar

Steve Jelf
Posts: 2926
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: question about mtfca inspection sheet requirements

Post by Steve Jelf » Tue Jan 08, 2019 11:13 pm

I don't know about the nylon nuts, but lock washers on the oil pan are OK if it's not a show car. Use castle nuts and cotter pins on the pan arms and blocks. Those aren't supposed to be tight enough for lock washers.
The inevitable often happens.
1915 Runabout
1923 Touring


Scott_Conger
Posts: 2716
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: question about mtfca inspection sheet requirements

Post by Scott_Conger » Tue Jan 08, 2019 11:31 pm

Mack

interestingly, the only place I have Nyloc Nuts is the brake quadrant, like you. They are mated with button head hex screws and look very much like rivets from the outside of the frame. Your Nyloc nuts are every bit as good as a lock washer or cottered castle nut. I like everything "correct" to the extent that it is reasonably possible, but the idea of reriveting these parts with the car assembled did not appeal to me in the slightest. Additionally, the safety sheet is "good practice" but by no means a mandate for use in club functions. If it were, 1/2 of the cars on any organized tour would have to stay on or in the trailer. And, there are always a very small number of cars on large tours which simply should not be driven, period, and yet they are. Those are the folks who will proclaim "No one's gonna tell me what to do, I've been drivin' these things for years this way!" Ask me sometime, what a T does right before a rear wheel falls off. I've watched it from behind and it will make you sick. You are to be commended for asking and trying to make things right.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
tdump
Posts: 614
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
Location: North Carolina

Re: question about mtfca inspection sheet requirements

Post by tdump » Wed Jan 09, 2019 12:05 am

Thanks for the help.
Due to the fact my pickup is a assembled vehical and was not a original,I have personaly felt of and worked over in some way every single peice on it.I started on it 16 years ago roughly and just got the rear fenders on it over the weekend and the floor boards around the pedals today. Close to done. But I don't want folks thinking,"well it is a bunch of junk parts thrown together,I better steer clear of him,". I want it to be safe and reliable as possiable if for no other reason than I want to enjoy driving it,not riding shot gun in a roll back and it on the back tossing around.
I will work on those ear bolts tommorow.
If you can't help em, don't hinder em'


Topic author
tdump
Posts: 614
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
Location: North Carolina

Re: question about mtfca inspection sheet requirements

Post by tdump » Thu Jan 10, 2019 9:23 am

Note to self,never leave something for "later" You will regret it.I struggled for a good while putting lock washers on the oil pan bolts and finally got it.
once I get the pan ear bolts took care of I should have the safety sheet purty well covered except for the lock nuts on the brake control.Best I can remember I used a metric bolt there because it fit the hole tight instead of kinda loose like a 5/16ths bolt ,but that has been a LONG time for my feeble mind to be sure.
Steering is bolted to the chassis with lock washers.So that should be ok.
I went over the steering and such 3 times and best I can tell, I ddin't skimp nothing there.I remember very well thinking how hard it would be putting cotter pins on all those oil pan bolts and I just kept thinking, "do it later"
DON"T do that folks,DO it right then.! Don't wait till the parts are buried under the body and decide to go over it 1 last time!
:roll:
If you can't help em, don't hinder em'

User avatar

DanTreace
Posts: 1492
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: question about mtfca inspection sheet requirements

Post by DanTreace » Thu Jan 10, 2019 10:09 am

The 'self-inspection' for safety with the Inspection Guidelines is great for pre-tour activity. Be sure to do all the check list.
Below is a copy of the first section.

As your eyes are looking it over, never hurts to have other eyes too ;) You can miss stuff!

Ball arm (pitman arm) to steering gear
connecting rod (drag link)
_____ Steering gear connecting rod (tie rod) to
yoke ball
_____ Grease in steering gear case and steering
gear bracket (also check gear post and
pinion gears for wear)
_____ Spindle bolts (king pins)
_____ Spindle connecting rod bolts

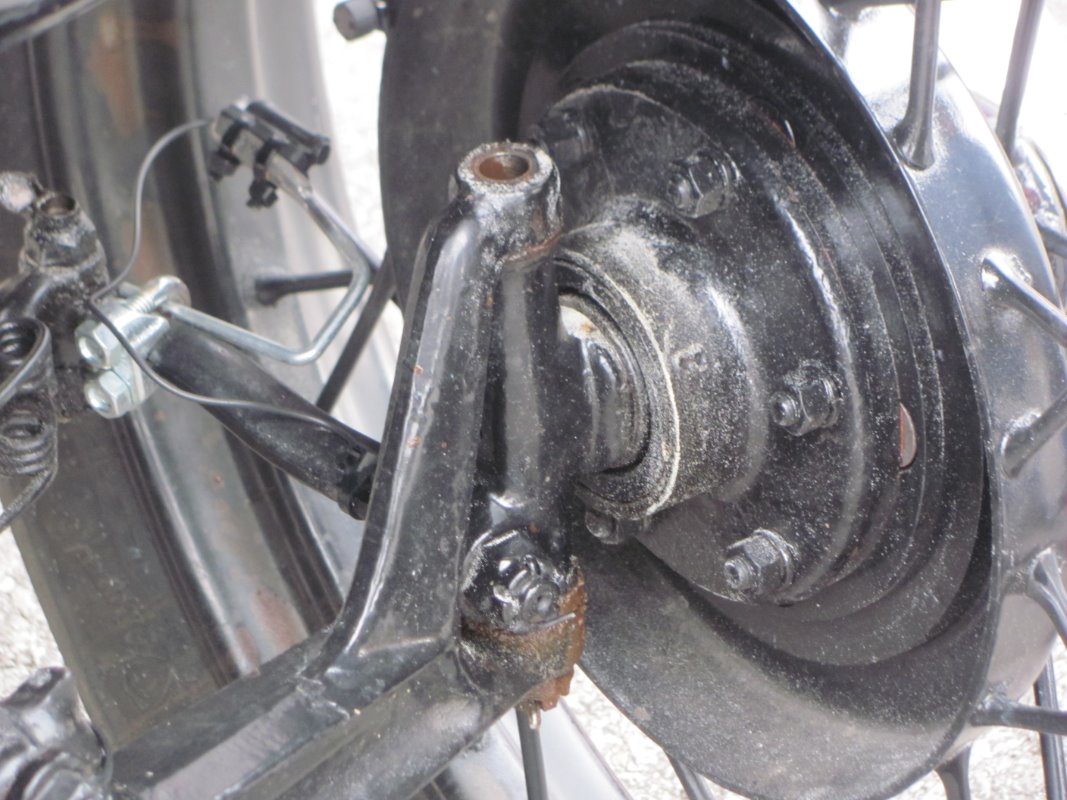

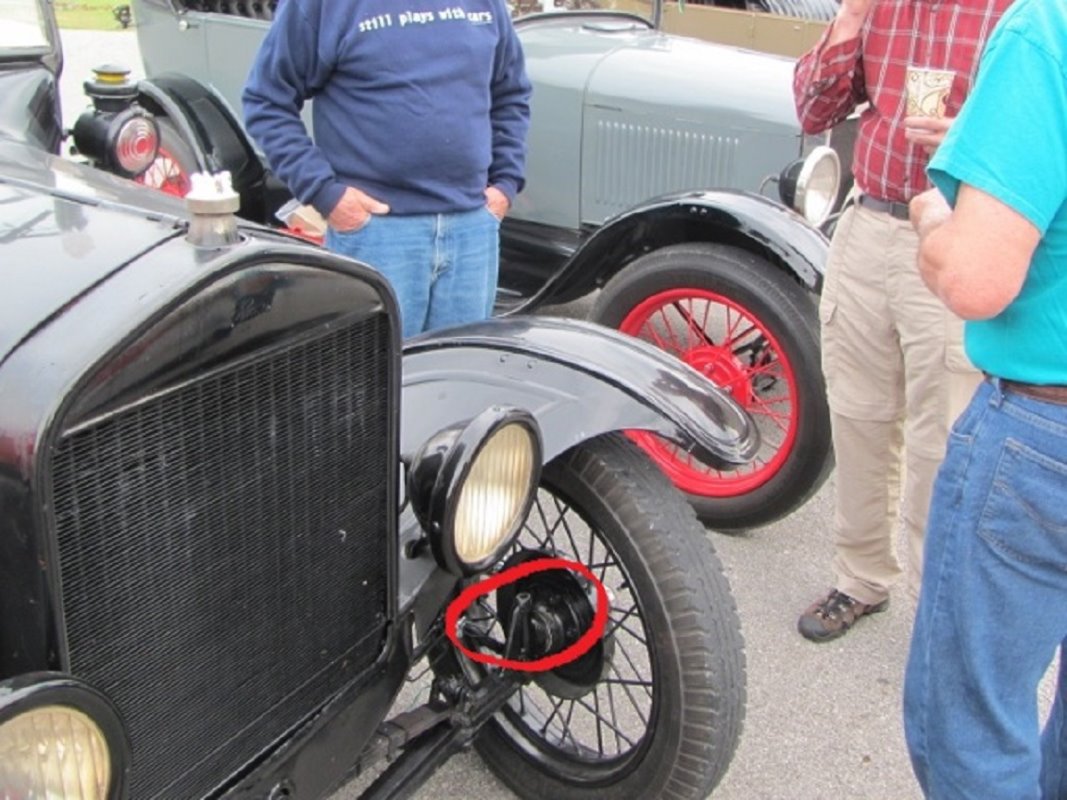

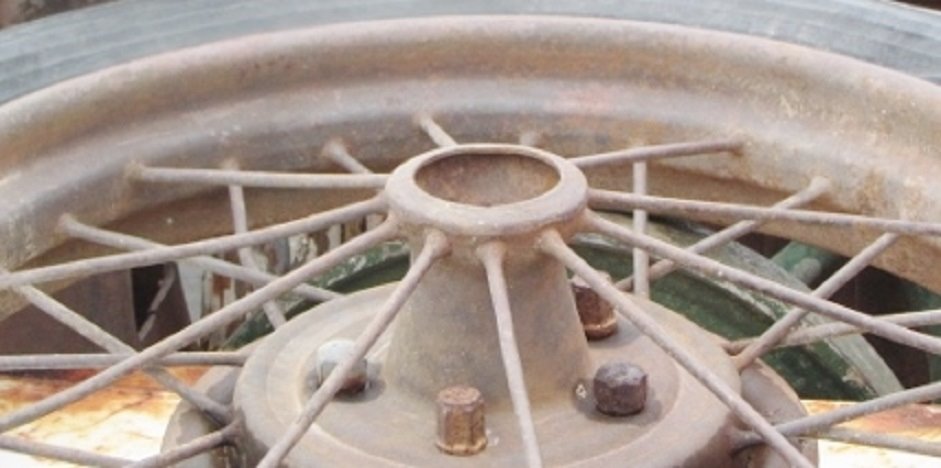

On a recent tour I parked next to this T that had adapters made to fit wire wheels to wood hubs, as I was casually looking over it, :shock: spied this event.
IMG_2219 (640x480).jpg
Told the owner, and he and friend got fast on the repair. :) :)
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Rich Bingham
Posts: 1266
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: question about mtfca inspection sheet requirements

Post by Rich Bingham » Thu Jan 10, 2019 11:24 am

Dan, I reckon I'm a little blind, not sure exactly what the photo shows. An explanation of what we're looking at would be helpful. And, good on you for helping out !! We are our brothers' keepers !😇
"Get a horse !"

User avatar

CudaMan
Posts: 942
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667
Board Member Since: 2013

Re: question about mtfca inspection sheet requirements

Post by CudaMan » Thu Jan 10, 2019 11:26 am

Sheared spindle bolt. :)
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)

User avatar

pdgriesse
Posts: 40
Joined: Sun Jan 06, 2019 11:59 am
First Name: Paul
Last Name: Griesse
Location: Granville Ohio
MTFCI Number: 19738

Re: question about mtfca inspection sheet requirements

Post by pdgriesse » Thu Jan 10, 2019 11:52 am

Don`t confuse INSPECTION SHEET guidelines with JUDGING SHEET guidelines. Always OK to improve any items (like Nylock nuts) to assure good performance for driving/touring-----even if they might violate JUDGING SHEET guidelines........The INSPECTION SHEET guidelines have one purpose--to insure safety. The JUDGING SHEET guidelines to insure correctness! Paul

User avatar

DanTreace
Posts: 1492
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: question about mtfca inspection sheet requirements

Post by DanTreace » Thu Jan 10, 2019 12:48 pm

Rich

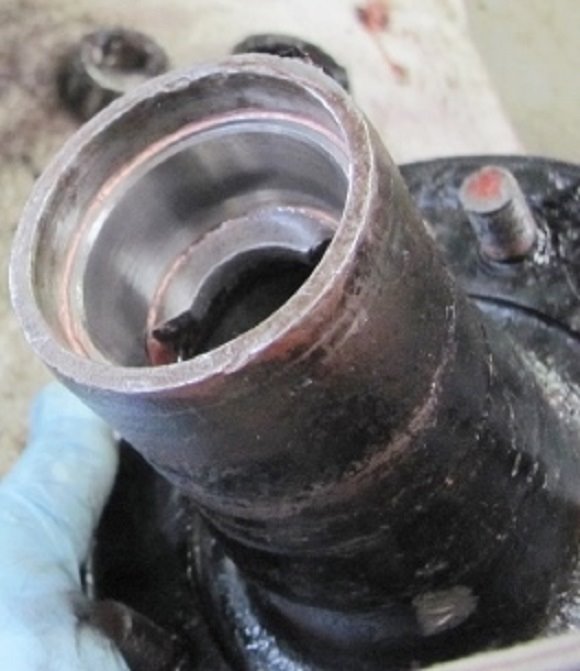

Yes, that was a sheared off spindle bolt, the upper part was gone. The spindle body held by just the lower part of the bolt.
