I’m trying to put AC brakes on my 24 Model T. It has an adapter so Model A wheels fit. My question is how do I pull this hub.
Photo attached.
George
Elkhorn, Nebraska
How to remove rear hub
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Unprr
Topic author - Posts: 286
- Joined: Mon Jan 07, 2019 9:20 pm
- First Name: George
- Last Name: Schmidt
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe, 1924 Model T pickup
- Location: Elkhorn

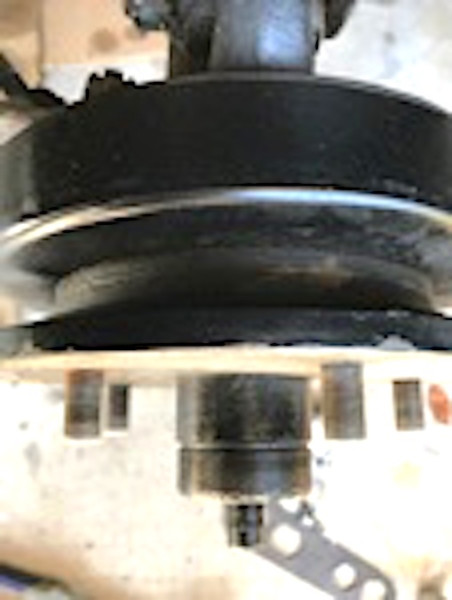

How to remove rear hub
- Attachments
-
- 7FCEC5EA-E4FC-4D25-BCF7-50998A25CE78.jpeg (10.35 KiB) Viewed 1072 times
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: How to remove rear hub
That may be an issue. Seems the new hub has a narrow groove, too small to grab with a jawed puller. Maybe you can find a big jawed puller that could wrap its arms around the plate between the drum. Or......?
Increased the size of your photo to show bit more.

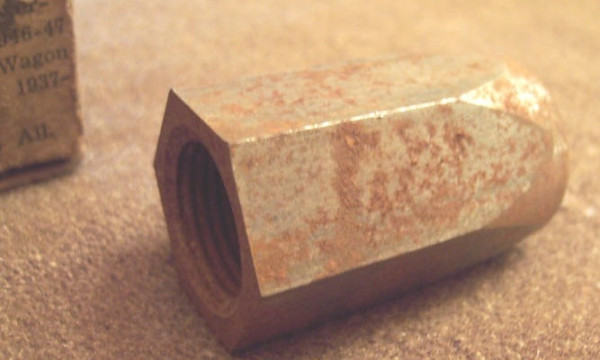

I would first try a 'knock off' puller, thread it onto the stub of the axle shaft. Strike it really hard with a 2.5 - 5 lbs mallet. Should shock the new adapter and hub off the tapered axle shaft.
Increased the size of your photo to show bit more.
I would first try a 'knock off' puller, thread it onto the stub of the axle shaft. Strike it really hard with a 2.5 - 5 lbs mallet. Should shock the new adapter and hub off the tapered axle shaft.

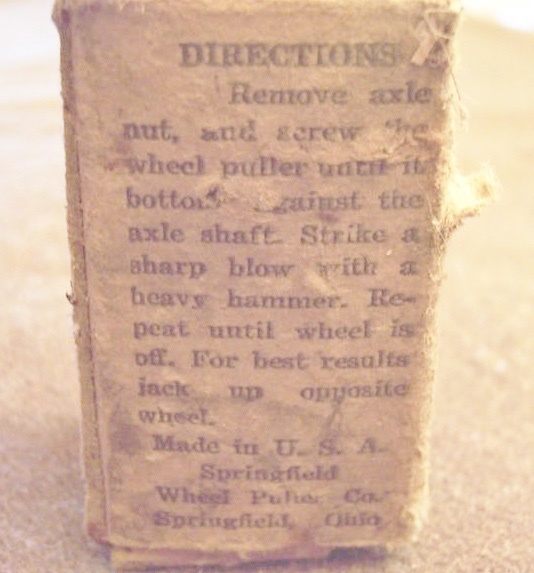

- Wheel puller instructions - Copy.jpg (114.18 KiB) Viewed 1048 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: How to remove rear hub
Isnt it an adapted wood wheel hub? Threads still in tact? Normal wood wheel puller.
There is a type puller for v-8? that has 3 fingers that pick up studs & presses on the axle stub 9461211108033884777721
350565372576 Ebay #. as an example. I couldnt get the picture to attach
There is a type puller for v-8? that has 3 fingers that pick up studs & presses on the axle stub 9461211108033884777721
350565372576 Ebay #. as an example. I couldnt get the picture to attach
