In an previous topic, Jim Patrick pointed out there has been problems with new body blocks not fitting on 1926/1927 coupes. I have found that to be the case for my 1927. There is several problems with the repops, thickness and depth etc. The specifics of the problems were well covered in Jim's information.

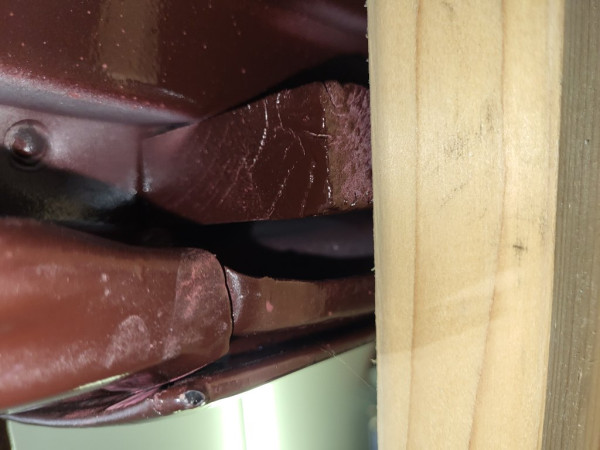

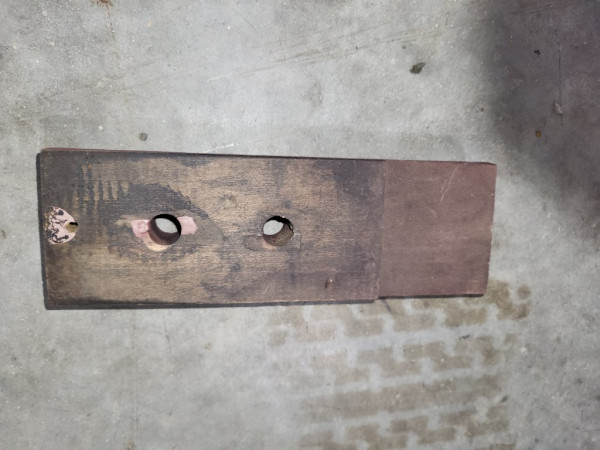

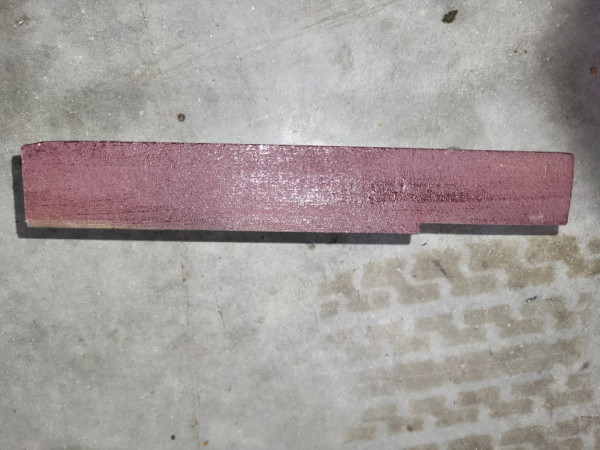

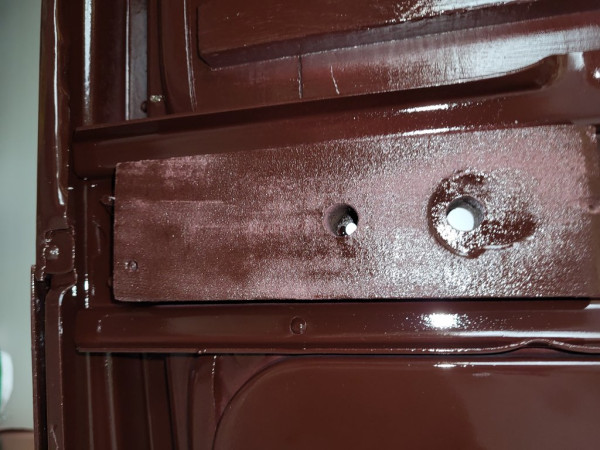

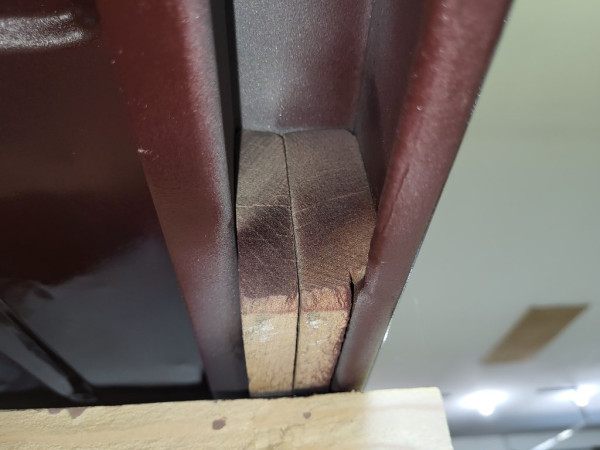

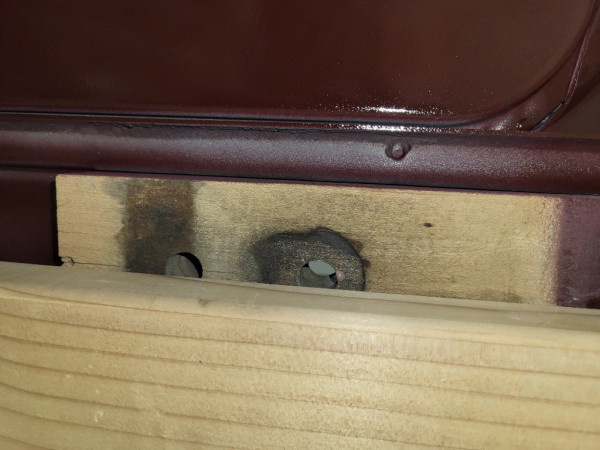

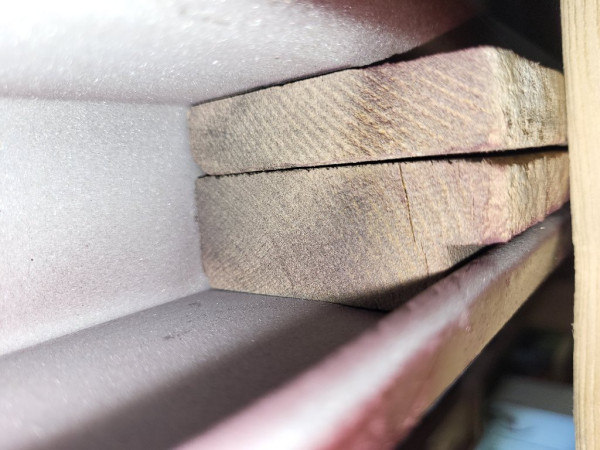

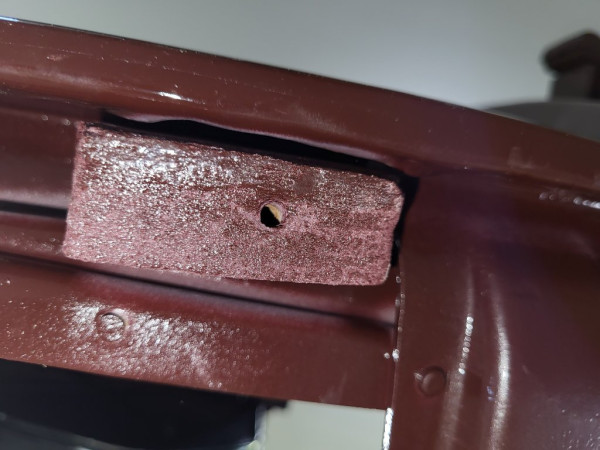

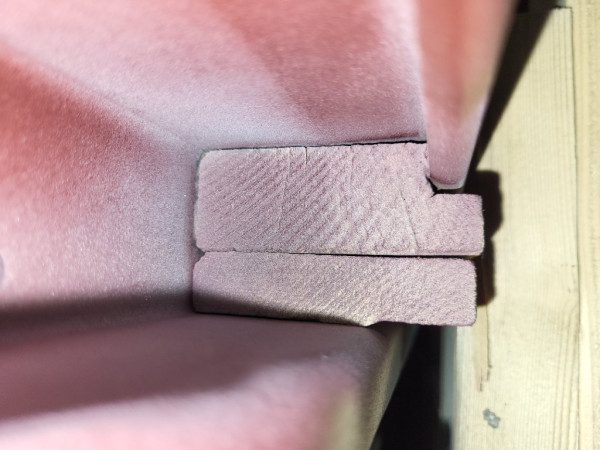

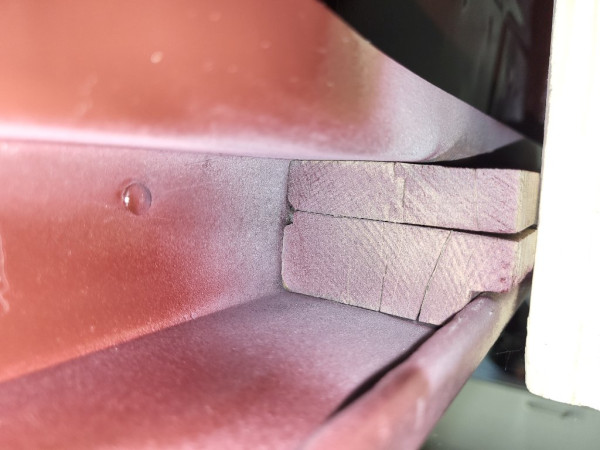

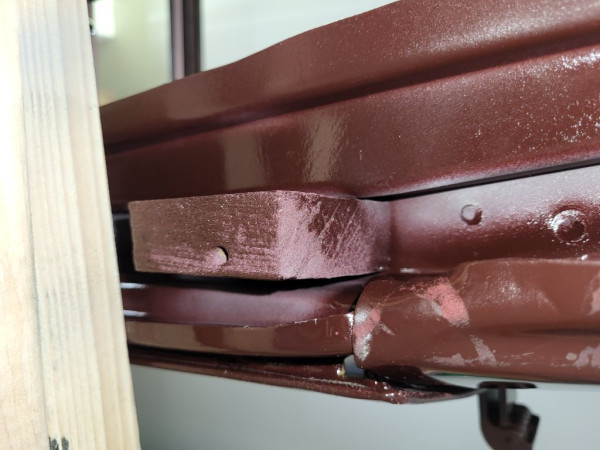

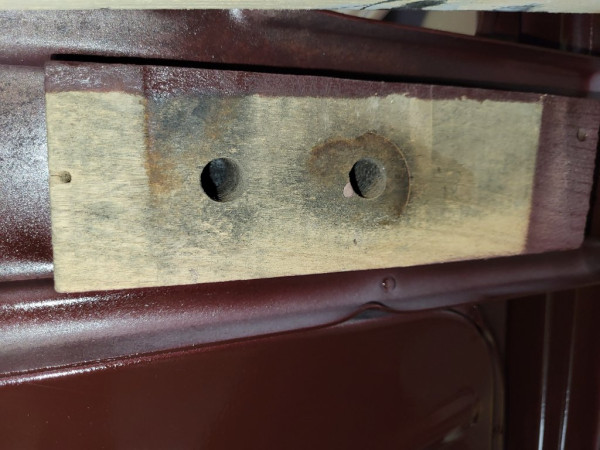

I could fix the problems by planing and cutting, but I am considering reusing my original blocks. They are shown in the attached photos. I am probably going over board in the number of photos, but oh well ---!
Comments!!
New Body Blocks Don't Fit
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BLB27
Topic author - Posts: 892
- Joined: Thu Jul 23, 2020 9:28 pm
- First Name: Bruce
- Last Name: Brakke
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe
- Location: Ames, Iowa
New Body Blocks Don't Fit
- Attachments
-
-
-
-
-
-
jiminbartow
- Posts: 2433
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: New Body Blocks Don't Fit
Based on the beautiful original condition of your T, I would wager your car has never been exposed to the elements and that your original blocks are still hard and in perfect condition. I would reuse them since you already know they will fit. Jim Patrick
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: New Body Blocks Don't Fit
Get the blocks dry as dry as you can before installing. Be sure the bolts and nuts are clean and that the nuts can be run on the full length of the bolt thread by hand. The bolts/nuts need to be tight, but not so tight that the sheet metal of the body is distorted. After the car is assembled and run a at least a few dozen miles, you will probably need to go over all the body bolts/nuts and tighten them just a little to be sure they're still snug. The body needs to be held firmly to the frame, but not locked down tight, since the frame will flex when the car is in use. After retightening the bolts, install cotter pins, if any. Others may know if some kind of preservative, if any, might be beneficial for the wood. If so, apply it with the wood dry and before you install it, and cover all surfaces and inside the bolt holes.
Last edited by TXGOAT2 on Tue Aug 02, 2022 9:46 pm, edited 1 time in total.
-
jiminbartow
- Posts: 2433
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: New Body Blocks Don't Fit
Those blocks look fantastic! Should last another 96 years.
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: New Body Blocks Don't Fit
I made my own blocks. I believe I found the dimensions on the forum.
The inevitable often happens.
