Stewart Model 100 odometer
I'm working on this speedometer for my 1915. I have a couple of questions about the odometer and the entire unit.

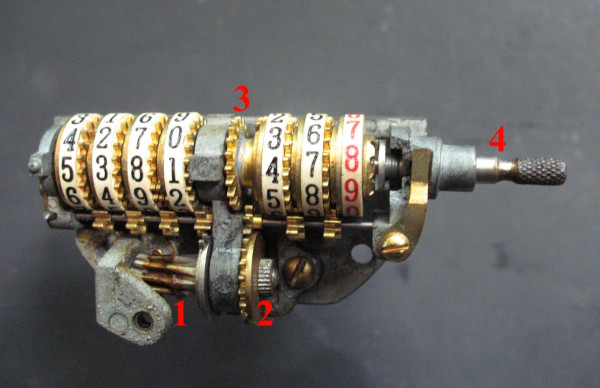

A worm gear (1) turns the big drive gear (2). The trip odometer control (4) is pulled out, engaging the trip odometer main gear (3). In this mode the control is disengaged and does nothing, while the trip odometer is in gear and operates along with the main odometer which shows total miles. When 5384 turns to 5385, 50 will turn to 51.

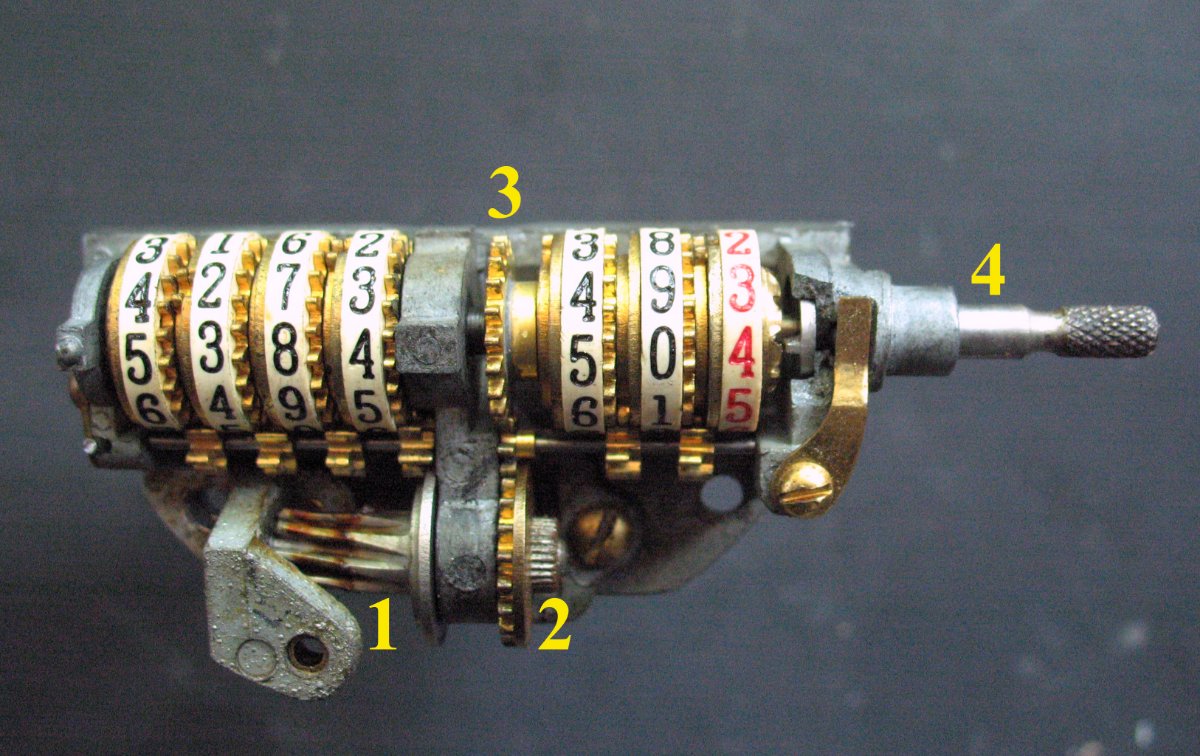

Here the trip odometer control (4) is pushed in disengaging the trip odometer main gear (3). In this mode the trip odometer does not operate. By pushing in and turning the control, you can run through the remaining 52.2 miles back to 0. There is no instant reset to 0; you have to run through the numbers.
1 Do I have all that right?
2 Should the main shaft driving the whole works (speedometer and odometer together) turn easily by thumb and finger, with no resistance?
A worm gear (1) turns the big drive gear (2). The trip odometer control (4) is pulled out, engaging the trip odometer main gear (3). In this mode the control is disengaged and does nothing, while the trip odometer is in gear and operates along with the main odometer which shows total miles. When 5384 turns to 5385, 50 will turn to 51.
Here the trip odometer control (4) is pushed in disengaging the trip odometer main gear (3). In this mode the trip odometer does not operate. By pushing in and turning the control, you can run through the remaining 52.2 miles back to 0. There is no instant reset to 0; you have to run through the numbers.
1 Do I have all that right?
2 Should the main shaft driving the whole works (speedometer and odometer together) turn easily by thumb and finger, with no resistance?
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Stewart Model 100 odometer
Why not contact Russ Furstnow? He works on those all the time!
-
Steve Jelf
Topic author - Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Stewart Model 100 odometer
I did that this morning. Waiting for a reply.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Stewart Model 100 odometer

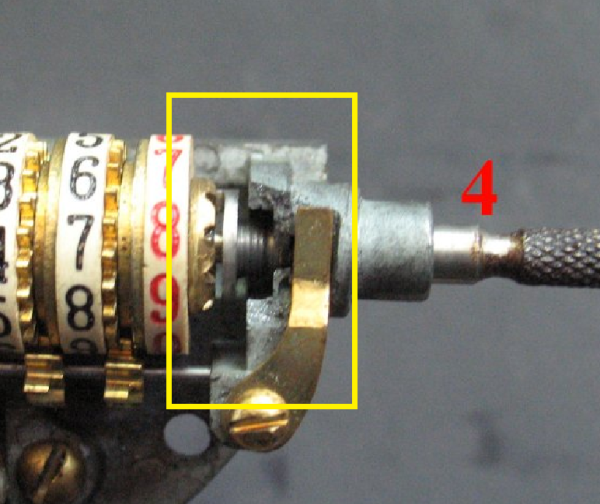

Is or will this be a problem? JBweld fix?
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
rickd
- Posts: 474
- Joined: Sun Jan 06, 2019 12:56 pm
- First Name: Rick
- Last Name: Duquette
- * REQUIRED* Type and Year of Model Ts owned: 1913 Touring, 1914 Touring, 1925 Touring, 1927 PU, 1955 T Bird, 69 Shelby GT 350
- Location: Grand Forks, ND
- Board Member Since: 2015
Re: Stewart Model 100 odometer

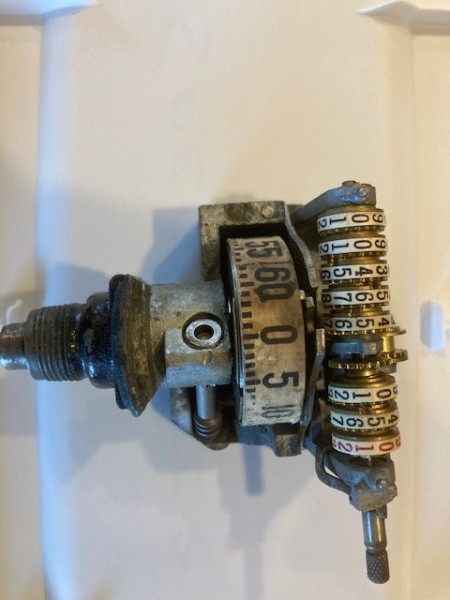

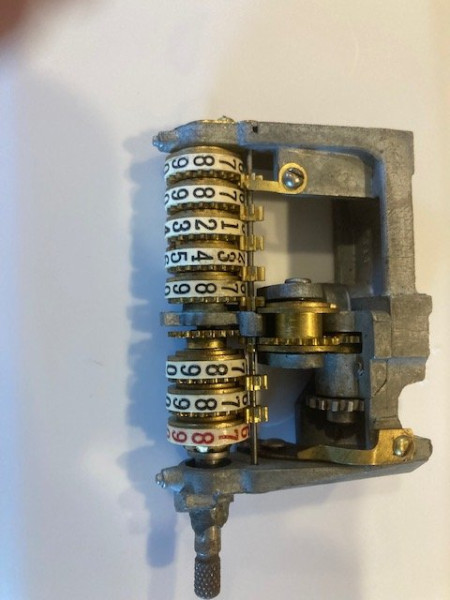

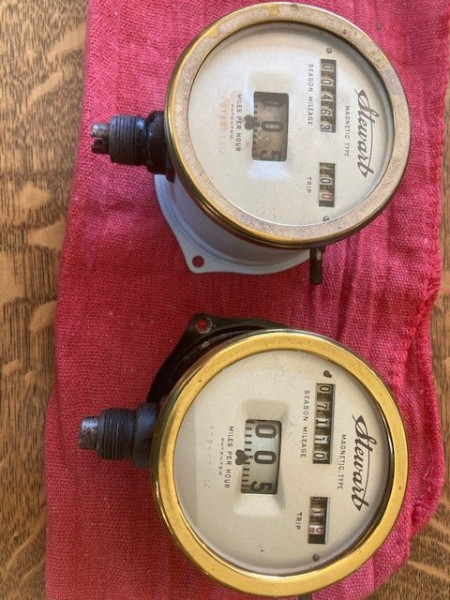

Steve, I'm no Russ F. but I put together two Stewarts for my 14. Yet to install but they work on a drill attachment. My trip meter does the same thing as yours when resetting it, and yes all of the geared parts turn easily with little resistance when the main shaft is engaged. So I think you are on the right track. I went through a lot of speedos to find the other main frame section with the worm gears that weren't broken. The pot metal parts are pretty delicate. Pics of the speedos and the parts from one of them.
-
Steve Jelf
Topic author - Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Stewart Model 100 odometer
Is or will this be a problem?
I think Dude Lester's observation applies here: "It don't hurt the runnin' of it none."
The gears and dials all seem to function correctly. I don't think there's enough missing to let the control shaft wander.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Russ_Furstnow
- Posts: 370
- Joined: Tue Jan 08, 2019 9:01 am
- First Name: Russ
- Last Name: Furstnow
- * REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
- Location: Flagstaff, AZ
- MTFCA Life Member: YES
Re: Stewart Model 100 odometer
Steve, I don't have any messages from you. Your odometer look fine. If you use this odometer, the part that is broken off will affect the way the dial face sits on the speedometer frame. The little tit on the odometer goes into the hole on the dial face to keep the dial face in place. The rest of the odometer looks fine. Russ Furstnow
