Drive rivets Ruckstell rear name plate

Post by Boss69 » Mon Sep 05, 2022 10:06 am

Trying to install the name plate on my Ruckstell Rear.
Name plate came with solid brass drive rivets.
Holes in the housing seem to small for the rivets.
Any suggestions. Special tool needed ??

Thanks,

Paul
Top

RGould1910
Posts: 1128
Joined: Tue Jan 22, 2019 8:16 am
First Name: Richard
Last Name: Gould
* REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
Location: Folsom, CA

Re: Drive rivets Ruckstell rear name plate

Post by RGould1910 » Mon Sep 05, 2022 9:39 pm

I purchased some from McMaster Carr that worked fine
Top
User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Drive rivets Ruckstell rear name plate

Post by RajoRacer » Mon Sep 05, 2022 10:49 pm

I've run into this before - measure the beginning shank diameter of the new drive rivet & drill the housing out the same. Double check that both holes in the tag will align with the housing. I smear a little black RTV into the hole prior to setting the rivet.
Top
User avatar

CudaMan
Posts: 2531
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
* REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
Location: Hillsboro, MO
Board Member Since: 2013

Re: Drive rivets Ruckstell rear name plate

Post by CudaMan » Tue Sep 06, 2022 7:50 am

I encountered the same thing on my Ruckstell and did what Steve did, drilled out the holes a bit and installed the vendor supplied rivets with some RTV sealer for insurance.

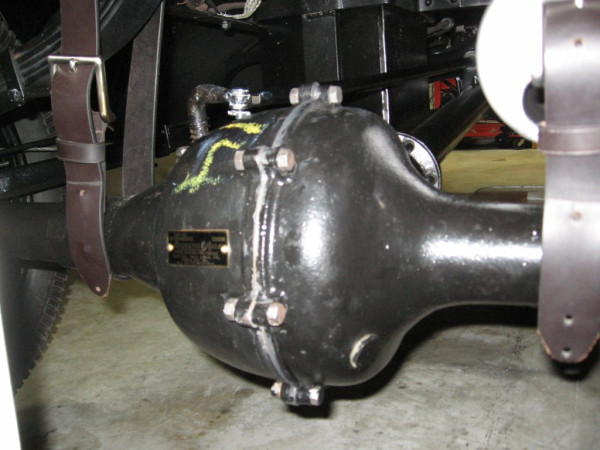

Those leather belts in the pic are rebound straps. :)
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Top

Topic author
Boss69
Posts: 4
Joined: Wed Feb 06, 2019 8:43 am
First Name: Paul
Last Name: Houben
* REQUIRED* Type and Year of Model Ts owned: 1
Location: USA
Board Member Since: 2012

Re: Drive rivets Ruckstell rear name plate

Post by Boss69 » Tue Sep 06, 2022 10:29 am

Thanks to all for the replies.
Drilling worked perfectly!!

Paul.
Top

Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Drive rivets Ruckstell rear name plate

Post by Original Smith » Thu Sep 08, 2022 12:23 am

If they aren't a bit bigger, what's going to hold them in?
