Speedo setting up

Post by Allan » Tue Apr 23, 2019 11:49 pm

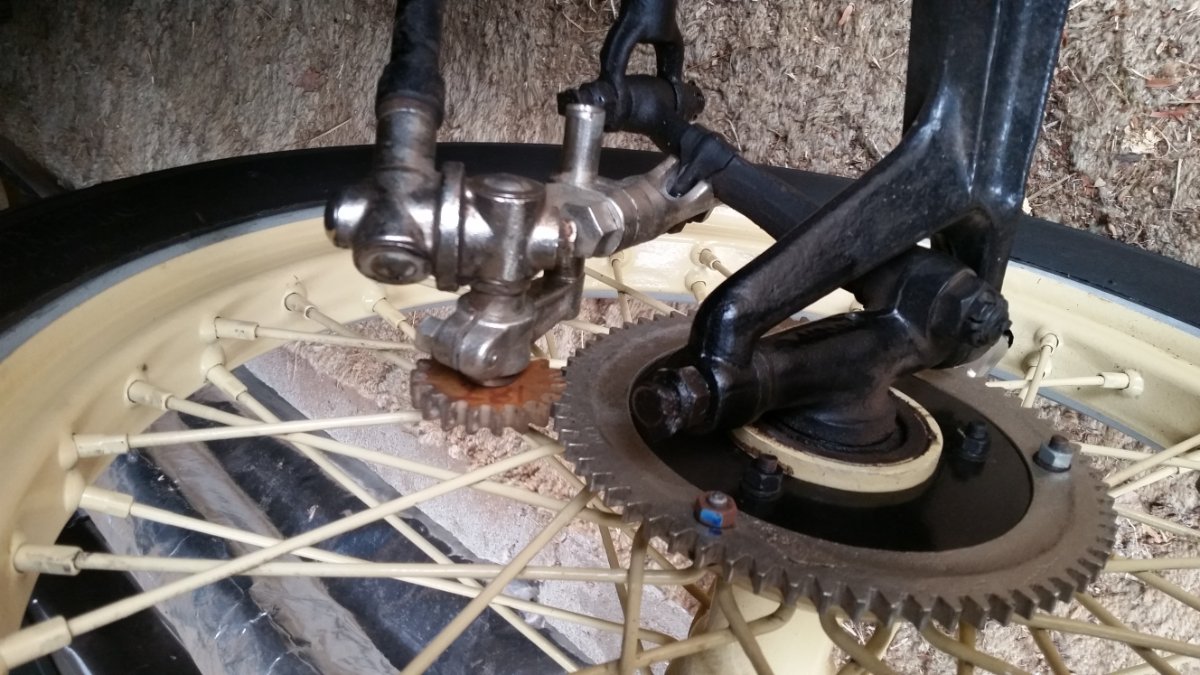

I have a working Corbin speedo on my 1925 roadster. I even had the swivel assembly nickel plated as they were when new.
However, at a steady 35 mph on the dial, I was doing a GPS verified 38 mph. Currently it is fitted with a 68 tooth road gear and 18 tooth fibre gear. I can change the fibre gear. How much closer to an accurate indication would a 17 tooth fibre gear would I get?

Allan from down under.


rodelljunior
Posts: 27
Joined: Thu Jan 17, 2019 6:55 pm
First Name: James
Last Name: Rodell
Location: Kewaskum
MTFCA Number: 14035
MTFCI Number: 13594

Re: Speedo setting up

Post by rodelljunior » Tue Apr 23, 2019 11:57 pm

I don't have speedometer experience, but it makes sense that the small gear would turn 1/18th faster with one less tooth, which would give you about 2 mph higher reading at 35 mph, which would be closer to your GPS reading of 38 mph.


Adam
Posts: 619
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
Location: Wisconsin
MTFCA Number: 23809
MTFCI Number: 1
Board Member Since: 2000

Re: Speedo setting up

Post by Adam » Wed Apr 24, 2019 9:45 am

What size tire do you have? A slightly oversize tire might be the issue. Using the next smaller gear like Jim recommends makes sense.

User avatar

Corey Walker
Posts: 210
Joined: Sun Jan 06, 2019 11:46 am
First Name: Corey
Last Name: Walker
Location: Brownsboro, TX

Re: Speedo setting up

Post by Corey Walker » Wed Apr 24, 2019 6:46 pm

The speedometer on my 14 reads fast as well. It has the correct gearing for a Stewart Model 100. If you put a different gear to make the chain spin slower then it seems like it would mess up the odometer reading, or at least in my case I think the problem is with the speedometer head. The mileage checks out good, which is determined by the gearing whereas the speed indicator is determined by the magnet rotating in the speed drum. I thought about turning the dial with numbers backwards one revolution against the stop to put more pressure on the spring that makes it return to zero. I’m not sure if that would work or not. I put the speedometer on mainly for the odometer.
Corey Walker, Brownsboro, Texas
