license plate
I found a license plate for my 1916 Touring that I would like to mount on the front of the car. being there is no bumper, what is the best way to mount it?
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: license plate
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
A Whiteman
- Posts: 1125
- Joined: Sun Jan 06, 2019 3:36 pm
- First Name: Adrian
- Last Name: Whiteman
- * REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
- Location: South Island, New Zealand
Re: license plate

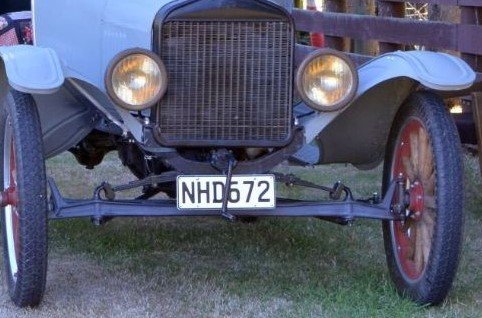

Bracket in use:
- 2021-02-10 (2).jpg (71.66 KiB) Viewed 1866 times
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: license plate
The motor mount is different on a correct 16 than Steve shows. Shown is the later motor mount 2 nuts attaching. The 16 has 2 u bolts holding the motor mount & springs.
The answer to your question is to look @ what the parts vendors offer. They range from a cast brass mount with a crank holder to simple sheet metal brackets.
The answer to your question is to look @ what the parts vendors offer. They range from a cast brass mount with a crank holder to simple sheet metal brackets.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: license plate
Again this is a later T.
The motor mount for a 16 is very different making the license plate mount very different.
-
KWTownsend
- Posts: 1382
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: license plate
Andy-
Because there is no "good" place to put a front license plate, I put my YOM plats on the back where there is a mounting bracket for it. Just keep your "real" license plate with your registration in the trunk or under the seat. I figured If I were ever pulled over I'd show the plates and explain that I was coming home from a car show and hadn't switched them back yet...
: ^ )
Keith
Because there is no "good" place to put a front license plate, I put my YOM plats on the back where there is a mounting bracket for it. Just keep your "real" license plate with your registration in the trunk or under the seat. I figured If I were ever pulled over I'd show the plates and explain that I was coming home from a car show and hadn't switched them back yet...
: ^ )
Keith
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: license plate

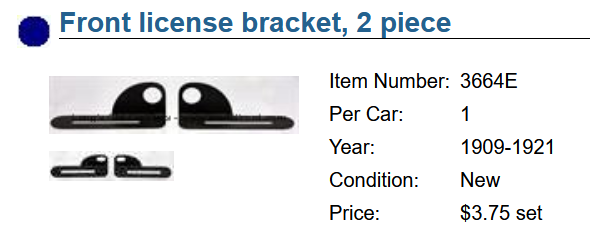

This is what you need. Its designed to use the front spring clip ubolts on each side of the crank. The picture has them resting face down
- Attachments
-
- flpb.png (47.07 KiB) Viewed 1847 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
John Heaman
- Posts: 293
- Joined: Mon Nov 23, 2020 3:22 pm
- First Name: John
- Last Name: Heaman
- * REQUIRED* Type and Year of Model Ts owned: Canadian 1912 Ford Model T Touring
- Location: Canaduh
Re: license plate
I don't know who originally posted this picture of brackets to mount a license plate. Note: the brackets curve back at the bottom so the crank will clear the plate.
I’m reading a book about anti-gravity. I just can’t put it down.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: license plate
The brackets dont come bent back. As you imply, it might be necessary to do some bending to clear the crank.John Heaman wrote: ↑Tue Oct 18, 2022 6:45 pmI don't know who originally posted this picture of brackets to mount a license plate. Note: the brackets curve back at the bottom so the crank will clear the plate.
-
WayneJ
- Posts: 521
- Joined: Sun Jan 06, 2019 8:15 pm
- First Name: Wayne
- Last Name: Jorgensen
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout, 1918 Runabout
- Location: Batavia, IL
- Board Member Since: 2013
Re: license plate
To avoid interference with the crank, I mounted my front license plate below the Headlight, as in this period photo:

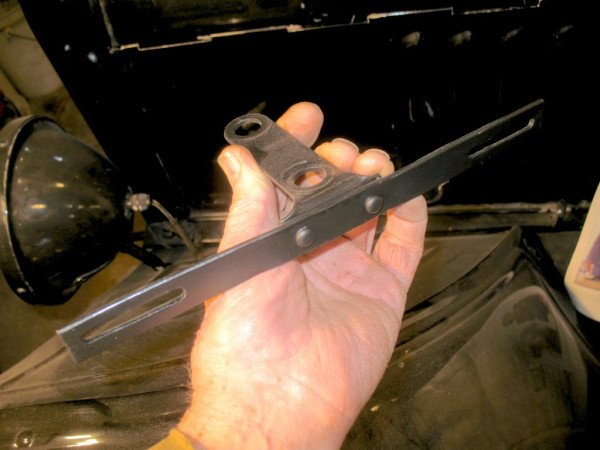

To achieve this look, I used this type of bracket:

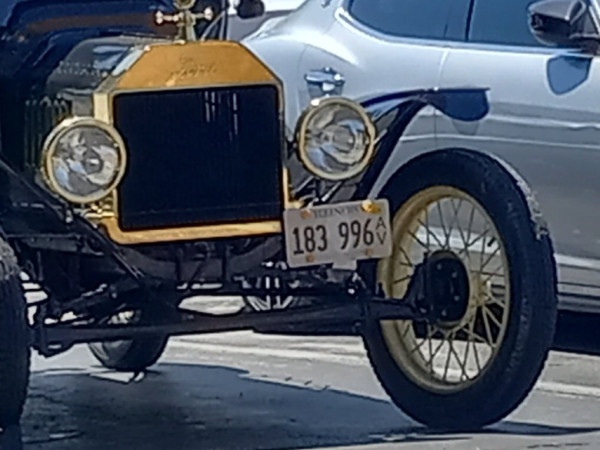

I enlarged the first mounting hole and attached the license bracket to the bottom end of the headlight bracket, as so:
- C7AEC9ED-166D-4BF0-A078-47E9C1891193.jpeg.jpg (80.26 KiB) Viewed 1705 times
- IMG_2651 copy.JPG.jpg (45.31 KiB) Viewed 1705 times
- Attachments
-
-
Wayne Jorgensen, Batavia, IL
1915 Runabout
1918 Runabout
1915 Runabout
1918 Runabout
-
Wayne Sheldon
- Posts: 4249
- Joined: Sun Jan 06, 2019 3:13 pm
- First Name: Wayne
- Last Name: Sheldon
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
- Location: Grass Valley California, USA
- Board Member Since: 2005
Re: license plate
The reproduction ones that TRDxB2 (Frank B) shows are too lightweight. I wouldn't trust them. I have seen a few originals and the steel was nearly twice as thick.
I make my own. Some lightweight 3/4 inch angle iron. Cut the shape on a steel cutting band saw. Drill the large holes where they belong and a line of under quarter inch holes located to fit up the license plate. About five minutes with good files makes the line of holes into a good looking slot. One could save some of the effort (I like for it to look like the real thing with the slot), and simply drill single holes to hold the license plate. One could drill two sets of single holes? One set to fit the antique plate? And one set to fit the modern plate in case it is needed at some point?
Don't want the thin steel to lose that antique license plate!
I make my own. Some lightweight 3/4 inch angle iron. Cut the shape on a steel cutting band saw. Drill the large holes where they belong and a line of under quarter inch holes located to fit up the license plate. About five minutes with good files makes the line of holes into a good looking slot. One could save some of the effort (I like for it to look like the real thing with the slot), and simply drill single holes to hold the license plate. One could drill two sets of single holes? One set to fit the antique plate? And one set to fit the modern plate in case it is needed at some point?
Don't want the thin steel to lose that antique license plate!
-
Wayne Sheldon
- Posts: 4249
- Joined: Sun Jan 06, 2019 3:13 pm
- First Name: Wayne
- Last Name: Sheldon
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
- Location: Grass Valley California, USA
- Board Member Since: 2005
Re: license plate
Additional.
Careful fitting usually barely clears the hand crank. A couple times, when it didn't, A little heat and bend the handle forward just enough and it probably won't be noticeable. In fact, careful examination showed that one I had to bend forward had in fact been bent back at some time in its past. Once back to a proper 90 degrees, the crank cleared the plate.
Careful fitting usually barely clears the hand crank. A couple times, when it didn't, A little heat and bend the handle forward just enough and it probably won't be noticeable. In fact, careful examination showed that one I had to bend forward had in fact been bent back at some time in its past. Once back to a proper 90 degrees, the crank cleared the plate.
