Front Crossmember height

[BUSHMIKE]

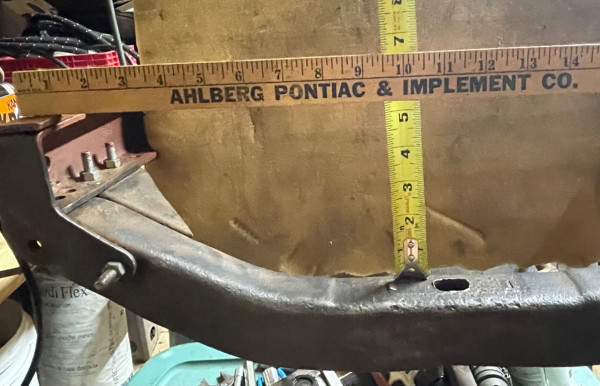

Can someone with a bare T frame measure the drop from the top of the frame rails to the center of the crossmember surface. Lay a straightedge across the rails and measure down. My TT is 5 1/4”. I’m trying to determine the difference between a TT and a std. T.
Thanx in advance!

[TRDxB2]

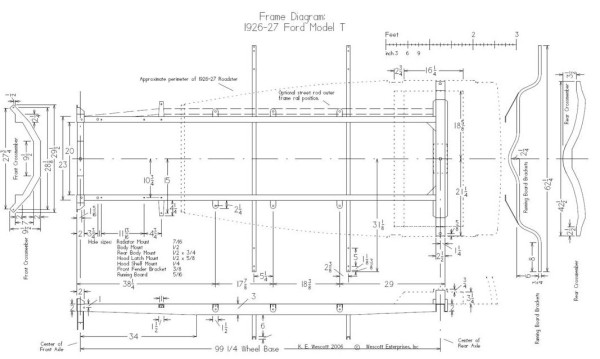

This diagram is for '26-'27

[BRENT in 10-uh-C]

Is(n't) there a height difference between the basic brass-era front crossmembers, steel-era, and the New Improved-era crossmembers?

[BUSHMIKE]

My 1934 price list only shows PN# 2853 (Factory. No. 303) listed as 1909-27.

[Scott_Conger]

My '13, '15, and '23 all measure 5 1/4" drop (MOL). Didn't check the '19 but doubt that it is different

more important for you is, "are your radiator mounting holes exactly 21 1/2" on center?"

frames are usually spread here and now is the time to fix it.

you have a lot of riveting/bucking to do.

[Steve Jelf]

When you install the rivets I would suggest making it a two-man job — one person to hold the torch and keep the rivet orange, and the other to do the bashing.

[Craig Leach]

Mike,
All crossmembers should measure the same that way, the difference is the height of the frame (top to bottom ) at the front the TT
frame is about 7/16 inch taller than a car frame. If you can't find a TT crossmember you might give some thought to using a car
crossmember removing the top spring leaf and placing a spacer under the spring/motor mount to align the engine in the frame.
That should give you enough thread to clamp the spring. It will be covered up by the radiator apron.
JAT
Craig.

[BRENT in 10-uh-C]

My '13, '15, and '23 all measure 5 1/4" drop (MOL). Didn't check the '19 but doubt that it is different

more important for you is, "are your radiator mounting holes exactly 21 1/2" on center?"

frames are usually spread here and now is the time to fix it.

you have a lot of riveting/bucking to do.

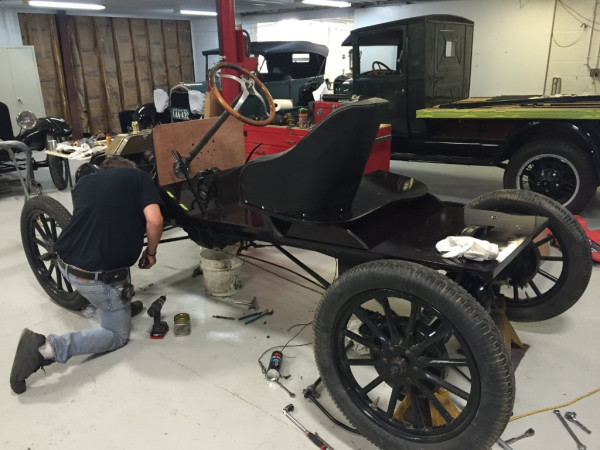

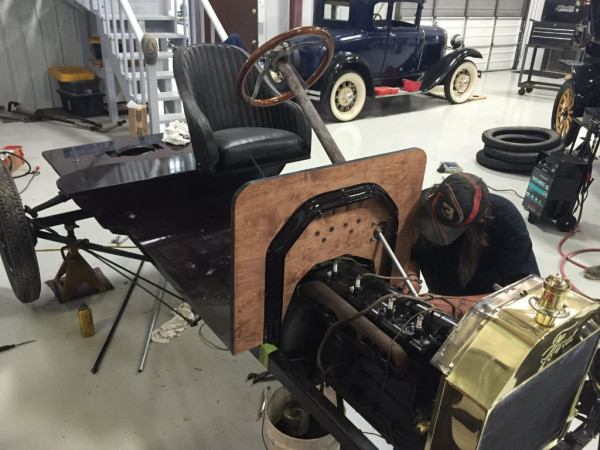

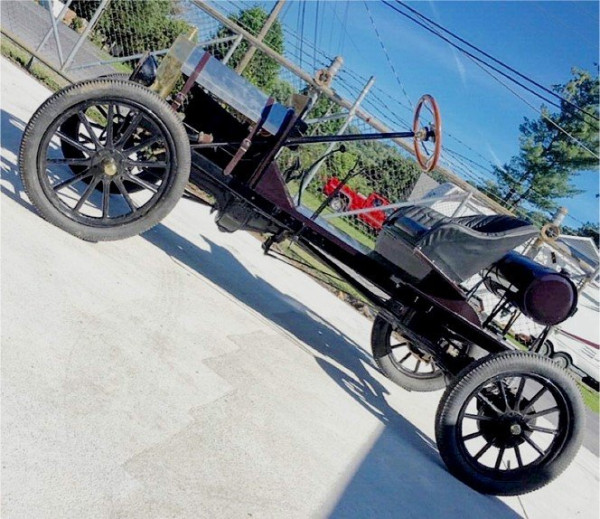

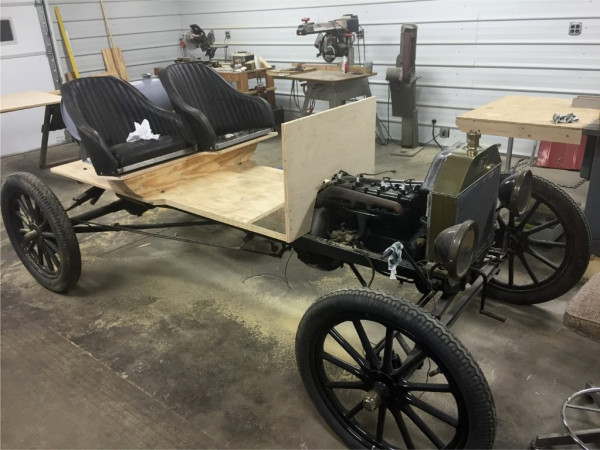

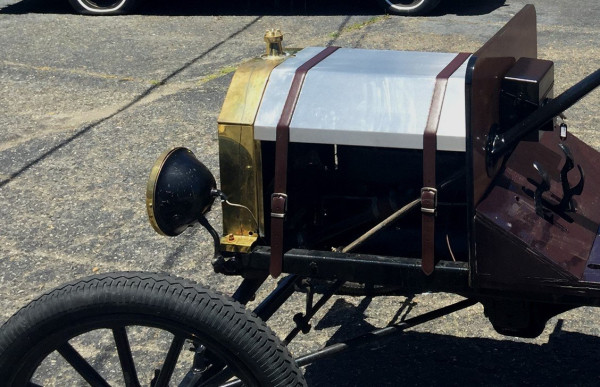

The reason I ask is I have an original '15 brass radiator (-off of my '15 Touring) that we installed onto a later steel-era chassis when we were building a quickie speedster for Blake. During mock-up assy., the lower tank reinforcing bracket hit the top of the crossmember without the mounts touching the frame. We re-fit it onto the original '15 frame and it had about ¼" of clearance under the lower tank strap. Because we were in a hurry, we just cut a couple pieces of wood and placed under the radiator mount for clearance and all was good. I/we just assumed it was because we were using a later frame. Unfortunately this car is no longer a car, but I have attached a few various pix of it where maybe you can see what we encountered. Also, here is a link to a video that you might be able to tell more about the frame and see the spacer. ( https://www.youtube.com/watch?v=7BeAHmCMztI ) Thanks!!

[Scott_Conger]

Brent my cars are assembled so there might be information hidden by the brass shroud on the radiator that I cannot detect regarding potential for cross member differences.

The earlier radiators sits down hard on leather pads on the frame and not on a lower spring, so that's a difference?

[DanTreace]

The passenger car T and the truck TT use different frames and front crossmembers.

The TT frame assembly is TT-1119.

The TT front crossmember is TT-1122.

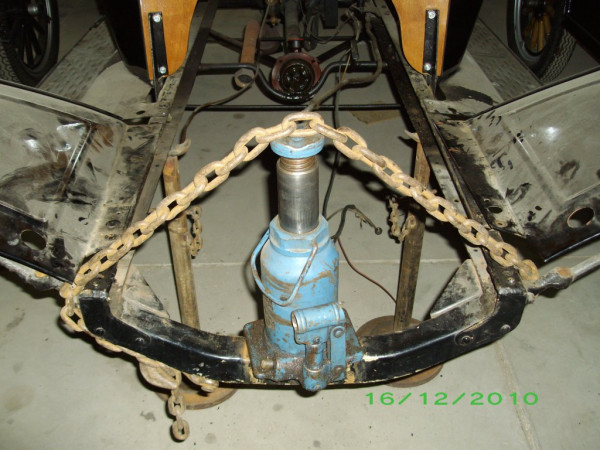

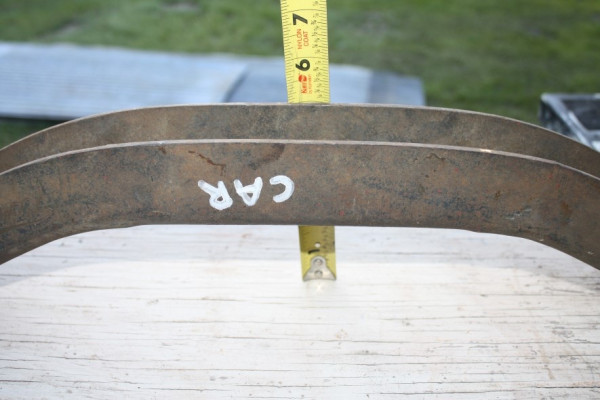

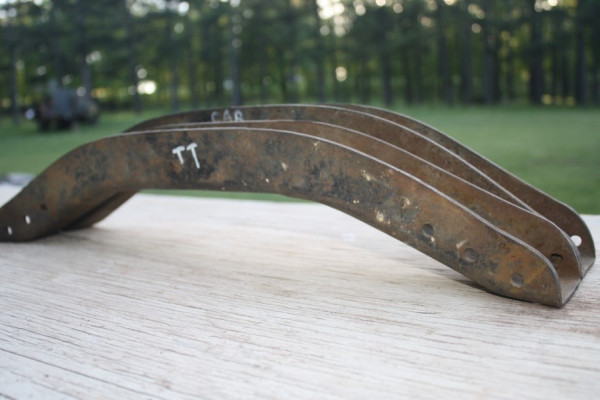

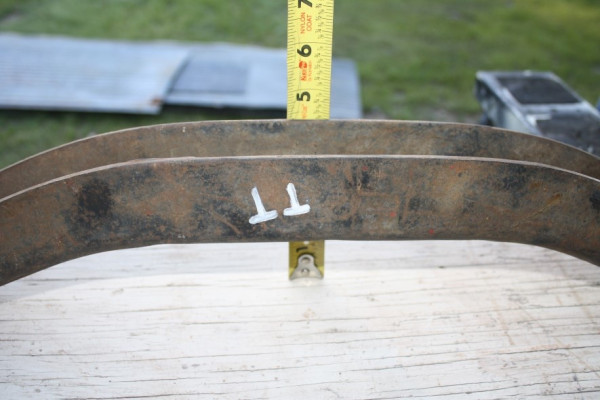

Photos from prior thread shows the difference in front crossmembers

[BUSHMIKE]

Thank you Dan,
EXACTLY what I was looking for!

[ABoer]

To bring the distance of the radiateur bolts to the 21.5 inch centre to centre .
Toon

[BUSHMIKE]

Anthonie,
I like that!
