I’m in the process of cleaning up my Ford HCCT. The manual says you can leave out the inducter and since mine looks pretty well mangled I decided to go ahead and leave it out. I read the diagram as this leaves the coil ground through the meter. That’s how I wired it, the coil fires but no reading on the meter. Did I miss something? I tried 2 different Weston meters, one of which was rebuilt by Bob C and purchased at an MTFCI tour in Kanab.
Andy
Wiring HCCT
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BE_ZERO_BE
- Posts: 628
- Joined: Sun Jan 06, 2019 12:27 pm
- First Name: BOB
- Last Name: CASCISA
- * REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
- Location: POULSBO, WA
Re: Wiring HCCT
A common source of HCCT problems is a poor ground circuit.
Make sure the following items are connected to ground (the HCCT frame).
1. Mag coil ring to HCCT frame.
2. Meter to HCCT frame

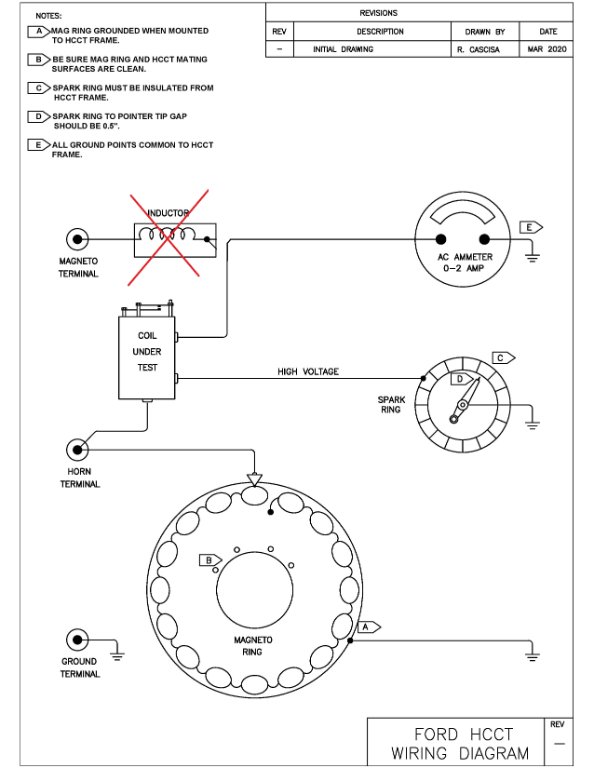

Below is a Ford HCCT Diagram with the inductor omited.
Feel free to contact me if there are any concerns about the meter.
Make sure the following items are connected to ground (the HCCT frame).
1. Mag coil ring to HCCT frame.
2. Meter to HCCT frame
Below is a Ford HCCT Diagram with the inductor omited.
Feel free to contact me if there are any concerns about the meter.
Respectfully Submitted,
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
-
J1MGOLDEN
- Posts: 1230
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: James
- Last Name: Golden
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Roadster
- Location: Bowie, MD
Re: Wiring HCCT
The only way to get sparks from your coil is to ground the meter on one side by the frame (as shown in Bob's diagram) and the other side ground the meter terminal with the wire.
-
AndyClary
Topic author - Posts: 835
- Joined: Sun Jan 06, 2019 11:15 am
- First Name: Andrew
- Last Name: Clary
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout 1926 Coupe. Mercury Speedster #1249
- Location: Usa
Re: Wiring HCCT
Turns out that although I had wired it properly the washer for the ground contact screw was hitting the frame. So the coil was always grounded taking the meter out of the circuit. Works fine now. Thanks for the advice Bob.
Andy
