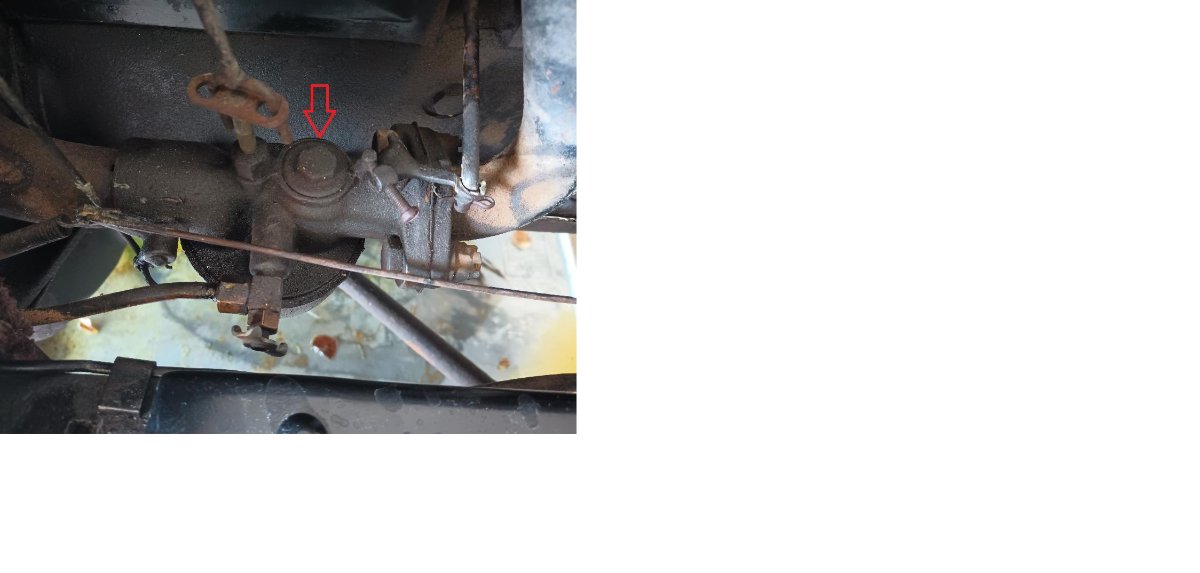

I need to do some carb repairs on my '17 touring car, but I'm not able to ID the carb. Hopefully I've attached a picture. I've added an arrow indicating a cap on the top, between the throttle shaft and the needle, that my help in identification.
Thanks for your help, Maury Dean
1917 Carburetor ID
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
m_p_dean@yahoo.com
Topic author - Posts: 59
- Joined: Sat Oct 23, 2021 12:54 pm
- First Name: Maurice
- Last Name: Dean
- * REQUIRED* Type and Year of Model Ts owned: 1917 Touring Car
- Location: Mesa, AZ
1917 Carburetor ID
- Attachments
-
-
Russ_Furstnow
- Posts: 370
- Joined: Tue Jan 08, 2019 9:01 am
- First Name: Russ
- Last Name: Furstnow
- * REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
- Location: Flagstaff, AZ
- MTFCA Life Member: YES
Re: 1917 Carburetor ID
Kingston #6100 Model L-2, Used in 1917 and 1918. I hope this helps, Russ Furstnow
-
m_p_dean@yahoo.com
Topic author - Posts: 59
- Joined: Sat Oct 23, 2021 12:54 pm
- First Name: Maurice
- Last Name: Dean
- * REQUIRED* Type and Year of Model Ts owned: 1917 Touring Car
- Location: Mesa, AZ
Re: 1917 Carburetor ID
Thank you, Russ
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 1917 Carburetor ID

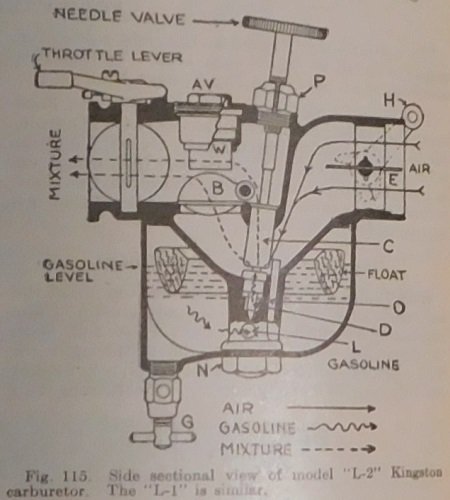

Rebuilding the L-2 Instructios https://modeltfordfix.com/rebuilding-th ... arburetor/
Lots of info on Kingston Carbs scroll down to the L-2 https://modeltfordfix.com/the-kingston- ... el-t-ford/
Lots of info on Kingston Carbs scroll down to the L-2 https://modeltfordfix.com/the-kingston- ... el-t-ford/

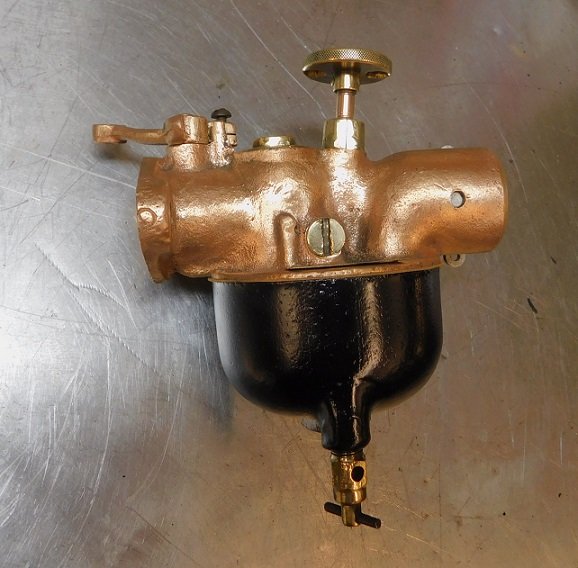

- DSCN2949s-1.jpg (73.69 KiB) Viewed 925 times
- Attachments
-
- DSCN3028.jpg (47.55 KiB) Viewed 925 times
