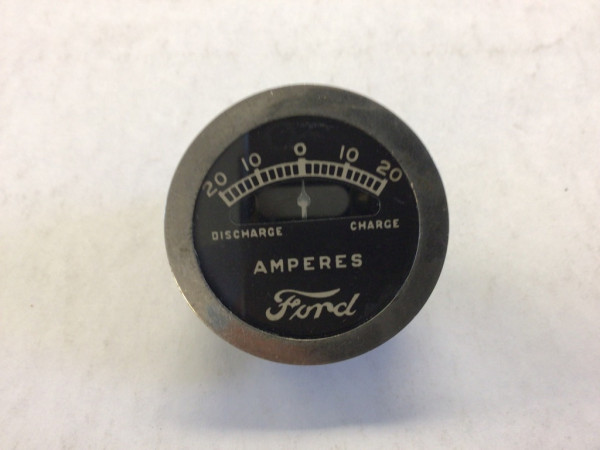

Could this be a Model T amp gauge. It has a flat bezel.
Bob Giles
Amp gauge
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Amp gauge
Yes

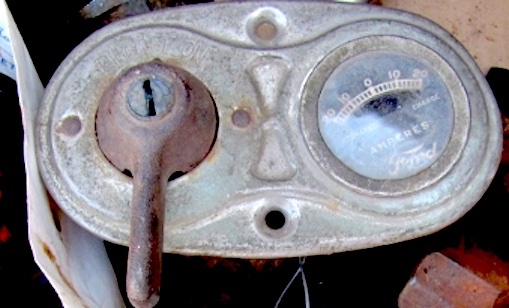

That is '26-'27 ammeter for the Improved Ford.
That is '26-'27 ammeter for the Improved Ford.
- 26 27.jpg (63.53 KiB) Viewed 689 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Amp gauge
The 20-0-20 range, Ford script face plate, flat bezel and dark background behind the pointer appear to be an original . Assumed it will fit a 1-5/8" hole. I'm a little uncertain about case because of the indented bar on the back & that the bezel appears to be a bit loose around it, should be a toght fit unless the bezel has some splits (need to check some). The rubber knobs are repro.. In any case polish up the bezel should be nickle finish - it looks good!
