Engine serial number

Post by johnernst » Thu Apr 27, 2023 2:39 pm

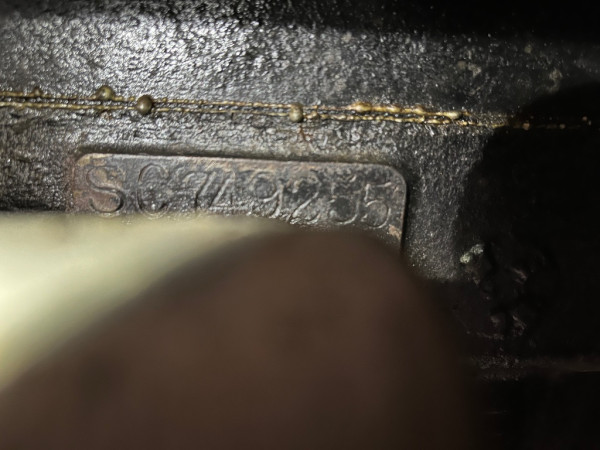

I have recently purchased a 1927 Model TT and am doing a bit of research on it. The engine serial number is SC749255. Obviously the C is Canadian but I dont know what the S is for. Also the number is much higher than known list of Canadian engine serial numbers. Does anyone have any further information? Thanks John Ernst
Attachments
Last edited by johnernst on Thu Apr 27, 2023 2:51 pm, edited 2 times in total.


speedytinc
Posts: 4726
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Engine serial number

Post by speedytinc » Thu Apr 27, 2023 2:41 pm

Looks like a re number job.
Look around here for other number stampings & compare.


Dan Hatch
Posts: 5018
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama

Re: Engine serial number

Post by Dan Hatch » Thu Apr 27, 2023 2:53 pm

Look on frame under passenger door. Should be a number there. Should match engine number. If not engine has been changed.


Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Engine serial number

Post by Scott_Conger » Thu Apr 27, 2023 2:56 pm

To say that the "C" is obviously for "Canadian", is a leap of faith. It's a renumber job. Like Dan said, check the frame # and that will be what the original engine sported, too.

Edit 4/27 7:28PM
enough evidence presented to believe that the "C" either was original or is possibly intended to mean "Canada". My original post is flawed. Still believe it is a renumber job, though.
Last edited by Scott_Conger on Thu Apr 27, 2023 9:30 pm, edited 1 time in total.
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured

User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:

Re: Engine serial number

Post by Steve Jelf » Thu Apr 27, 2023 5:11 pm

In the encyclopedia Bruce doesn't mention S being on Canadian engines, which he would certainly have done if it had been a factory practice. In the USA replacement blocks were sold without serial numbers, with the expectation that they would be stamped with the number of the presumably ruined engine they replaced. If the same thing was done in Canada, I gather this is one of those replacement blocks.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Engine serial number

Post by TRDxB2 » Thu Apr 27, 2023 6:59 pm

Canadian? Number is too high. SC749255 also the reasonable presumption that the S extra & the C is for Canadian, rather than the SC stud for something itself- SeCond, Smith's Car service

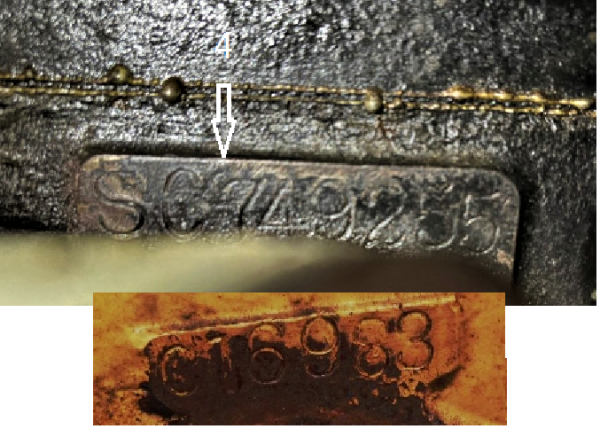

sc engine.png
--
--
Restamp / cover up?
Looks like a 4 and its not the same shape (top^). Different 9 --- but not enough Canadian engine number stamps to conclude anything. What would be interesting is to see what the size of the casting area above the water inlet is for a late Canadian Block for comparison
Attachments
sc stamp.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Engine serial number

Post by RajoRacer » Thu Apr 27, 2023 7:19 pm

John - hate be be a "Betty Bummer" but that engine is earlier & not a '26 - '27 !

Perhaps I misspoke - looking at your carburetor thread, I see the "Made in Canada" on the head - does it have the wide clutch & brake pedals ?


Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Engine serial number

Post by Les Schubert » Thu Apr 27, 2023 7:59 pm

Is Made in Canada cast on the block?


Topic author
johnernst
Posts: 40
Joined: Sat Aug 21, 2021 7:09 pm
First Name: John
Last Name: Ernst
* REQUIRED* Type and Year of Model Ts owned: 1922 Canadian Touring
Location: Edmonton Alberta

Re: Engine serial number

Post by johnernst » Thu Apr 27, 2023 8:53 pm

It does have wide pedals. I will look for "Made In Canada" on the block

J


Topic author
johnernst
Posts: 40
Joined: Sat Aug 21, 2021 7:09 pm
First Name: John
Last Name: Ernst
* REQUIRED* Type and Year of Model Ts owned: 1922 Canadian Touring
Location: Edmonton Alberta

Re: Engine serial number

Post by johnernst » Thu Apr 27, 2023 8:57 pm

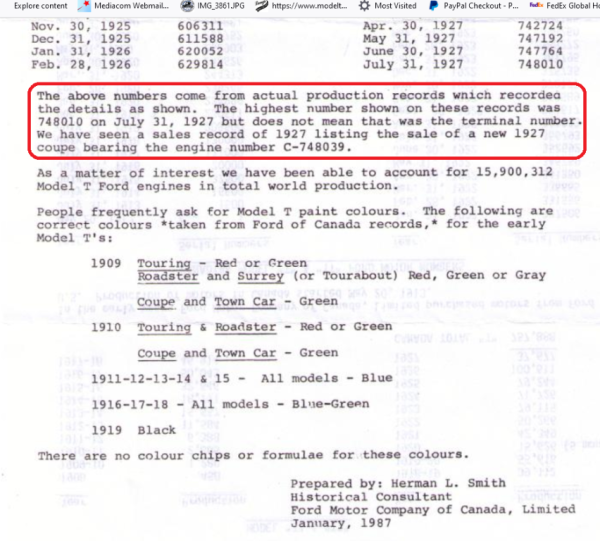

Steve Bruce McCalley does mention in his book

"Generally all Canadian engine numbers begin with "C" but some exceptions seem to appear, with "HC" and "SC" being noted, as well as some without any letter.

But perhaps it is a replacement engine, not sure,

J

User avatar

Mark Nunn
Posts: 1241
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
* REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
Location: Bennington, NE
Board Member Since: 2017

Re: Engine serial number

Post by Mark Nunn » Thu Apr 27, 2023 9:08 pm

The block has Made in Canada on it. See the carb thread photo.


BUSHMIKE
Posts: 354
Joined: Tue Nov 01, 2022 6:46 am
First Name: Mike
Last Name: Cushway
* REQUIRED* Type and Year of Model Ts owned: 1925 TT, 1926 TT, 1926 TT
Location: Trout Creek, MI

Re: Engine serial number

Post by BUSHMIKE » Fri Apr 28, 2023 10:21 am

What I see is a double stamp. Very common with hand held stamps. The “shadow stamp” being a poor first hit or a bounce. To me the double spacing and characters all match.


BUSHMIKE
Posts: 354
Joined: Tue Nov 01, 2022 6:46 am
First Name: Mike
Last Name: Cushway
* REQUIRED* Type and Year of Model Ts owned: 1925 TT, 1926 TT, 1926 TT
Location: Trout Creek, MI

Re: Engine serial number

Post by BUSHMIKE » Fri Apr 28, 2023 10:22 am

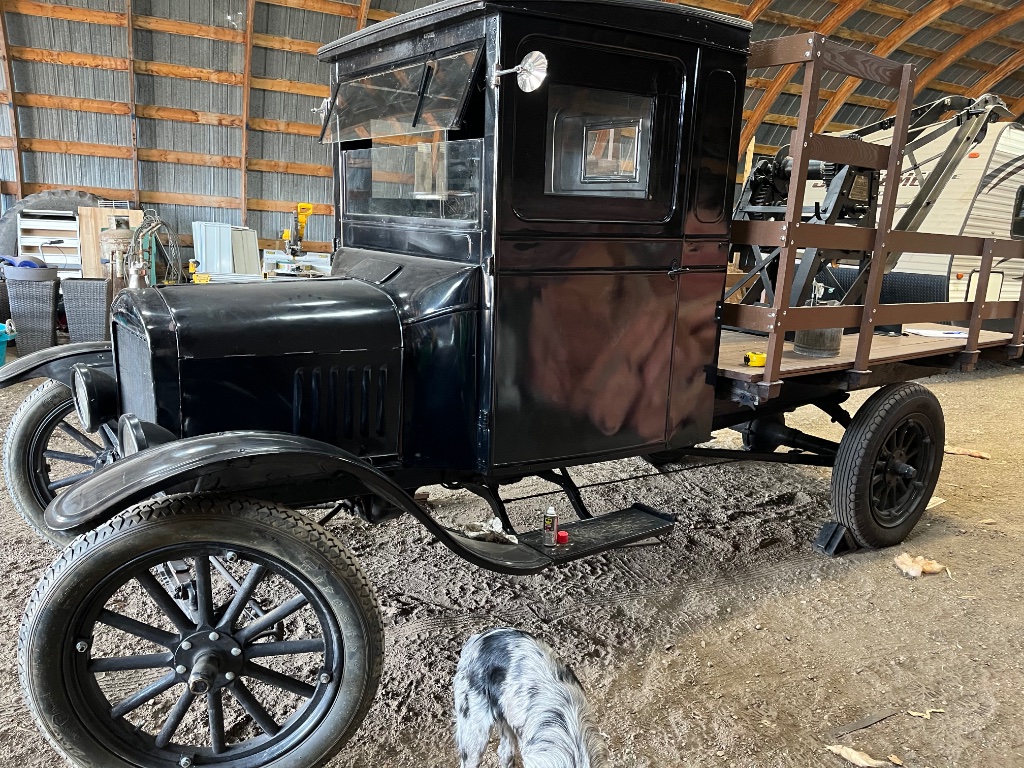

BEAUTIFUL TT John!


John Codman
Posts: 1482
Joined: Mon Jan 07, 2019 10:27 am
First Name: John
Last Name: Codman
* REQUIRED* Type and Year of Model Ts owned: 1927 Youring
Location: Naples, FL 34120

Re: Engine serial number

Post by John Codman » Fri Apr 28, 2023 2:07 pm

I agree with Bushmike. It is a beautiful T. On my '27 the frame number is accessible by removing the floorboards The number is stamped on the top frame rail just ahead of the right door opening. I am however, assuming that this would be the same for Canadian T's.
