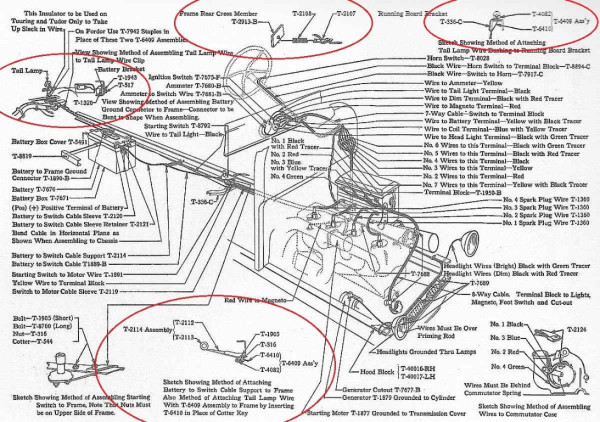

What are all these 1926 tail lamp wiring doodads things are I see in this drawing?
Have no desire to install all this stuff just curious what it looked like from the factor for a 1927 Touring.
What are these 1926 tail lamp wiring doodads
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
bmklawt
Topic author - Posts: 234
- Joined: Sun Jan 13, 2019 8:13 pm
- First Name: Bruce
- Last Name: Klawiter
- * REQUIRED* Type and Year of Model Ts owned: 1927 Touring
- Location: Holland MI
What are these 1926 tail lamp wiring doodads
- Attachments
-
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: What are these 1926 tail lamp wiring doodads

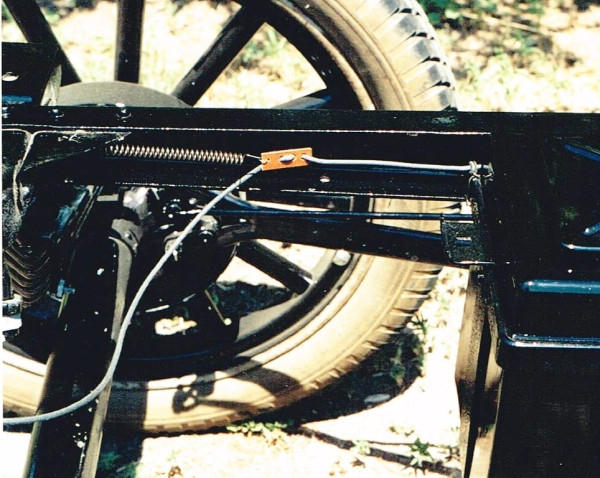

I did this one on my '25. This was easy to do as the parts were available. It does keep the wire where it should be.
