Floor blueprint
Is there a website with a drawing of a model t floor. I need the location and diameter of the starter switch hole.
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Floor blueprint
What model year ? What body style ?
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
-
FULLBORE
Topic author - Posts: 35
- Joined: Fri Feb 04, 2022 1:17 pm
- First Name: Mike
- Last Name: Coats
- Location: Caseville MI
- Board Member Since: 2021
Re: Floor blueprint
1927 touring.
-
Been Here Before
- Posts: 654
- Joined: Mon Oct 07, 2019 2:00 pm
- First Name: George John
- Last Name: Drobnock
- * REQUIRED* Type and Year of Model Ts owned: 1922 Coupe
- Location: Central Pennsylvania
Re: Floor blueprint

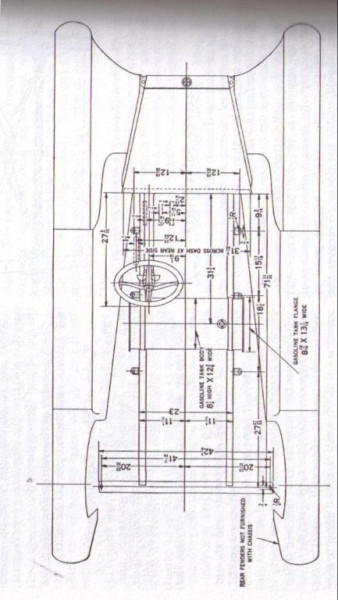

https://www.mtfca.com/discus/messages/8 ... 1529376441
- 8747071927floottmodel.jpg (82.93 KiB) Viewed 1365 times
-
Been Here Before
- Posts: 654
- Joined: Mon Oct 07, 2019 2:00 pm
- First Name: George John
- Last Name: Drobnock
- * REQUIRED* Type and Year of Model Ts owned: 1922 Coupe
- Location: Central Pennsylvania
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Floor blueprint
George.. that drawing may be reference to a 26-27 four-door sedan or a TT truck since it shows the gas tank under the front seat. He has a 27 touring car.
-
FULLBORE
Topic author - Posts: 35
- Joined: Fri Feb 04, 2022 1:17 pm
- First Name: Mike
- Last Name: Coats
- Location: Caseville MI
- Board Member Since: 2021
Re: Floor blueprint

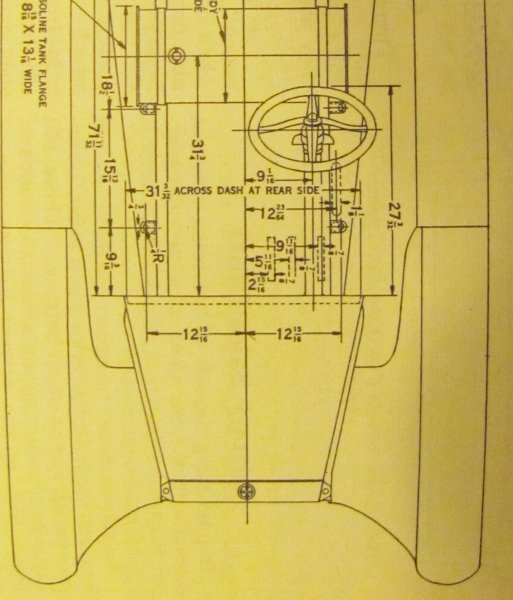

Thanks for the drawings, but I don’t believe they show the hole for the starter switch.
I’m actually looking for the starter switch hole diameter and location
I’m actually looking for the starter switch hole diameter and location
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Floor blueprint
Mike,

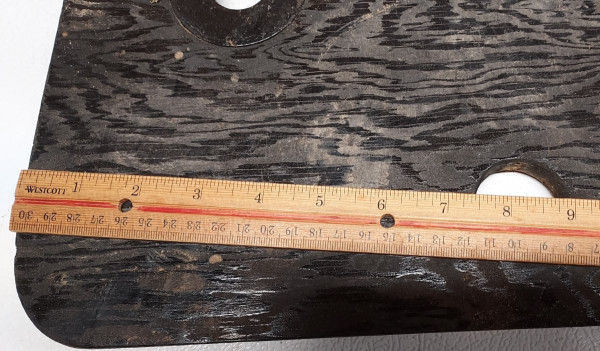

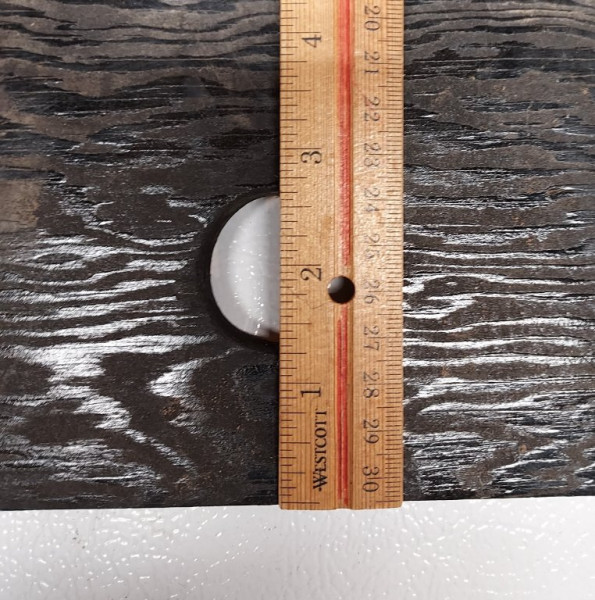

Dont have the drawing. You can get one from the Benson Ford Research Center, its complicated and costs money. If this helps, decades ago my father made new a floorboard using the original as a template, I cannot vouch for its accuracy. The hole is 1 3/8" dia, and all measurements are perpendicular to the edge of the floorboard.
Dont have the drawing. You can get one from the Benson Ford Research Center, its complicated and costs money. If this helps, decades ago my father made new a floorboard using the original as a template, I cannot vouch for its accuracy. The hole is 1 3/8" dia, and all measurements are perpendicular to the edge of the floorboard.
-
FULLBORE
Topic author - Posts: 35
- Joined: Fri Feb 04, 2022 1:17 pm
- First Name: Mike
- Last Name: Coats
- Location: Caseville MI
- Board Member Since: 2021
Re: Floor blueprint
Thanks
That is exactly what I need.
That is exactly what I need.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Floor blueprint
Why not just map the position of the starter button and drill the floorboard to suit? At least that way any differences between cars will be negated and your drilled hole will be concentric to your particular starter button.
Allan from down under.
Allan from down under.
