Does anyone know where I can get a wiring diagram for a 12 volt system having an alternator, distributor, starter, coil, lighting, etc.?
It is a mutt 1911 Model T Runabout. The previous owner had installed the alternator, starter, lights, distributor and coil...all 12 volts...but no wiring...this is what I need help on. Am not good at electrical wiring on the fly without seeing a diagram compatible with this setup. I need a visual guide.
Help on wiring please.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Help on wiring please.
jaybee47 wrote: ↑Fri May 12, 2023 5:50 pmDoes anyone know where I can get a wiring diagram for a 12 volt system having an alternator, distributor, starter, coil, lighting, etc.?
It is a mutt 1911 Model T Runabout. The previous owner had installed the alternator, starter, lights, distributor and coil...all 12 volts...but no wiring...this is what I need help on. Am not good at electrical wiring on the fly without seeing a diagram compatible with this setup. I need a visual guide.
--
--

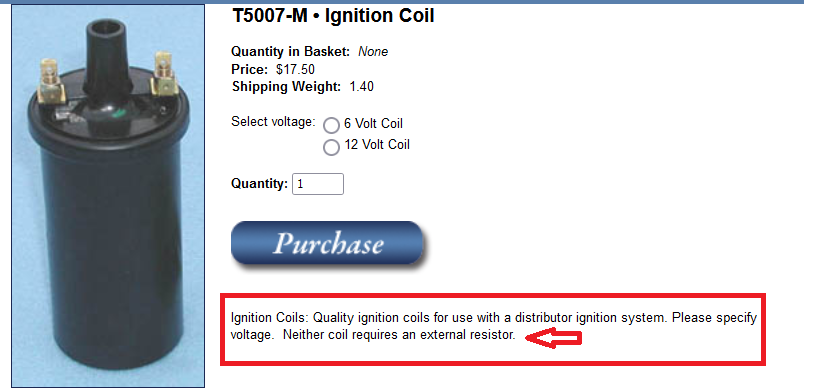

NOTE Not all ignition coils require a ballast resistor. You need to check its instructions

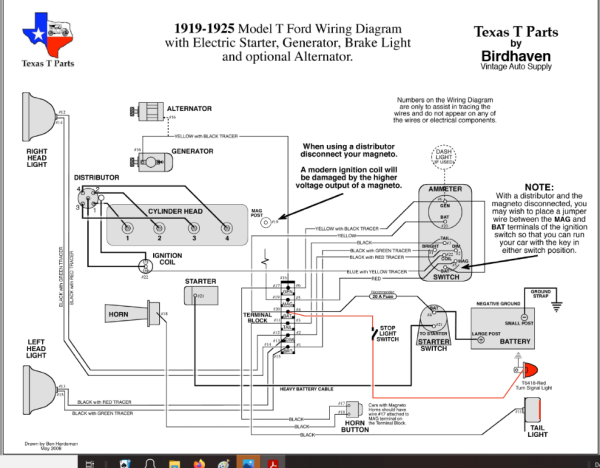

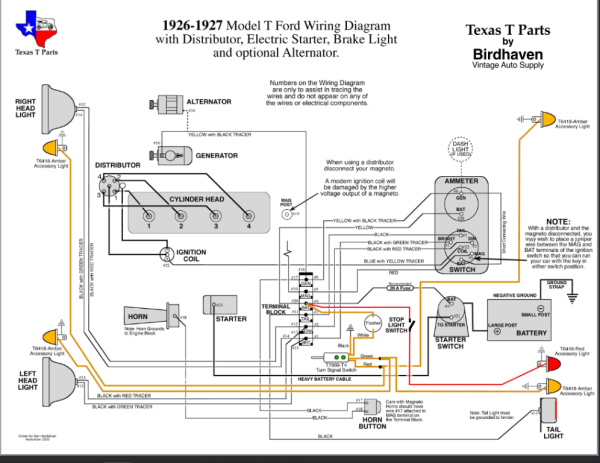

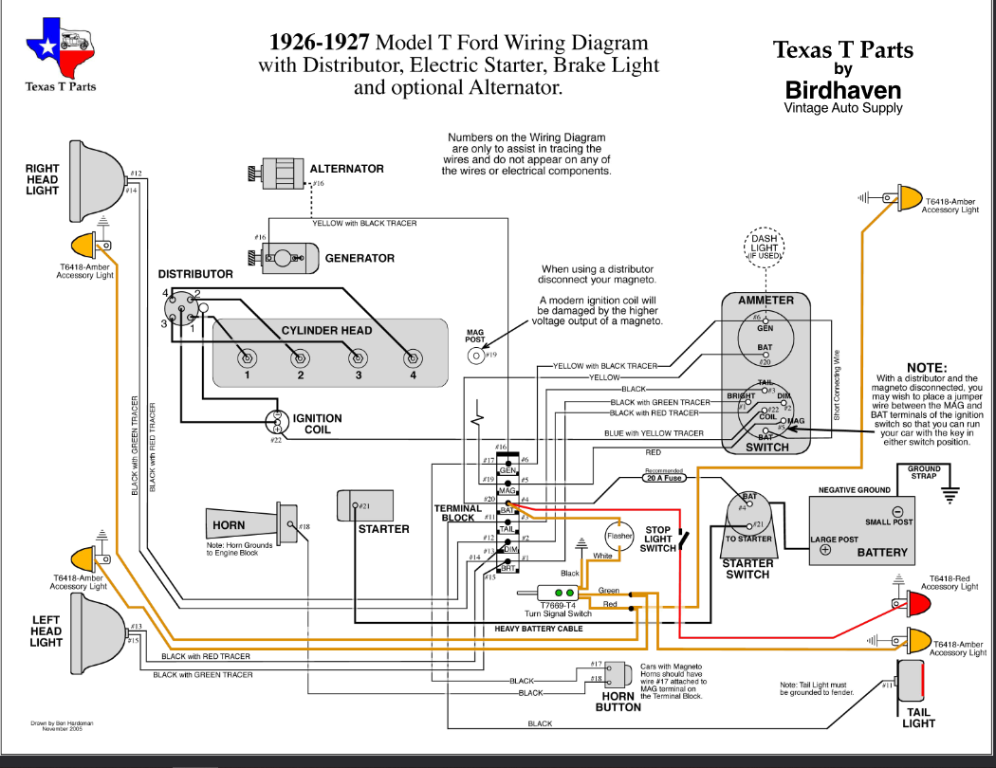

- Attachments
-
Last edited by TRDxB2 on Fri May 12, 2023 7:42 pm, edited 1 time in total.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
jsaylor
- Posts: 411
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: John
- Last Name: Saylor
- * REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1927 Tudor
- Location: Citrus Heights, Ca
- Board Member Since: 1999
Re: Help on wiring please.
One more note. When on 12 volts, the ignition coil will need a ballast resistor in series with the supply voltage. Some 12 volt coils have this built in some do not. Check your coil, hopefully its marked. If you need a ballast resistor look for Napa part number ECH ICR12 --$7.69. I have also used this same resistor to run a 6 volt horn on 12 volts.
-
jaybee47
Topic author - Posts: 335
- Joined: Mon Jan 07, 2019 8:40 pm
- First Name: jay
- Last Name: bolante
- * REQUIRED* Type and Year of Model Ts owned: 1922 Runabout
- Location: columbia city indiana
- Board Member Since: 2015
Re: Help on wiring please.
Just what I needed....many many thanks to Frank and John
