Wanting Information: Wooden Wheel Spoke Specs.

Post by RajoRacer » Tue Sep 05, 2023 5:25 pm

Anyone happen to have information regarding the profile of a wooden spoke when placed into the felloe where the spoke valley meets the outer hub plate ???????????? To simplify: on an assembled steel felloe wheel, how much "wood" should be showing before the valley between 2 spokes approaches the steel hub bolt plate?
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Wanting Information: Wooden Wheel Spoke Specs.

Post by Humblej » Tue Sep 05, 2023 6:46 pm

What wheel? I have the Ford spoke drawing for the 21" wheel, hub area should be similar for other demountable wheels.
Top
User avatar

Topic author
RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Wanting Information: Wooden Wheel Spoke Specs.

Post by RajoRacer » Tue Sep 05, 2023 9:16 pm

21" at the moment - I have a wheel rack full of unrestored wheels mostly 23" and both seem to be consistent for distance from the "valley" between spokes to the hub plate - less than 1/4" - I looked at a set of respoked 21" wheels and there was way too much spoke between the valley and the hub plate. I was inquiring if anyone by chance had a Ford print regarding assembly.
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Wanting Information: Wooden Wheel Spoke Specs.

Post by Humblej » Tue Sep 05, 2023 9:38 pm

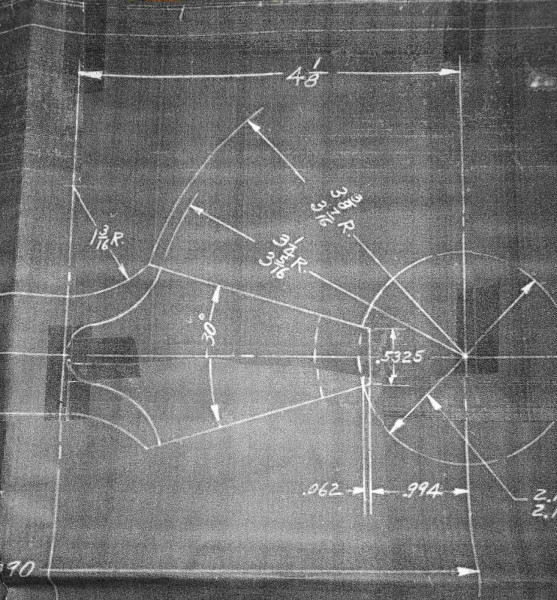

This should be what you need.
Top
User avatar

Topic author
RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Wanting Information: Wooden Wheel Spoke Specs.

Post by RajoRacer » Wed Sep 06, 2023 11:13 am

Many thanks Jeff !
