Trying to put together a Depot Hack that came to me as a project. Cleaning up the steering column and have a question concerning the correct location of the "spacer" that slips over the steering shaft and the two control rods and keeps them apart. A metal plate with the three holes in it for this task.
On my 15, it is located between the two locations for the arm connectors, one for throttle and one for timing. Seems like a good location to relieve any stress caused by the transference of force. On the Depot Hack, it was just stuck on the bottom before everything connects to the steering box. On other photos, it looks like it is all the way up by the two springs just after the firewall plate.
So, where should this spacer plate be located? Or, should there be more than one per column?
I'll hang up and listen
26/27 steering column rod spacer location
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
signsup
Topic author - Posts: 472
- Joined: Thu Jan 10, 2019 12:56 pm
- First Name: Robert
- Last Name: Brough
- * REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
- Location: Winston, GA
- Board Member Since: 2015
26/27 steering column rod spacer location
Why do we drive on parkways and park on driveways?
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
-
Humblej
- Posts: 1958
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: 26/27 steering column rod spacer location
My 26 column spacer plate is just above the throttle arm.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 26/27 steering column rod spacer location
Correct spot, just above the throttle lever on the throttle rod as Jeff posted.

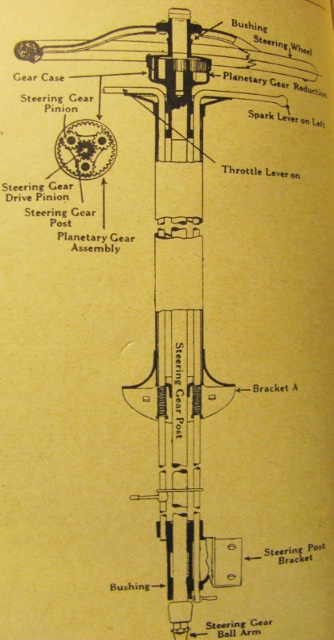

Try as you like to place it higher, but that little guy will wiggle down against the lever anyway. Sketch shows it against the lever.
c. 1920
Try as you like to place it higher, but that little guy will wiggle down against the lever anyway. Sketch shows it against the lever.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
signsup
Topic author - Posts: 472
- Joined: Thu Jan 10, 2019 12:56 pm
- First Name: Robert
- Last Name: Brough
- * REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
- Location: Winston, GA
- Board Member Since: 2015
Re: 26/27 steering column rod spacer location
Drats, I was hoping not to have to remove both rod arms, but it is what it is.
Thanks for the replies.
TO THE WORKSHOP!!!!
Thanks for the replies.
TO THE WORKSHOP!!!!
