Looking for Winfield Carburetor information

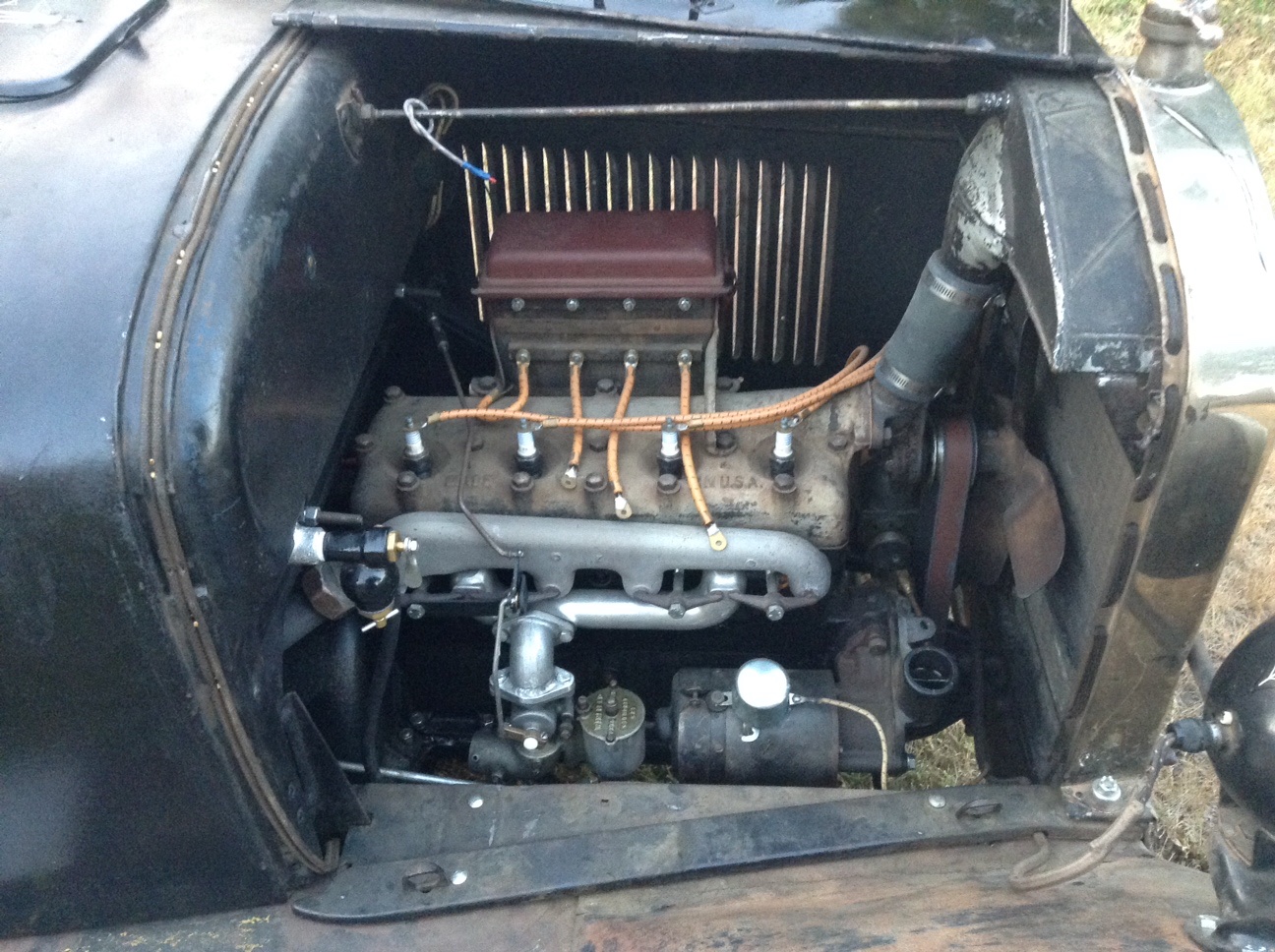

I am looking for information on this up draft carburetor that came on a model T speedster.

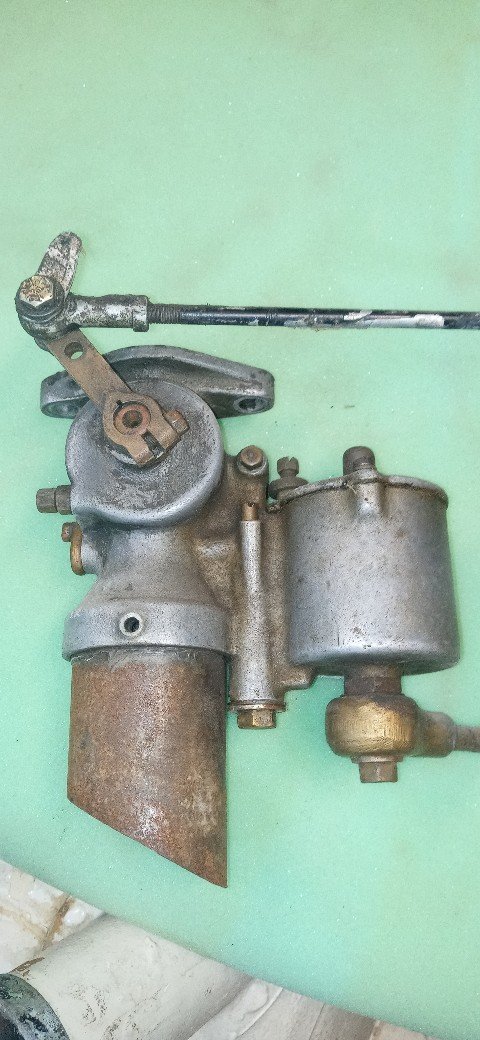

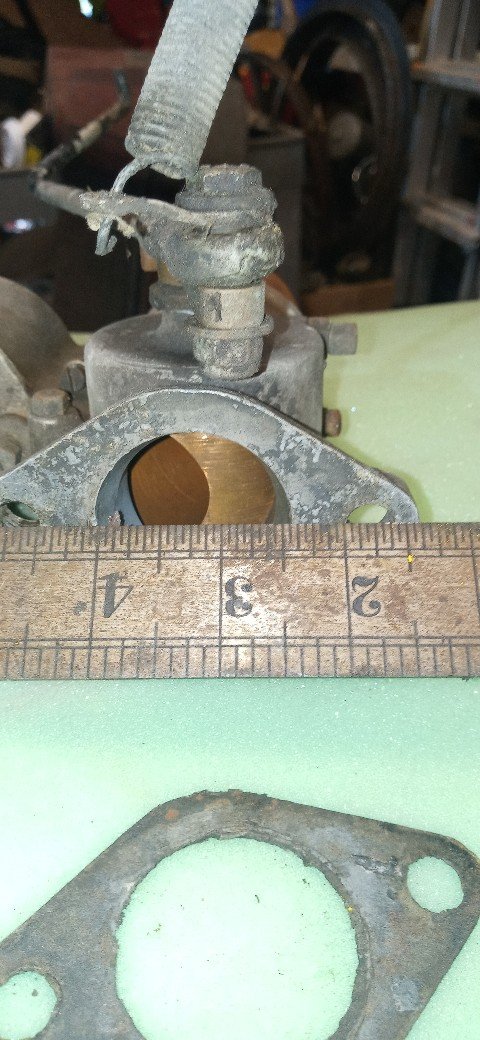

It's a Winfield Updraft with a 1 5/8 bore.
It's a Winfield Updraft with a 1 5/8 bore.
-
ThreePedalTapDancer
- Posts: 1631
- Joined: Sun Nov 24, 2019 2:29 pm
- First Name: Ed
- Last Name: Martin
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
- Location: Idaho
Re: Looking for Winfield Carburetor information
It is a Model V Updraft. Should have the size stamped on the side.
https://www.nwvs.org/Technical/2104WinfieldHV.pdf
https://www.nwvs.org/Technical/2104WinfieldHV.pdf
-
BlackTinLizzie
Topic author - Posts: 163
- Joined: Tue Jan 08, 2019 5:55 pm
- First Name: William
- Last Name: Weiss
- Location: Southern Vermont
Re: Looking for Winfield Carburetor information
Thank you very much
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Looking for Winfield Carburetor information
Does this help?
http://www.mtfca.com/discus/messages/33 ... 1374076952
http://www.mtfca.com/discus/messages/33 ... 1374076952
When did I do that?
-
BlackTinLizzie
Topic author - Posts: 163
- Joined: Tue Jan 08, 2019 5:55 pm
- First Name: William
- Last Name: Weiss
- Location: Southern Vermont
Re: Looking for Winfield Carburetor information
Thank you very much
-
Kevin Pharis
- Posts: 1564
- Joined: Thu Jan 10, 2019 3:54 pm
- First Name: Kevin
- Last Name: Pharis
- Location: Sacramento CA
- Contact:
-
Kevin Pharis
- Posts: 1564
- Joined: Thu Jan 10, 2019 3:54 pm
- First Name: Kevin
- Last Name: Pharis
- Location: Sacramento CA
- Contact:
Re: Looking for Winfield Carburetor information
Looks to be in relatively good shape. A couple things I notice are that the flange should have threads (5/16-18 I think) and the fuel inlet has the tube soldered in. Not problems that would stop me from trying to run it tho. The bigger issue with these barrel valve carbs is air leakage at idle. Leaks from the throttle shaft bushings and also from excessive barrel to bore clearance caused by both wear and/or distortion. The flanges are often warped and need surfacing. It’s pretty clear that someone has tried to seal up the throttle shaft bores with the rubber washers.

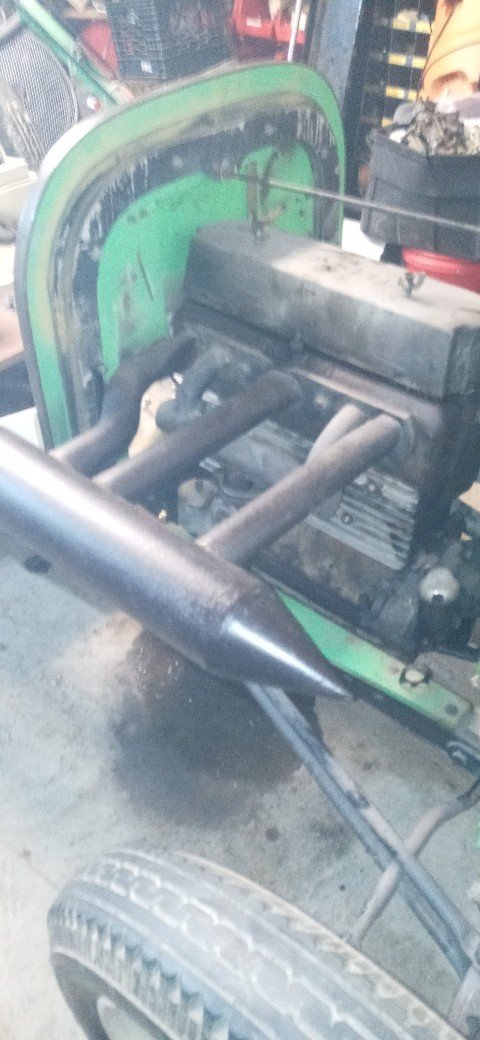

I once made a new oversize barrel and bored the housing to match on a 4V. It went from idling crappy to idling awesome! I miss that good runnin ol car…
I once made a new oversize barrel and bored the housing to match on a 4V. It went from idling crappy to idling awesome! I miss that good runnin ol car…
-
BlackTinLizzie
Topic author - Posts: 163
- Joined: Tue Jan 08, 2019 5:55 pm
- First Name: William
- Last Name: Weiss
- Location: Southern Vermont
Re: Looking for Winfield Carburetor information
Thanks to all
I am going to try and get the running today
I am going to try and get the running today
-
BlackTinLizzie
Topic author - Posts: 163
- Joined: Tue Jan 08, 2019 5:55 pm
- First Name: William
- Last Name: Weiss
- Location: Southern Vermont
Re: Looking for Winfield Carburetor information
Well it runs and idles
Float valve seems to be sticking a little will open it up tomorrow.
