1911 left side steering arm part#
Quick question for a 1911 Model T left side steering arm. Should the part number be T270 or the T270 A, I have both want to make sure I put on the correct one. The car has wrong spindle on it, must have a problem long time ago. still looking for a spindle also.
-
Tbird
- Posts: 1230
- Joined: Sun Jan 06, 2019 6:51 pm
- First Name: Mike
- Last Name: Bird
- * REQUIRED* Type and Year of Model Ts owned: 1912 Delivery Car
- Location: Goshen IN
Re: 1911 left side steering arm part#
Tim,
Is one of the steering arms for your spindle have the integrated hole for the speedometer?
My left steering arm is marked T-270-F with a TW mark
My right steering arm that has a hole for the speedometer bracket is marked T-282-F and a TW mark. Both of these arms are in early spindles with a DB mark.
To my understanding the arms can be swapped for either side, especially important if you had a Right hand drive controls.
Is one of the steering arms for your spindle have the integrated hole for the speedometer?
My left steering arm is marked T-270-F with a TW mark
My right steering arm that has a hole for the speedometer bracket is marked T-282-F and a TW mark. Both of these arms are in early spindles with a DB mark.
To my understanding the arms can be swapped for either side, especially important if you had a Right hand drive controls.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: 1911 left side steering arm part#
The correct name is spindle arm!
-
Tim D
Topic author - Posts: 207
- Joined: Fri Jun 05, 2020 7:48 pm
- First Name: Tim
- Last Name: Dickson
- * REQUIRED* Type and Year of Model Ts owned: 1912 speedster 1911 Torepdo
- Location: wi
Re: 1911 left side steering arm part#
The right side is correct and has the hole for speedo. The left side has the wrong spindle and spindle arm.

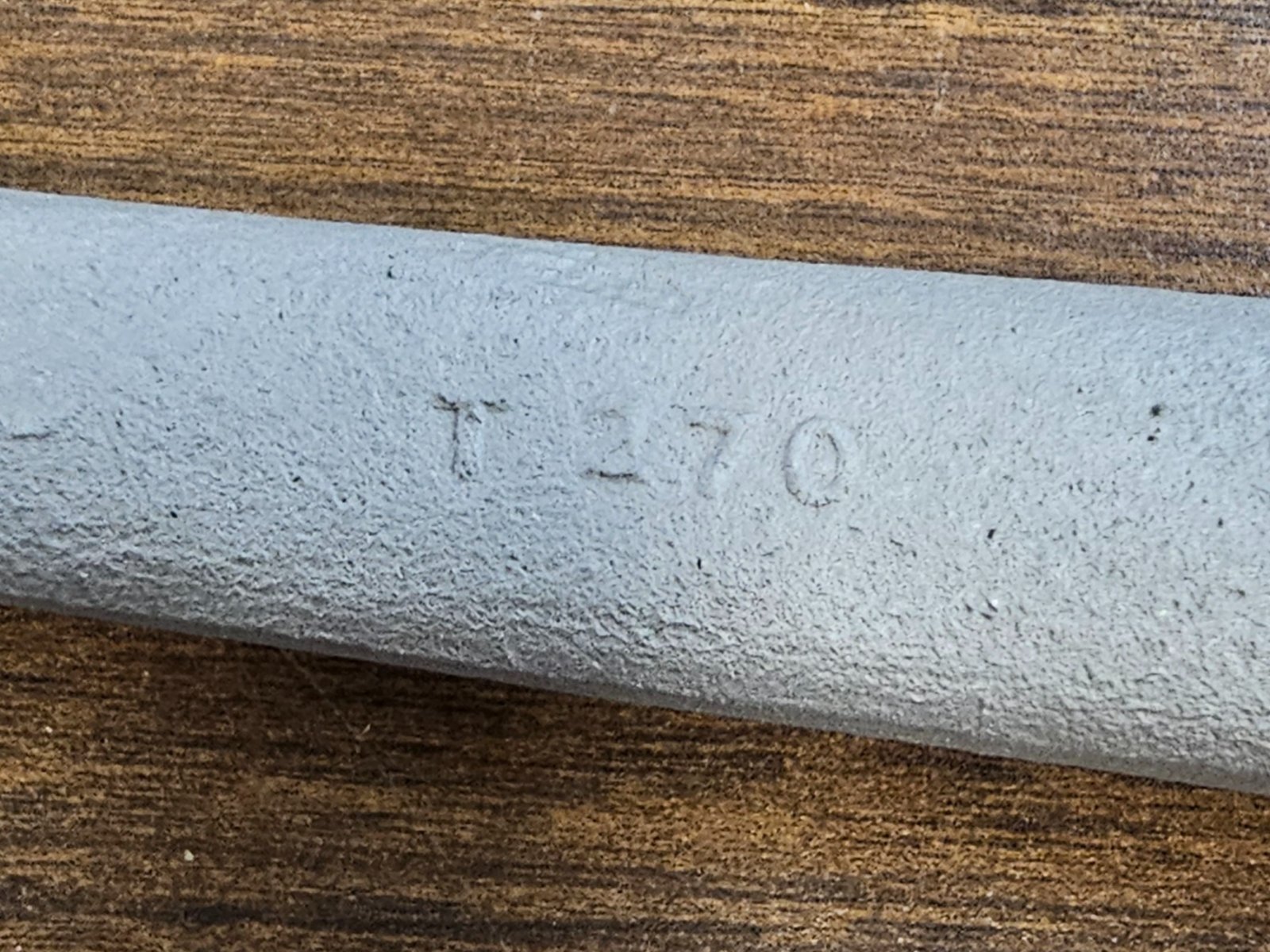

Here is a picture of the arm. Car was built mid Oct. Just try to get it close to correct since I have 2 parts to choose from.
Here is a picture of the arm. Car was built mid Oct. Just try to get it close to correct since I have 2 parts to choose from.
- Attachments
-
-
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: 1911 left side steering arm part#

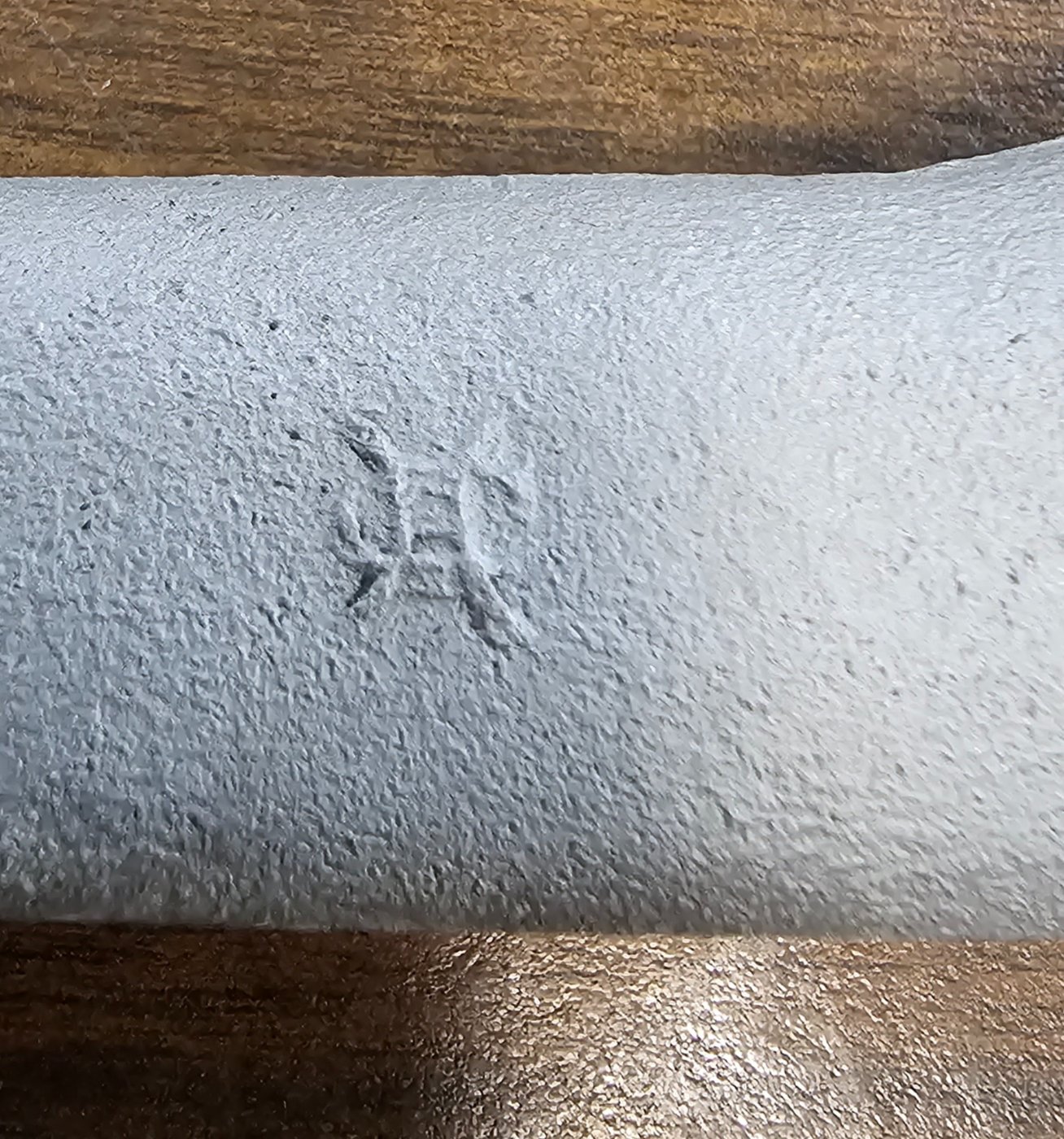

Tim, the C over H mark was common on the forgings on my Canadian sourced 1915 model T. It was suggested it was forged by Cleveland hardware. The TW mark is likely earlier, a Transue Williams forging. As far as I know, they are interchangeable, so unless you are anal about such details, there should be no problem in using either, and swapping it out at a later date.
Allan from down under.
Allan from down under.
