Finned RAJO exhaust manifold question

Post by Popemcman » Tue Sep 12, 2023 2:33 pm

I have a finned RAJO exhaust manifold that is incomplete. The exhaust pipe exits from the bottom of the manifold. The missing part holds the exhaust pipe somehow. Does anyone know what the missing part looks like? Thanks. First time on the forum haven't figured out how to attach photos. Mike
Top

Dan McEachern
Posts: 1400
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Finned RAJO exhaust manifold question

Post by Dan McEachern » Tue Sep 12, 2023 2:46 pm

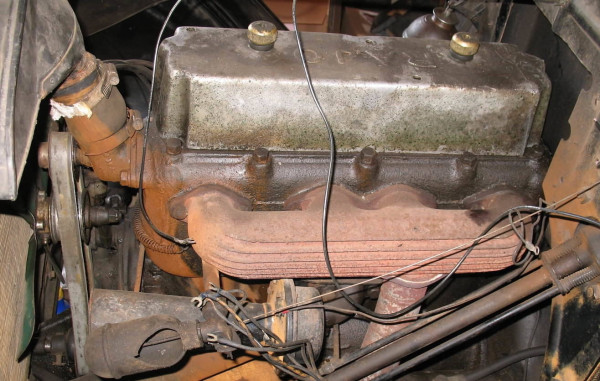

There is an extension piece that routs the exhaust down from the exhaust manifold and around the water connection casting. They are pretty rare.
rajo exh ext2.jpg
Top

ThreePedalTapDancer
Posts: 1631
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ed
Last Name: Martin
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
Location: Idaho

Re: Finned RAJO exhaust manifold question

Post by ThreePedalTapDancer » Tue Sep 12, 2023 3:27 pm

You can attach a header flange on some proper diameter pipe and it will work fine until you find an original.
Top
User avatar

22centerdoor
Posts: 30
Joined: Mon Jan 07, 2019 6:01 pm
First Name: David
Last Name: Stauffacher
* REQUIRED* Type and Year of Model Ts owned: 1922 Centerdoor
Location: Monroe, Wisconsin
MTFCA Life Member: YES
Board Member Since: 2005

Re: Finned RAJO exhaust manifold question

Post by 22centerdoor » Mon Sep 18, 2023 5:11 pm

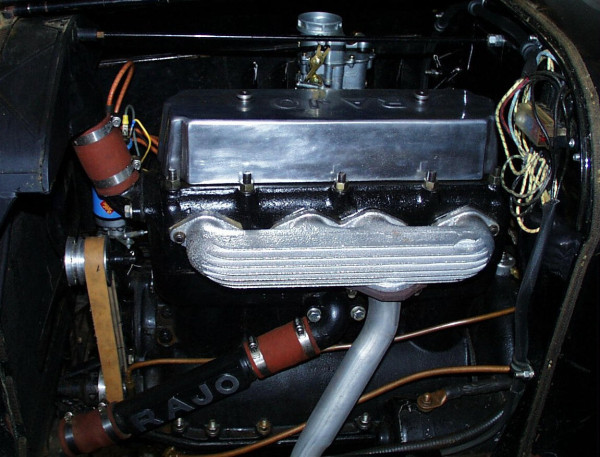

Actually, any competent muffler shop should be able to manufacture you a suitable header.
rajo 2006 right.jpg
Top
User avatar

jelenbaas
Posts: 27
Joined: Sun Jan 06, 2019 5:45 pm
First Name: James
Last Name: Elenbaas
* REQUIRED* Type and Year of Model Ts owned: 1914 Runabout, 1916 Delivery, 1925 Roadster PU, 1926 Speedster
Location: Spokane Valley, WA

Re: Finned RAJO exhaust manifold question

Post by jelenbaas » Tue Sep 19, 2023 10:43 pm

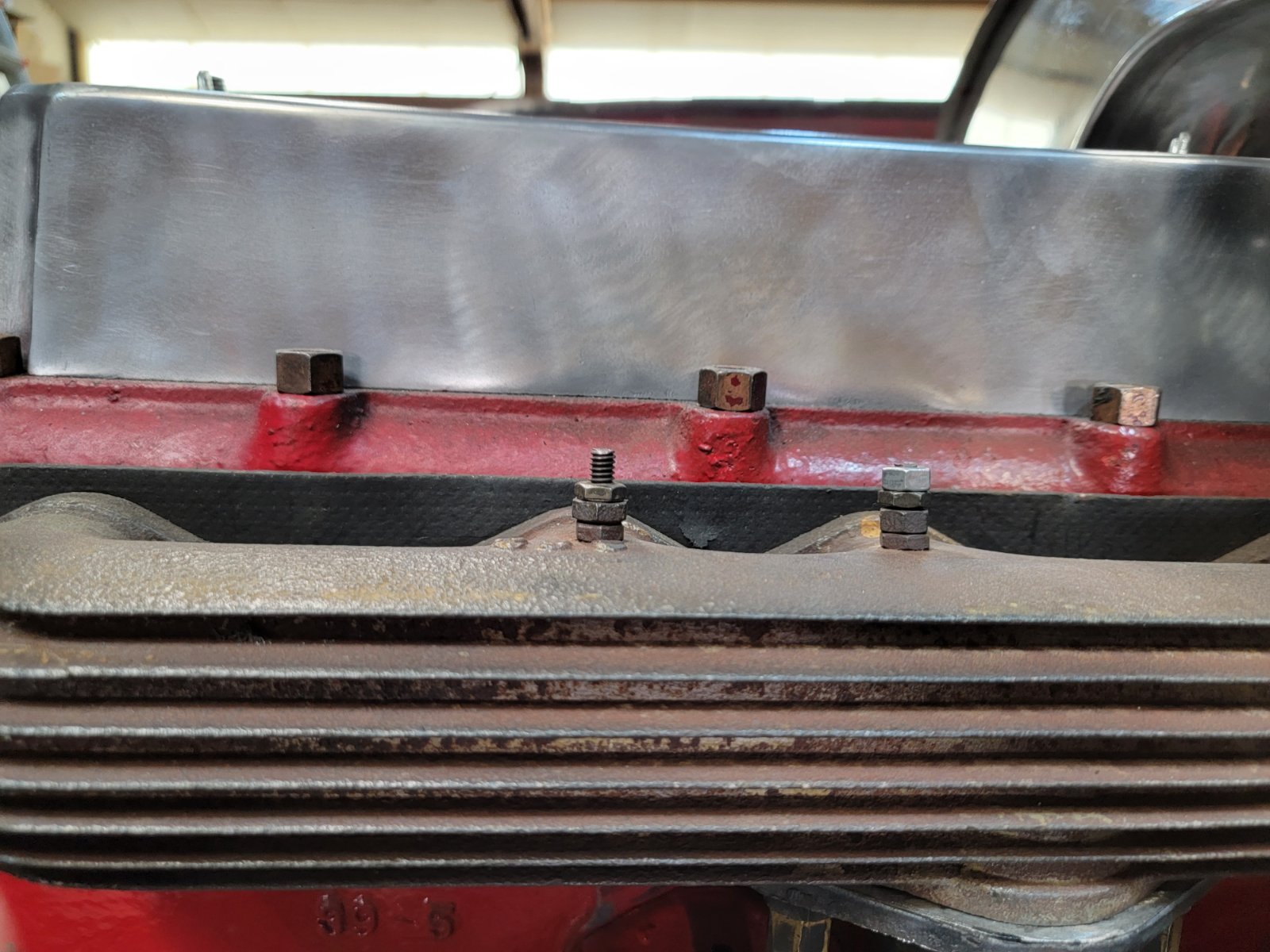

Any idea the purpose of the 2 bolts coming out of the top of the manifold are for?
Attachments
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Finned RAJO exhaust manifold question

Post by speedytinc » Wed Sep 20, 2023 8:02 am

Not stock. Maybe for a carb air heat pipe.
