Spare tire carrier question

Post by Belliott3 » Sun Oct 29, 2023 11:42 am

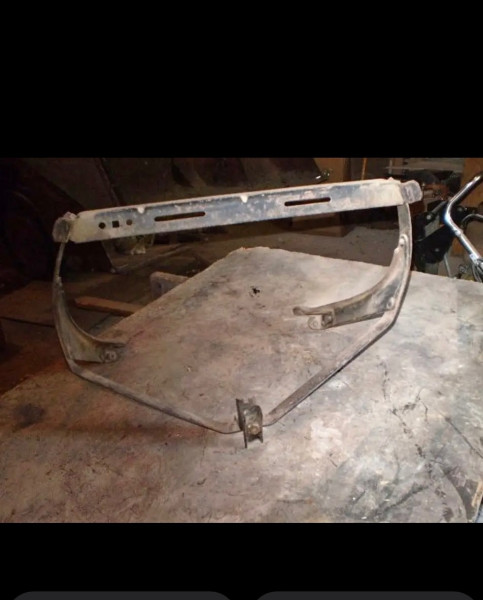

Will the D style spare tire carrier hold a 30x3.5” Demountable rim?
Attachments

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spare tire carrier question

Post by RajoRacer » Sun Oct 29, 2023 11:46 am

Yes - they were produced for either - 21" was available in 1925.

User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Spare tire carrier question

Post by Humblej » Sun Oct 29, 2023 2:12 pm

Looks like a 30x3.5 spare rim carrier.


speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Spare tire carrier question

Post by speedytinc » Sun Oct 29, 2023 2:32 pm

Best I can tell, thats true.
A 21" spare carriers mounting arms have a dip in them to make up for the smaller diameter rim.
You really got to know the subtle difference.
I recently learned the hard way buying a 21" carrier looking for a 30x3.5 unit for a friend.
But, the 21" carrier is so much rarer, being a 1 year install.

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spare tire carrier question

Post by RajoRacer » Sun Oct 29, 2023 3:29 pm

21" carriers are also drilled on both sides for the later style tail lamp & license holder.


speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Spare tire carrier question

Post by speedytinc » Sun Oct 29, 2023 4:08 pm

RajoRacer wrote:
Sun Oct 29, 2023 3:29 pm
21" carriers are also drilled on both sides for the later style tail lamp & license holder.
I will remember this. Thank you.
My 21" doesnt have slots to mount the license plate.
There is a 3/8" hole on both sides to fit a tail light stud & 4 1/4 "holes in a paired pattern between.
