Coil box amperage ?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Modeltmike
Topic author - Posts: 179
- Joined: Sat Mar 09, 2019 5:12 am
- First Name: Mike
- Last Name: Sleep
- * REQUIRED* Type and Year of Model Ts owned: I have 22, 24, 26 coupe, 25 pickup, 23 roadster, 27 touring and 26 Fordson.
- Location: Kansas
Coil box amperage ?
How many amps does a coil box draw. It is my understanding that a single coil should be set at 1.5 amps. Is it as simple as 1.5 x 4 = 6 amps?
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Coil box amperage ?
Only one coil is fires at a time, so only 1.5 amps.Modeltmike wrote: ↑Wed Nov 08, 2023 5:27 amHow many amps does a coil box draw. It is my understanding that a single coil should be set at 1.5 amps. Is it as simple as 1.5 x 4 = 6 amps?
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Coil box amperage ?
1.3 amps per coil if it is adjusted correctly.
-
Mark Nunn
- Posts: 1241
- Joined: Mon Jan 07, 2019 8:01 am
- First Name: Mark
- Last Name: Nunn
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: Bennington, NE
- Board Member Since: 2017
Re: Coil box amperage ?
Instructions for installing an E-Timer say to add a 4 amp fuse to the coil box. Total run amperage needs to be somewhere below that.
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Coil box amperage ?
Only one coil at a time is in operation, and for some of the time during engine operation, no coil is operating. Average coil current during coil operation is in the 1.2 to 1.5 amp range. A 4 amp fuse would be correct, if a fuse is present. Coils behave differently when operating on battery current (6 volts DC) as opposed to magneto (Alternating current, about 5 volts AC to about 30 volts AC) Two coils will fire during each revolution of the engine.
-
Been Here Before
- Posts: 654
- Joined: Mon Oct 07, 2019 2:00 pm
- First Name: George John
- Last Name: Drobnock
- * REQUIRED* Type and Year of Model Ts owned: 1922 Coupe
- Location: Central Pennsylvania
Re: Coil box amperage ?

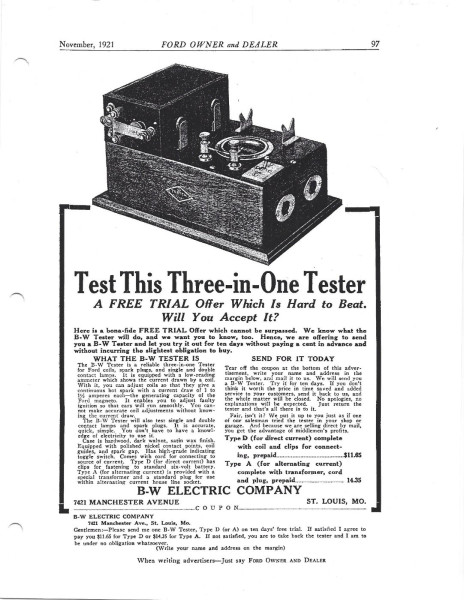

To add to the discussion, and of course be criticized, if you observe your ampere meter, set the ignition switch to battery, and turn your motor by hand crank, with the coil buzzing, you should observe that the meter will show a discharge of about 2 amps, or one line to the left (a discharge). Of course if you use a buzz box with a three ampere meter, you will note a current draw of 1.5 to 2 amperes.
- DSCN1618a.jpg (48.01 KiB) Viewed 1198 times
-
JohnH
- Posts: 367
- Joined: Sun Jan 06, 2019 6:57 pm
- First Name: John
- Last Name: Hunter
- * REQUIRED* Type and Year of Model Ts owned: 1926 Geelong Tourer
- Location: Blue Mountains, Australia
- Board Member Since: 2002
- Contact:
Re: Coil box amperage ?

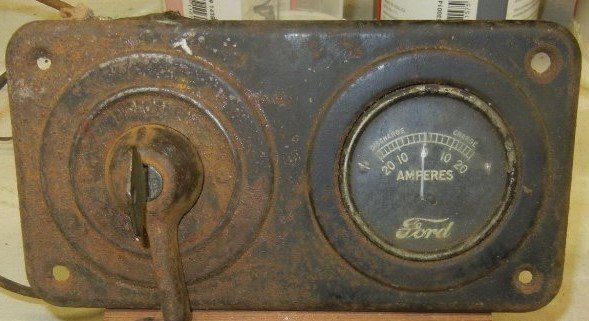

The Ford ammeter installed in the dash is far from a precision instrument, and is certainly not accurate enough to set coil current using the buzz box method. It's just a rough guide that everything is working properly.
The 4A fuse specified for the E-Timer is to protect the E-Timer itself, in case a coil is completely short circuited.
The 4A fuse specified for the E-Timer is to protect the E-Timer itself, in case a coil is completely short circuited.
