Help with Houk wire wheel front hubs

Post by geneabb » Sun Nov 05, 2023 9:53 am

I'm finally getting around to installing a set of Houk wire wheels that I purchased many years ago on my 1926/27 speedster project. There is a shallow cup shaped dust cover that is supposed to be installed on the front hubs and I don't know how it is supposed to be installed. It looks like it goes directly over the bearing, and then the washer and castle nut are installed. But I'm not sure this is correct. Maybe it goes on last?

Can anyone help? Thanks, Gene
Top
User avatar

TRDxB2
Posts: 6261
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Help with Houk wire wheel front hubs

Post by TRDxB2 » Sun Nov 05, 2023 12:06 pm

All I could find
This link references a change in bearings https://www.mtfca.com/discus/messages/3 ... 1365555690
---

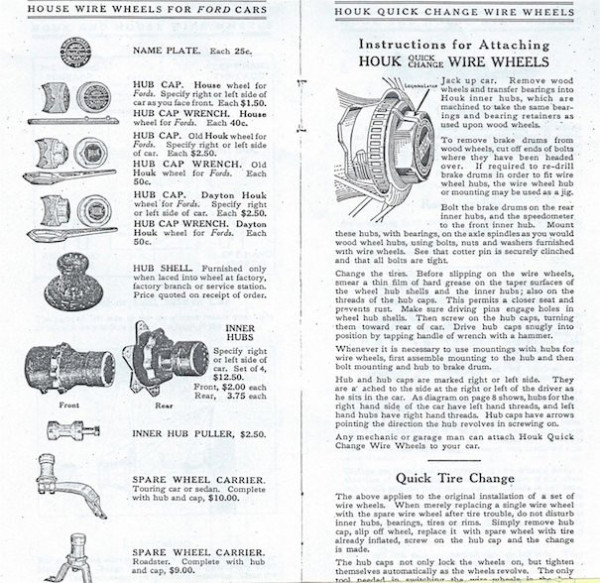

Different source for this
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Dan McEachern
Posts: 1400
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Help with Houk wire wheel front hubs

Post by Dan McEachern » Sun Nov 05, 2023 3:45 pm

You don't really need a dust cover- the bearings / grease pack is well enough protected that a cover is not really needed anyway. Outer bearing, keyed washer, spindle nut, cotter pin, mount the wheel and you're good to go.
Top

Topic author
geneabb
Posts: 32
Joined: Mon Jan 07, 2019 5:23 pm
First Name: eugene
Last Name: abbondelo
* REQUIRED* Type and Year of Model Ts owned: 1926 touring project
Location: union bridge, maryland
Board Member Since: 2018

Re: Help with Houk wire wheel front hubs

Post by geneabb » Mon Nov 06, 2023 9:21 am

Thanks Dan and Frank. I won't use the dust cover. Gene
