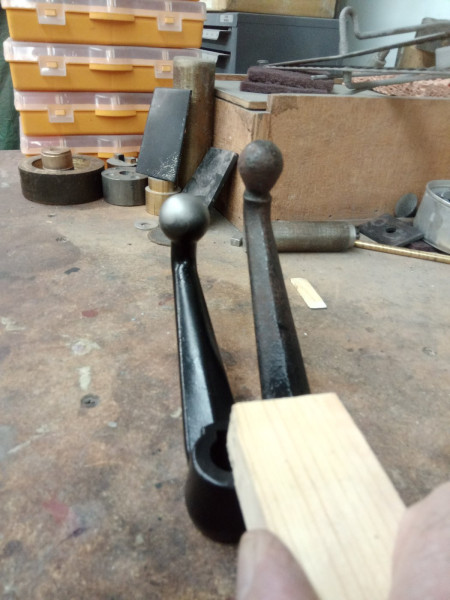

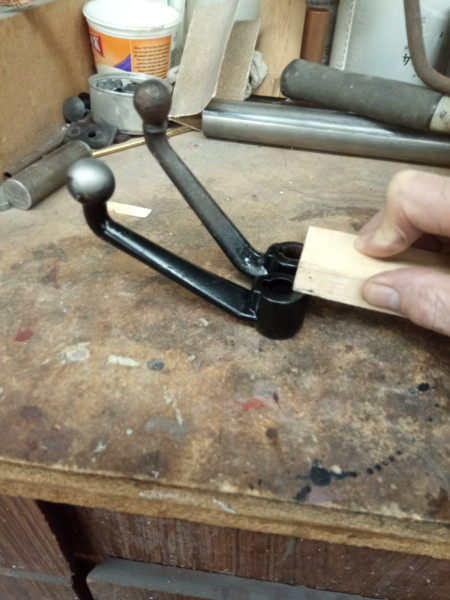

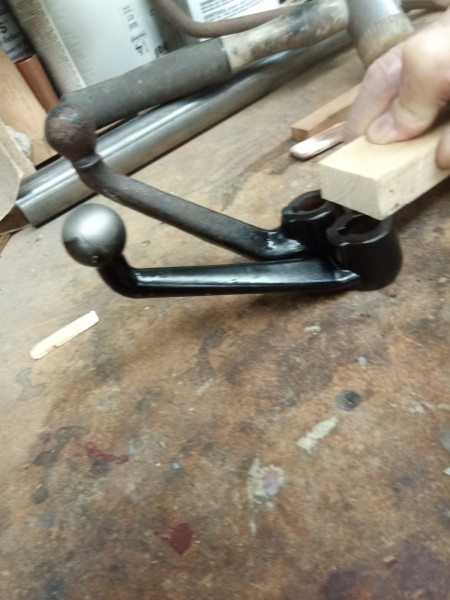

The pictures are of 2 pitman arms I have. The short on is a repro and a very good looking one at that. The long one came off my 1914 steering column. The short one is the same as the one I have on my 1915. I checked the parts books and the same part number is used from 13 through 26 and appears to be the short one. Does anyone know what I have here and even if the long one is even a model T Ford? The ball on the short on is 1” and the ball on the short one appears to be 7/8”
Thank you, Craig
Looking for Pitman arm information
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Craig E. Luton
Topic author - Posts: 183
- Joined: Sun Jan 20, 2019 1:40 pm
- First Name: Craig
- Last Name: Luton
- * REQUIRED* Type and Year of Model Ts owned: 1914 Ford Runabout; 1915 Ford Touring; 1936 Ford Pick-up
- Location: Clancy Montana
Looking for Pitman arm information
- Attachments
-
-
-
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Looking for Pitman arm information

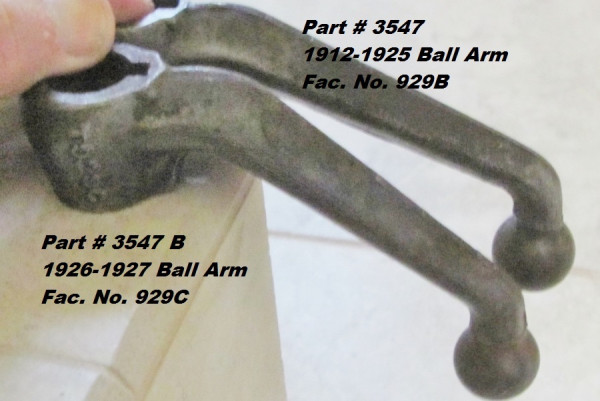

This comparison may help, the ball on your used one is rather worn to egg shape.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Craig E. Luton
Topic author - Posts: 183
- Joined: Sun Jan 20, 2019 1:40 pm
- First Name: Craig
- Last Name: Luton
- * REQUIRED* Type and Year of Model Ts owned: 1914 Ford Runabout; 1915 Ford Touring; 1936 Ford Pick-up
- Location: Clancy Montana
Re: Looking for Pitman arm information
Looks like I have a 26/27 pitman arm on a 13/14 steering column, interesting.
thank you for your reply. Craig
thank you for your reply. Craig
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Looking for Pitman arm information

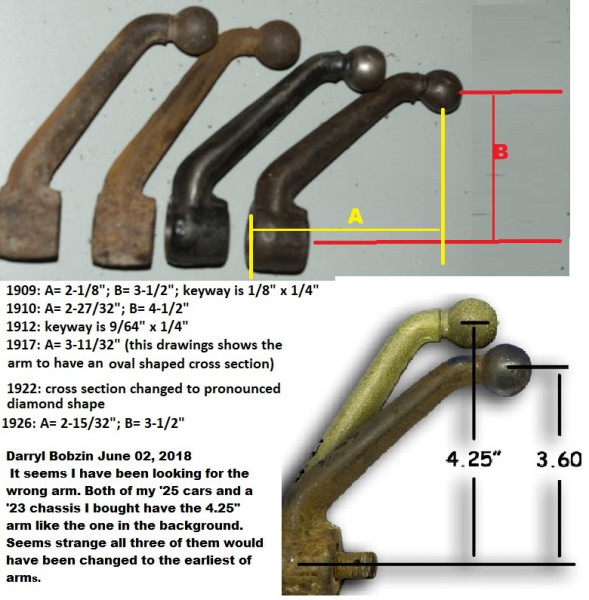

The "ball" on the long one looks pear shaped - if so it may be worn out hence the dimension
From the Forum
From the Forum
- Attachments
-
-

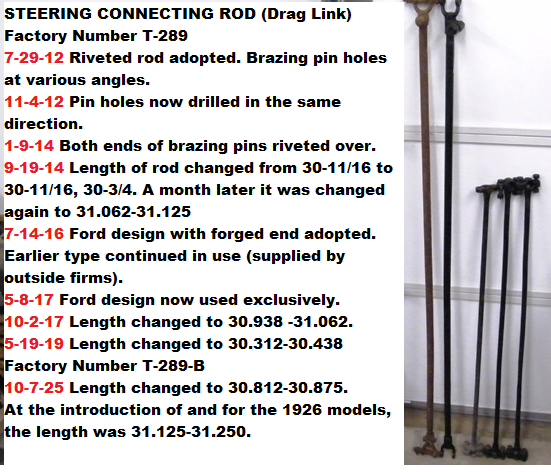

- Drag link.png (162.23 KiB) Viewed 606 times
