I am building a 1926 Single seater speedster.
I am building a new engine from scratch,
what can a do to increase power on the engine
Thanks
1926 Single seater speedster
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Mr Model T Ford
Topic author - Posts: 13
- Joined: Sat Aug 19, 2023 4:01 pm
- First Name: Andre
- Last Name: Wessels
- * REQUIRED* Type and Year of Model Ts owned: 10
- Location: Western Cape / Cape Town / Wellington / South Africa
-
walber
- Posts: 239
- Joined: Sun Jan 06, 2019 12:55 pm
- First Name: Walt
- Last Name: Berdan
- * REQUIRED* Type and Year of Model Ts owned: '18 Speedster had 25 touring and 26 coupe
- Location: Bellevue, WA
Re: 1926 Single seater speedster
Power (speed) costs money. How fast do you wan to go.
a few hundred for a head, cam and carb.
Several thousand + if you want to beat the Wild Cherry on the hill climb.
Can't advise without some parameters for what you want.
a few hundred for a head, cam and carb.
Several thousand + if you want to beat the Wild Cherry on the hill climb.
Can't advise without some parameters for what you want.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 1926 Single seater speedster

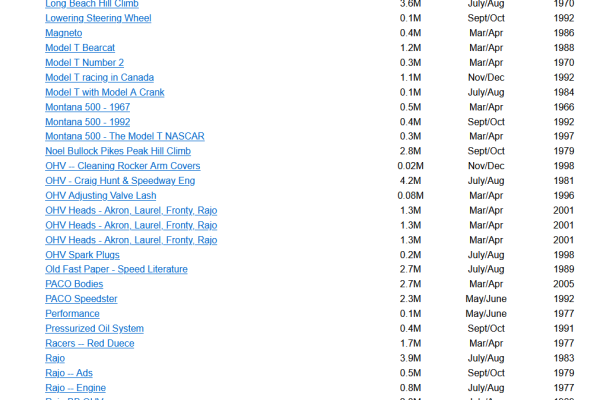

Take a look at these sites you'll need to browse around a lot.
North West Vintage Speedsters
https://www.nwvs.org/Technical/MTFCA/MT ... cles.shtml
just a sample of the index
These are different
https://www.nwvs.org/Technical/MTFCA/Ar ... edster.pdf
https://www.nwvs.org/Technical/MTFCA/Ar ... edster.pdf
Tulsa Model T Club
https://mtfctulsa.com/Tech/
North West Vintage Speedsters
https://www.nwvs.org/Technical/MTFCA/MT ... cles.shtml
just a sample of the index
https://www.nwvs.org/Technical/MTFCA/Ar ... edster.pdf
https://www.nwvs.org/Technical/MTFCA/Ar ... edster.pdf
Tulsa Model T Club
https://mtfctulsa.com/Tech/
- fig1.gif (10.46 KiB) Viewed 2106 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: 1926 Single seater speedster
Fast period correct or economy??
Number one increase the compression.
You can go with hi-dome pistons & a stock low or high head. Or go with stock aluminum pistons & a high compression head.
I highly recommend a Prus & do not recommend a Z head.
Cam: Stipe 280 super or Montana cam. Neither need advancing.
Model A manifolds & carb. Fuel pump or lower the carb.
P.S. a good distributor, Bosch front plate preferred.
Number one increase the compression.
You can go with hi-dome pistons & a stock low or high head. Or go with stock aluminum pistons & a high compression head.
I highly recommend a Prus & do not recommend a Z head.
Cam: Stipe 280 super or Montana cam. Neither need advancing.
Model A manifolds & carb. Fuel pump or lower the carb.
P.S. a good distributor, Bosch front plate preferred.
Last edited by speedytinc on Tue Nov 21, 2023 6:25 pm, edited 1 time in total.
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Re: 1926 Single seater speedster
As stated; how fast do you want to go. How capable are you. Also keep in mind that good brakes and handling are important. I’ve gone 100 mph!!
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 1926 Single seater speedster

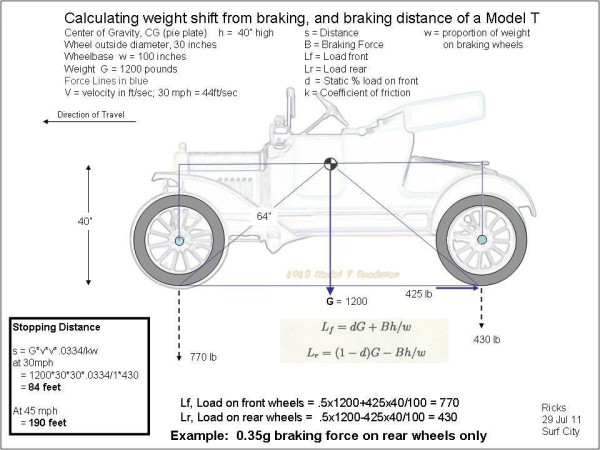

The real question for driving a Model T is how quickly do you want to stop. Once you have figured out how to achieve that stopping distance you can work on your engine performance, if necessary, to match it.
https://www.mtfca.com/discus/messages/3 ... 1368573238
https://www.mtfca.com/discus/messages/3 ... 1368573238
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Mr Model T Ford
Topic author - Posts: 13
- Joined: Sat Aug 19, 2023 4:01 pm
- First Name: Andre
- Last Name: Wessels
- * REQUIRED* Type and Year of Model Ts owned: 10
- Location: Western Cape / Cape Town / Wellington / South Africa
Re: 1926 Single seater speedster
Thank you for all the links.
Can someone send me some video links of how to install a Model A crank in a Model T block please.
Don't seem to find any on YouTube how to install a Model A crank in a Model T block
Thanks
Can someone send me some video links of how to install a Model A crank in a Model T block please.
Don't seem to find any on YouTube how to install a Model A crank in a Model T block
Thanks
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Re: 1926 Single seater speedster
Andre
Two basic options;
1. Shorten the back of the crank
2. Move the block ahead 5/8”
I have done both
Two basic options;
1. Shorten the back of the crank
2. Move the block ahead 5/8”
I have done both
-
Mr Model T Ford
Topic author - Posts: 13
- Joined: Sat Aug 19, 2023 4:01 pm
- First Name: Andre
- Last Name: Wessels
- * REQUIRED* Type and Year of Model Ts owned: 10
- Location: Western Cape / Cape Town / Wellington / South Africa
Re: 1926 Single seater speedster
Thanks LesLes Schubert wrote: ↑Fri Nov 24, 2023 12:26 amAndre
Two basic options;
1. Shorten the back of the crank
2. Move the block ahead 5/8”
I have done both
I think to move the block forward.
I bought the back spacer that takes the vw oil pump and the bigger oil sump for more oil volume.
I live in South Africa / Cape Town - Wellington and baying parts for the Model T is a bid challenge.
The knowledge here by us to install a Model A crank in a Model T block is not available
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Re: 1926 Single seater speedster
You need heavier main bearing caps
With A rods you need special pistons. Some people have cut and welded the bottom of the A rods to the top of the T rods and then used ordinary T pistons
At the front of the A crank I’ve used a “Speedi Sleeve” to cover part of the front key so the packing will work there
With A rods you need special pistons. Some people have cut and welded the bottom of the A rods to the top of the T rods and then used ordinary T pistons
At the front of the A crank I’ve used a “Speedi Sleeve” to cover part of the front key so the packing will work there
