of the mounting bolt circle of the magneto field coil?
If possible I would like to know the dimension from the Ford drawing.
I need to layout the hole pattern for a HCCT spark ring.
Thanks for your help.
- MAGNETO.jpg (30.59 KiB) Viewed 896 times
Magneto Field Coil Dimension
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BE_ZERO_BE
Topic author - Posts: 628
- Joined: Sun Jan 06, 2019 12:27 pm
- First Name: BOB
- Last Name: CASCISA
- * REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
- Location: POULSBO, WA

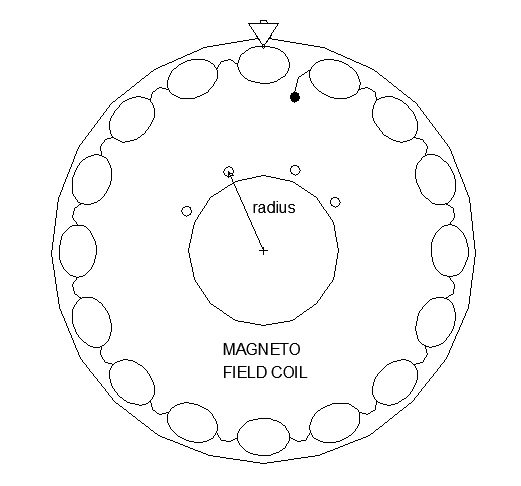

Magneto Field Coil Dimension
Does anyone know the radius (or diameter)
of the mounting bolt circle of the magneto field coil?
If possible I would like to know the dimension from the Ford drawing.
I need to layout the hole pattern for a HCCT spark ring.
Thanks for your help.
of the mounting bolt circle of the magneto field coil?
If possible I would like to know the dimension from the Ford drawing.
I need to layout the hole pattern for a HCCT spark ring.
Thanks for your help.
Respectfully Submitted,
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
-
Dan Hatch
- Posts: 5017
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: Magneto Field Coil Dimension
Check your email. Dan
-
Dan McEachern
- Posts: 1400
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: Magneto Field Coil Dimension
The holes are on a 4.125 bolt circle.
The two holes closest to the pan rail are 8.156 apart
The two top holes are 3.812 apart
This comes out to approx 8.5 degrees and 62.5 degrees from the pan rail on the 4.125 dia BC.
Almost all ford block and part dimensions are fractional dimensions in my experience.
The two holes closest to the pan rail are 8.156 apart
The two top holes are 3.812 apart
This comes out to approx 8.5 degrees and 62.5 degrees from the pan rail on the 4.125 dia BC.
Almost all ford block and part dimensions are fractional dimensions in my experience.
-
BE_ZERO_BE
Topic author - Posts: 628
- Joined: Sun Jan 06, 2019 12:27 pm
- First Name: BOB
- Last Name: CASCISA
- * REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
- Location: POULSBO, WA
Re: Magneto Field Coil Dimension
Dan & Dan,
Thanks for the information.

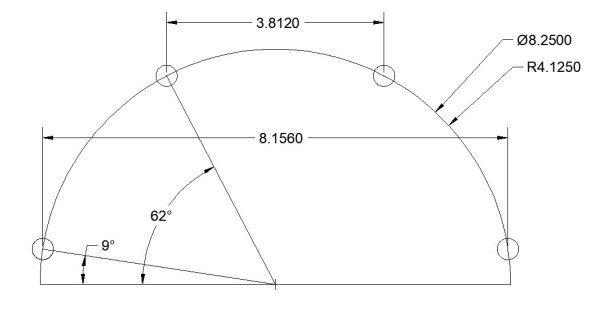

I laid it out in CAD and it is right on.
Thanks for the information.
I laid it out in CAD and it is right on.
