Part I D

Post by fordrelic » Mon Feb 05, 2024 7:32 pm

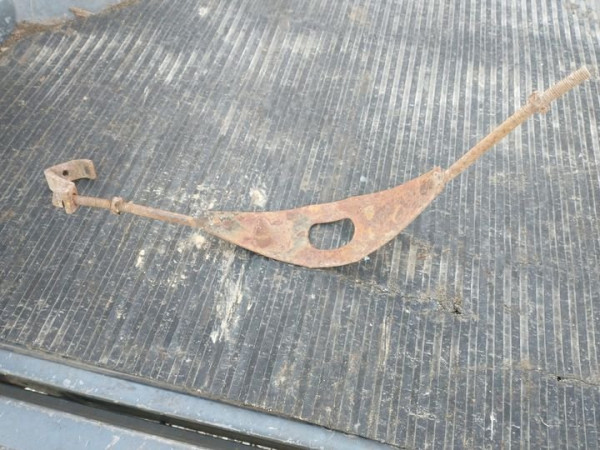

I received this with some model T parts.
Not sure what it is.

Thanks,
Clay
Attachments
tire carrier.jpg
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Part I D

Post by John kuehn » Mon Feb 05, 2024 7:36 pm

Under the engine accessory motor support. Others will comment also.
Top

Norman Kling
Posts: 4634
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Part I D

Post by Norman Kling » Mon Feb 05, 2024 8:35 pm

Relieves the stress on the crankcase ears which sometimes break causing the engine to drop. Those are one way of adding extra support.
Norm
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Part I D

Post by TRDxB2 » Mon Feb 05, 2024 8:43 pm

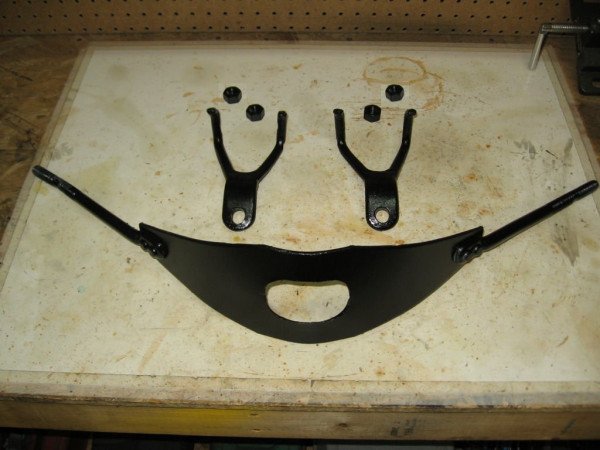

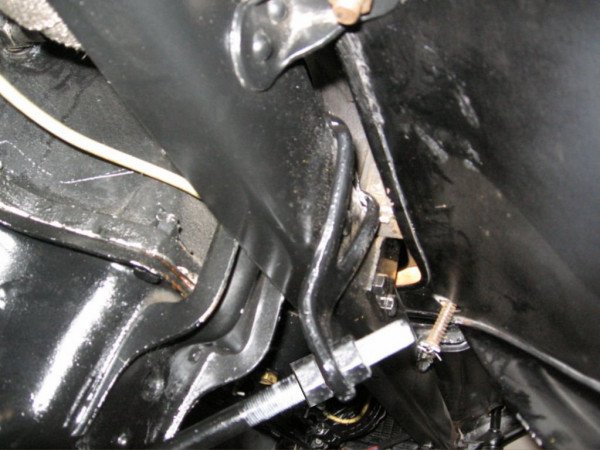

It is an oil pan support strap (aka belly sling), the purpose was to prevent the crank case arms from breakage. Repro's avaiable at Lang's
https://www.mtfca.com/phpBB3/viewtopic. ... w=previous
You are missing the proper hooks that wrapped around the frame.
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Topic author
fordrelic
Posts: 467
Joined: Sat Jan 12, 2019 11:15 am
First Name: Clay
Last Name: Atkins
* REQUIRED* Type and Year of Model Ts owned: 1921 Roadster
Location: Sumner, Il 62466

Re: Part I D

Post by fordrelic » Mon Feb 05, 2024 8:52 pm

Thanks Guys and great pictures.

Clay
Top

jiminbartow
Posts: 2434
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: Part I D

Post by jiminbartow » Mon Feb 05, 2024 10:11 pm

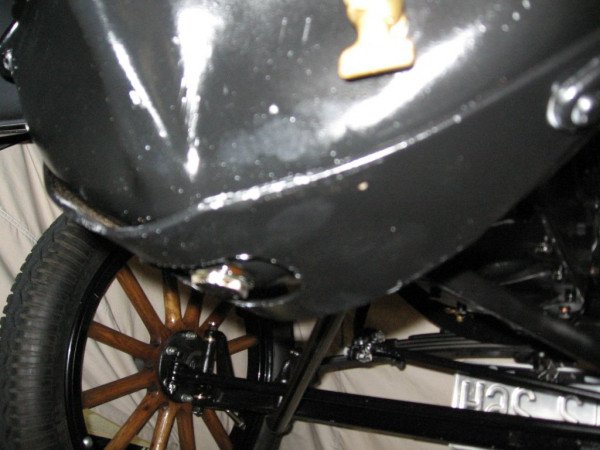

Over time, the pan ears can get weak, causing the engine to sag. This was designed to relieve the pan ears of much of the weight it supports that will prevent the ears from weakening or breaking. Jim Patrick

Attachments
Top

tdump
Posts: 1404
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
* REQUIRED* Type and Year of Model Ts owned: TT. T express pickup,speedster project.
Location: North Carolina

Re: Part I D

Post by tdump » Mon Feb 05, 2024 10:20 pm

Does anyone make just the hooks? I have another girdle but no hooks.I have 1 on both my trucks and would like to put the I have left on the speedster,but no hooks. :cry:
If you can't help em, don't hinder em'
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Part I D

Post by TRDxB2 » Mon Feb 05, 2024 11:06 pm

tdump wrote: ↑
Mon Feb 05, 2024 10:20 pm
 Does anyone make just the hooks? I have another girdle but no hooks.I have 1 on both my trucks and would like to put the I have left on the speedster,but no hooks. :cry:
Call Lang's if someone is make repro's then they the could get hooks
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

NY John T
Posts: 436
Joined: Wed Nov 25, 2020 12:45 pm
First Name: John
Last Name: Killelea
* REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1927 Tudor, 1925 Touring
Location: Northport NY
Board Member Since: 2020

Re: Part I D

Post by NY John T » Tue Feb 06, 2024 9:22 am

Should not be too hard to fabricate
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Part I D

Post by John kuehn » Tue Feb 06, 2024 9:34 am

I agree with NY JohnT
I don’t have any pics of the hooks to post but those aren’t hard to copy and fabricate.
Top
User avatar

Ed Fuller
Posts: 786
Joined: Mon Jan 07, 2019 10:06 pm
First Name: Ed
Last Name: Fuller
Location: NJ
Board Member Since: 2012

Re: Part I D

Post by Ed Fuller » Tue Feb 06, 2024 6:18 pm

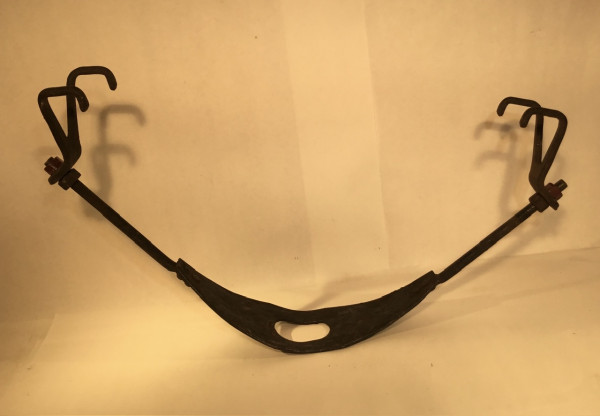

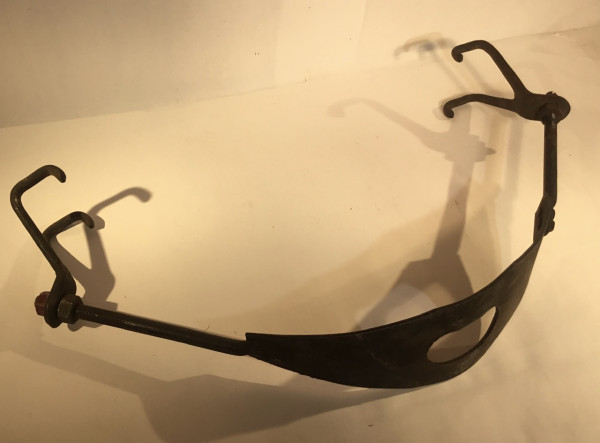

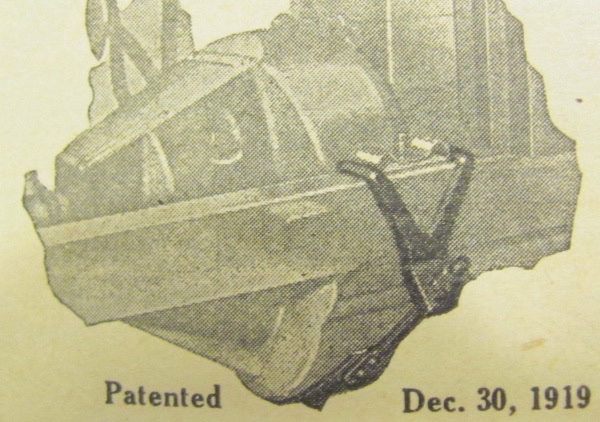

The one hook that you do have is a correct hook. It is the earlier version that was made by the manufacturer. It has been my understanding that the manufacturer switched from the "strap" version to the "forked" version of the hook when Ford began using the diagonal support straps that bolted to the back of the block and went down to the pan mounting ears.

Here is an older forum post about the supports including some original ads.
Top
