Pedal clamp

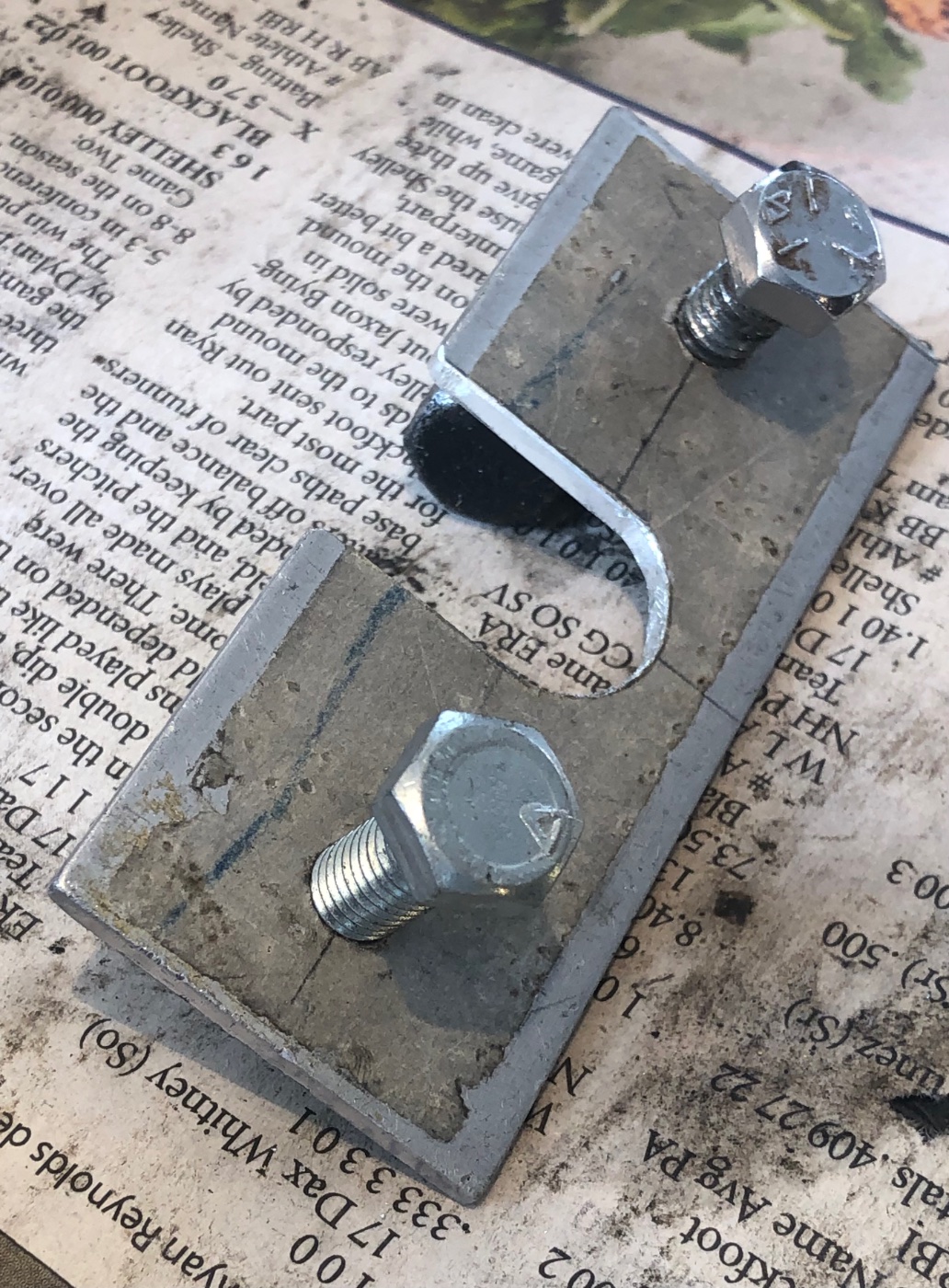

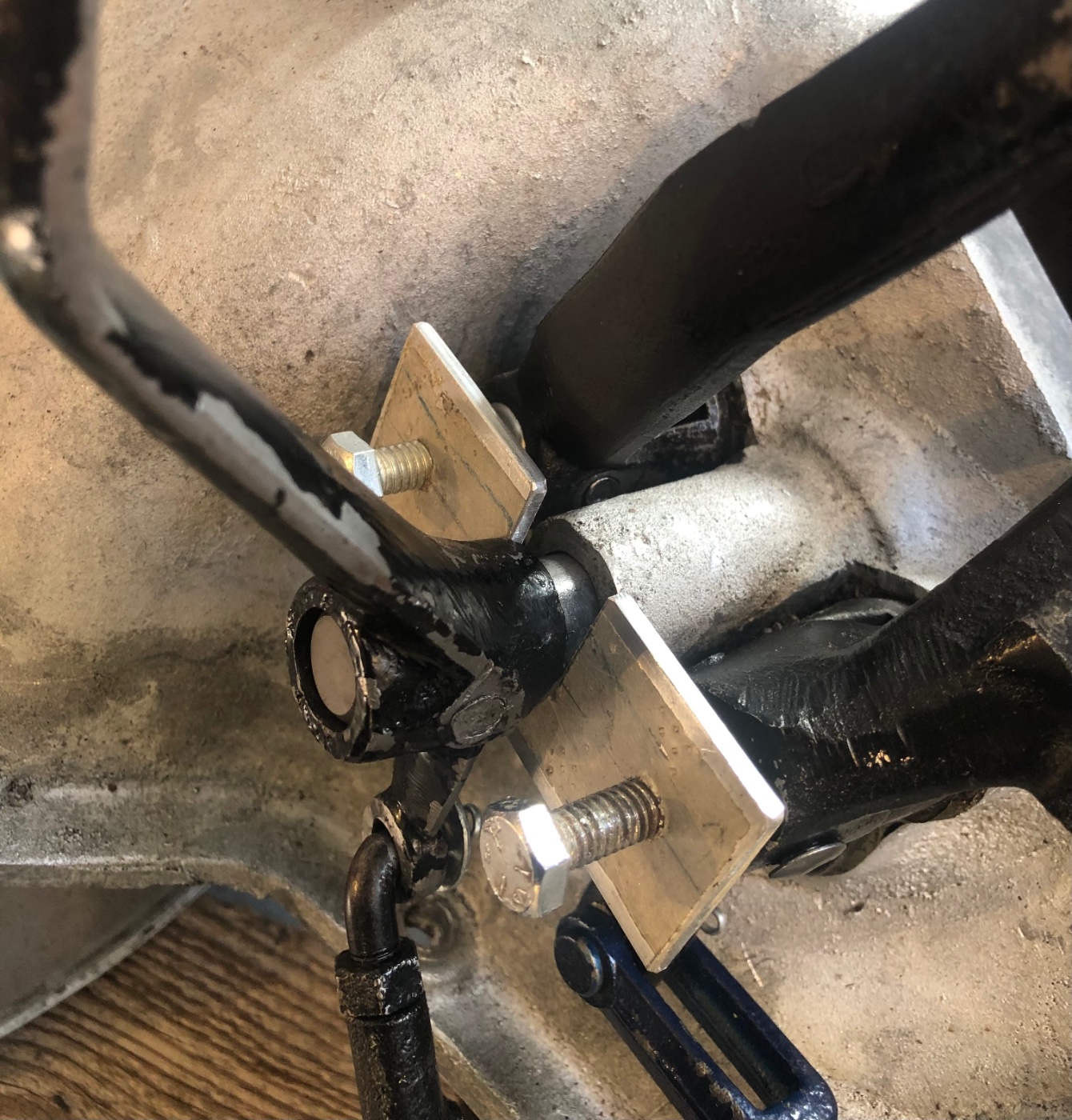

It isn't often we have to pull the hogshead, most owners dread it. One of the difficulties is having pedals flopping all around while you're trying to wrestle the cover into place. I saw this suggestion for a clamp to hold pedals firm against the ramps several years ago. On my current overhaul I've had plenty of time, so I made this one, and was surprised how easy it was to make. Well worth the time invested !
- Attachments
-
Get a horse !
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Pedal clamp
Looks like a good idea. On the left hand drive cars like we use in U.S.A. I remove the brake and reverse pedals and the spring from the low pedal. That leaves only one pedal of concern and also the clutch mechanism.
Norm
Norm
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Pedal clamp
With that tool, the internal adjusting washers/nuts/springs could be fitted to the shafts before fitting the cover. Then you have no chance of dropping stuff into the abyss. great idea.
On our RHD cars there is only one internal adjuster, on the first gear band. When I fit the cover, the band ears are wired to the gap available to accept the pedal spring. This is also done on the first gear pedal, with the nut, wsher and spring already in place.
Allan from down under.
On our RHD cars there is only one internal adjuster, on the first gear band. When I fit the cover, the band ears are wired to the gap available to accept the pedal spring. This is also done on the first gear pedal, with the nut, wsher and spring already in place.
Allan from down under.
-
Ed Fuller
- Posts: 786
- Joined: Mon Jan 07, 2019 10:06 pm
- First Name: Ed
- Last Name: Fuller
- Location: NJ
- Board Member Since: 2012
Re: Pedal clamp
Nice work!

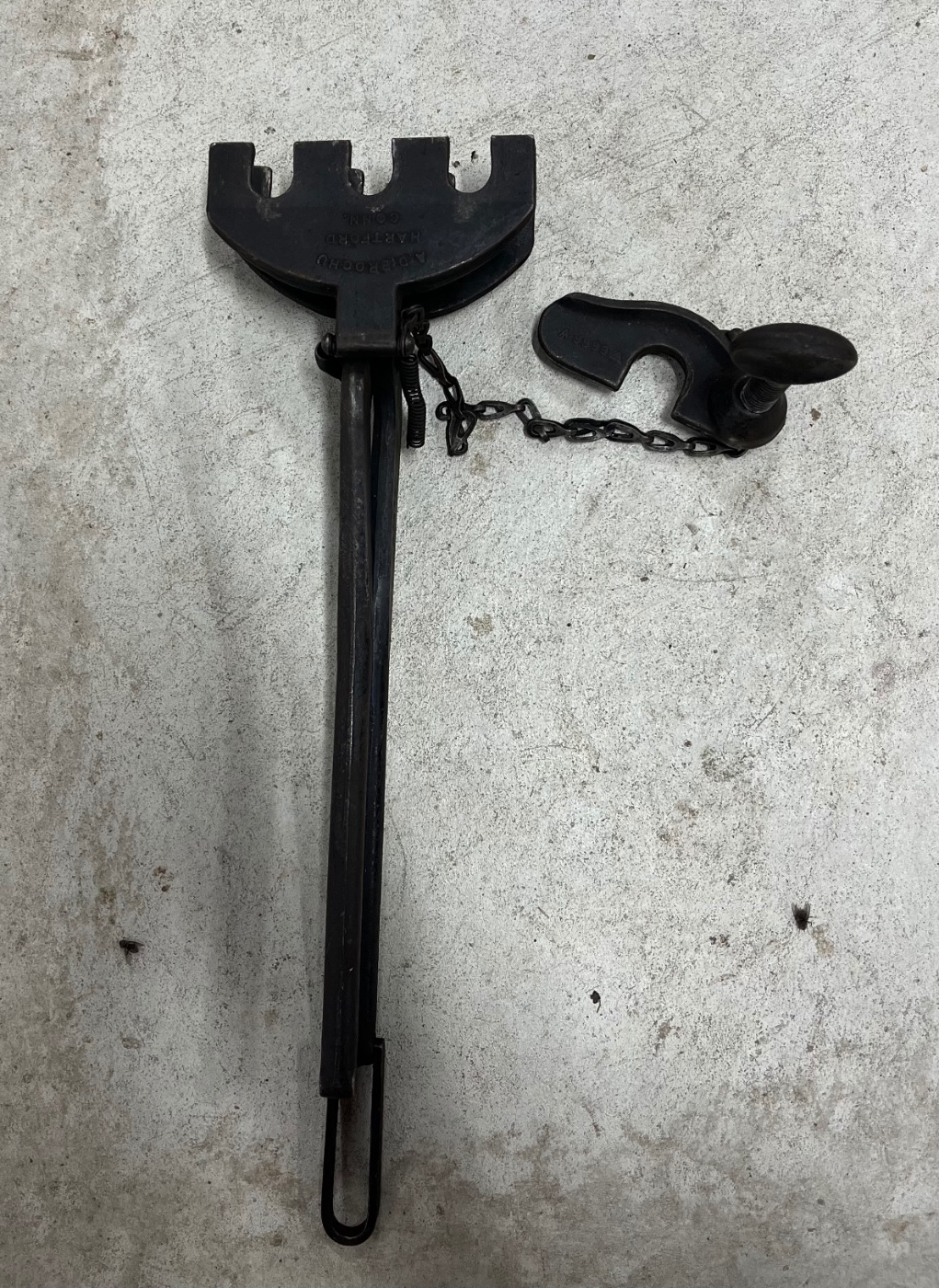

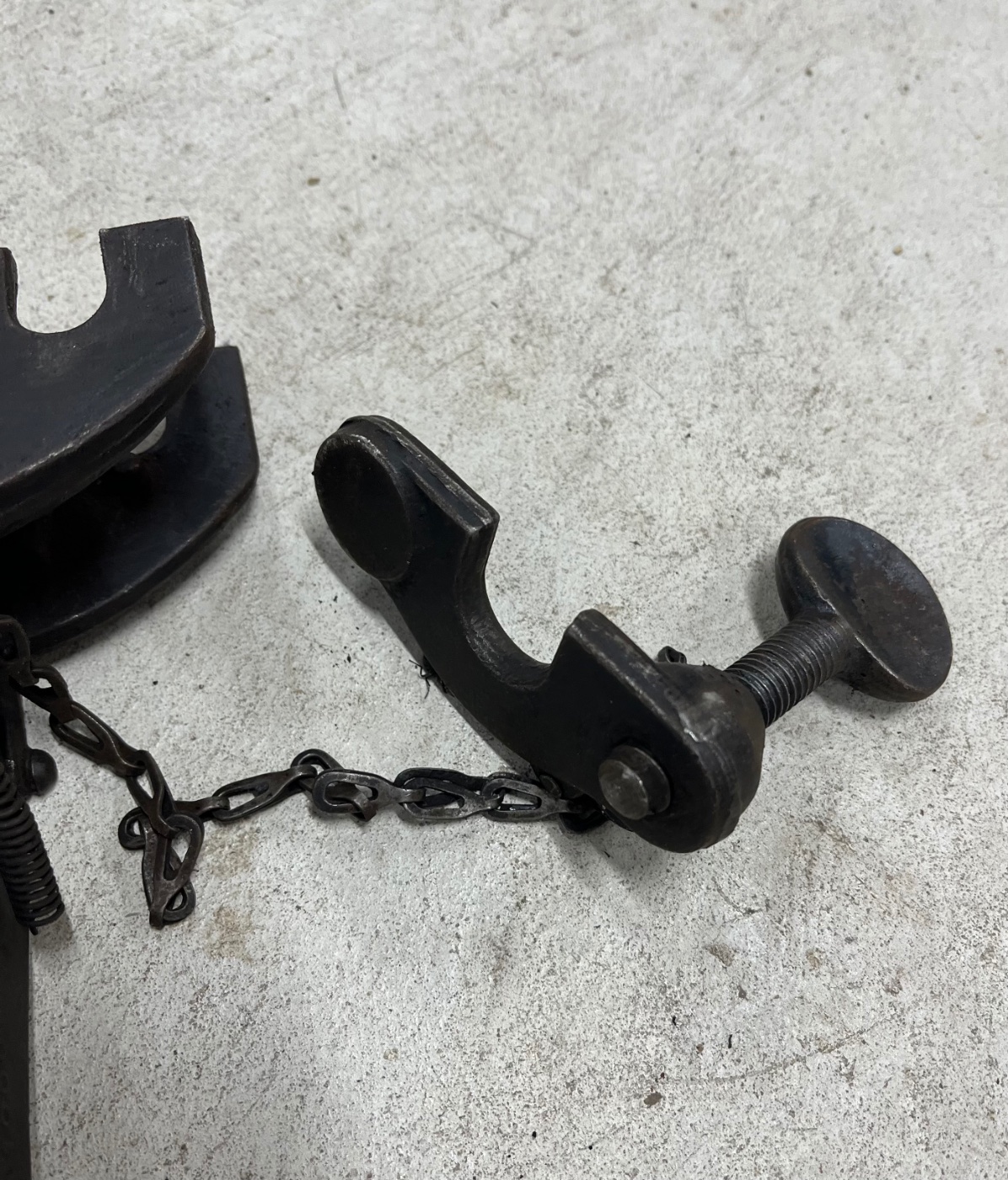

Here is a period version that came with the band spring compressor tool. When used together they make hogshead installation a lot easier. I just wish I could find one for a ‘26-‘27 style hogshead.
Here is a period version that came with the band spring compressor tool. When used together they make hogshead installation a lot easier. I just wish I could find one for a ‘26-‘27 style hogshead.
