What is this body bracket?

Post by NealW » Sat Mar 30, 2024 6:07 pm

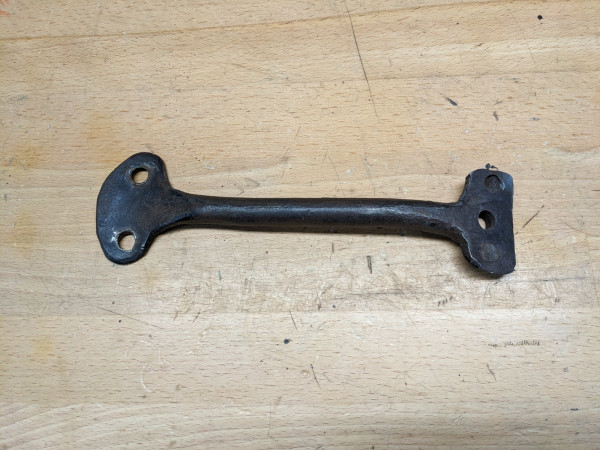

Today I was sorting and consolidating my boxes of T parts, and found this apparent body bracket. It either came with the 1915 or 1911 projects that I restored. There is no part number on it and is about 9" long. I was wondering if anyone can help identify what it is?

Thanks,

Neal
Attachments
mystery bracket.jpg
Top
User avatar

John iaccino
Posts: 818
Joined: Mon Jan 07, 2019 5:25 am
First Name: John
Last Name: Iaccino
* REQUIRED* Type and Year of Model Ts owned: 1911 Roadster, Open Runnabout
Location: Rhinebeck, NY

Re: What is this body bracket?

Post by John iaccino » Sat Mar 30, 2024 6:15 pm

The two dimples and hole on the one side suggest a bracket for later side or tail light.
Top

Wayne Sheldon
Posts: 4249
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: What is this body bracket?

Post by Wayne Sheldon » Sat Mar 30, 2024 6:37 pm

I may be wrong? But if I recall correctly, that bracket has in the past been identified as a tail lamp bracket, one a few designs, intended for TT one ton trucks. What bracket might be used on a truck depended on the style and builder of the body.
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: What is this body bracket?

Post by Allan » Sat Mar 30, 2024 8:06 pm

I suspect it was a bun tail light bracket, but think it is likely hand forged for the job. The light end of most factory brackets is round. The other end of this one is asymmetric and typical of hand forging. This would also explain why there is no part number on it.

Allan from down under.
