Front taper leaf spring arc
Does anyone know the amount of arc the front taper leaf spring had from the factory? Thank you... Craig
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Front taper leaf spring arc

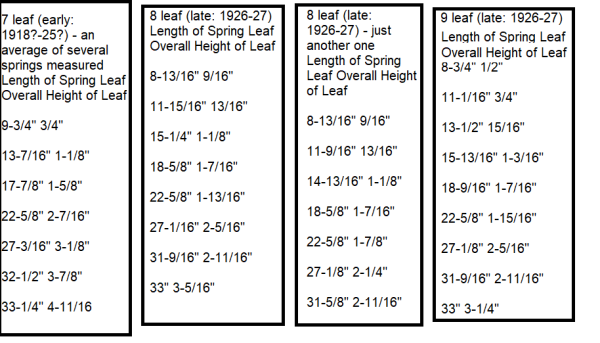

All I have is some data collected from previous discussions. It should be possible to measure the height with a main leaf by compressing its eyelet ends to the correct length (whatever that is for sure). There is agreement on the data for a height of 4-11/16" for lengthsCraig E. Luton wrote: ↑Fri Apr 19, 2024 10:53 pmDoes anyone know the amount of arc the front taper leaf spring had from the factory? Thank you... Craig
- Attachments
-
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Luxford
- Posts: 279
- Joined: Wed Jan 23, 2019 6:30 pm
- First Name: Peter
- Last Name: Kable
- * REQUIRED* Type and Year of Model Ts owned: 1911 Town Car 1913 Speedster 1915 kampcar
- Location: Australia
- MTFCA Life Member: YES
Re: Front taper leaf spring arc
I have a 1926 copy of an Australian spring maker setting chart which gives the measurement for a Model T Ford car front 7 leaf spring between bushing centre's as 31- 5/16 to 1/2 inch.
-
Craig E. Luton
Topic author - Posts: 183
- Joined: Sun Jan 20, 2019 1:40 pm
- First Name: Craig
- Last Name: Luton
- * REQUIRED* Type and Year of Model Ts owned: 1914 Ford Runabout; 1915 Ford Touring; 1936 Ford Pick-up
- Location: Clancy Montana
Re: Front taper leaf spring arc
Thank you....Craig
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Front taper leaf spring arc
Not really important. When I bent each of my spring leafs into an arch in order to strengthen the spring, I didn’t worry about how much I bent it. The spring will find its’ natural arch on its’ own once the spring is attached to the perches, which are a finite distance apart, combined with the weight of the car. Once the car is lowered onto the spring, it can only go so far and no more. The more you bend the spring leaf, the more efficient the spring will be in absorbing the shock.
