Pan bolt tool?

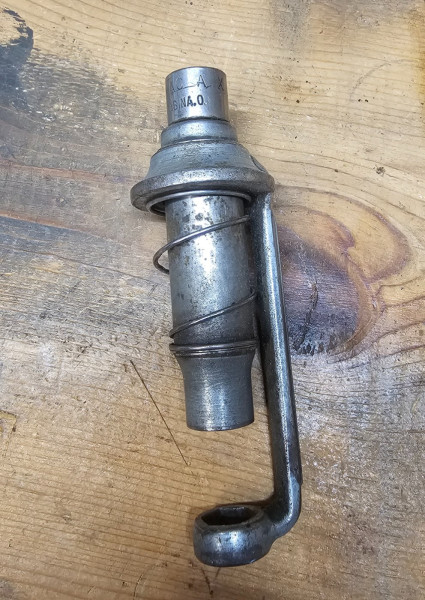

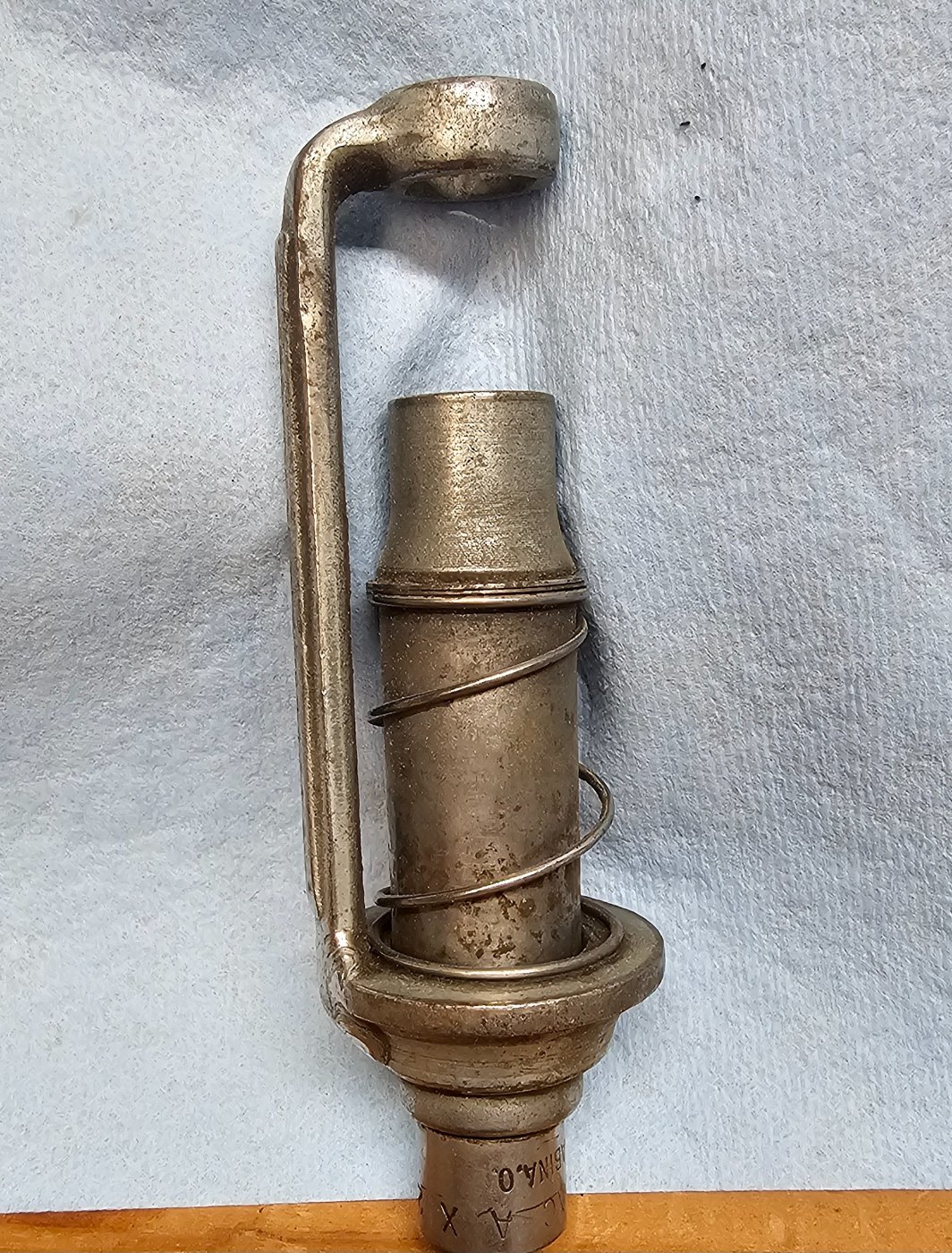

Was given this by a friend. He said that the person who built it said it was for a Model T. The only thing I can think it would be for is the pan bolts. One end of the long tube is a 3/8" drive, the other, near the wrench, is a socket. What do you think?
- Attachments
-
-
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Pan bolt tool?
I expect that would work for all the pan bolts unless you use the engine pans. In that case you leave some of the bolts loose enough to install the pans.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Erik Johnson
- Posts: 1055
- Joined: Mon Feb 04, 2019 10:25 pm
- First Name: Erik
- Last Name: Johnson
- Location: Minneapolis, MN
Re: Pan bolt tool?
That's configured similar to a Model T pan speed wrench.
However, I doubt it is actually for a Model T pan wrench. For one thing, the gap is too great between the socket and the box end. With the spring fully expanded, they should touch.
Also, I don't think the box-end can clear the lip on the bottom side of the pan in order to get a good grip on the bolt. Therefore, in order for it to work, the socket would need to be on the bolt and the box-end would need to be on the nut. That means the ratchet or crank handle would be operated from down below, not up above. That seems impractical to me.
Here is a link to the pan bolt speed wrench that you usually run across:
https://www.mtfca.com/discus/messages/8 ... 1258132457
However, I doubt it is actually for a Model T pan wrench. For one thing, the gap is too great between the socket and the box end. With the spring fully expanded, they should touch.
Also, I don't think the box-end can clear the lip on the bottom side of the pan in order to get a good grip on the bolt. Therefore, in order for it to work, the socket would need to be on the bolt and the box-end would need to be on the nut. That means the ratchet or crank handle would be operated from down below, not up above. That seems impractical to me.
Here is a link to the pan bolt speed wrench that you usually run across:
https://www.mtfca.com/discus/messages/8 ... 1258132457
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Pan bolt tool?
Eric makes some very good observations. The bulk around ring end would prevent its use on a T from either direction. Does it even have a 9/16" opening? That would be a decider.
Allan from down under.
Allan from down under.
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Pan bolt tool?
No disrespect to the tool maker but it seems like it wouldn’t be easy to use. Kind of impractical as Eric J mentioned. It does have a name on the tool and maybe a use could be traced from that? Is the name on the tool the persons name?
-
Chris Barker
- Posts: 318
- Joined: Sun Jan 06, 2019 5:08 pm
- First Name: Chris
- Last Name: Barker
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Somerset, Eng;and
Re: Pan bolt tool?
It seems to me that you would only need it if you have engine pans fitted. And that's when you can't use it!
-
mvweaver
- Posts: 63
- Joined: Sun Jan 06, 2019 12:09 pm
- First Name: Matthew
- Last Name: Weaver
- * REQUIRED* Type and Year of Model Ts owned: 27 Model TT flatbed and 27 Model TT dump
- Location: Arthurdale, WV
Re: Pan bolt tool?
From the looks of it, you would use it to install a bolt and nut on the edge of an assembly. Put the bolt end in the socket through the edge of whatever you are fastening and then the wrench end holds the nut on the other side. As you tighten the bolt with the socket, the nut would follow it in because of the spring. Probably some sort of manufacturing special purpose tool.
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Pan bolt tool?
Petrah,
Put all this speculation to rest and try it out! Let us know what you find.
Put all this speculation to rest and try it out! Let us know what you find.
-
ModelTWoods
- Posts: 1418
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Pan bolt tool?
There was a "back in the day" tool, made that was just for tightening pan bolts, and I have one of those tools. It didn't have a square place for a extension, ratchet, or break over bar. Instead it had a long handle incorporated in it so it was completely operable without any other tools. I don't have a picture of it handy.
