Dill locking wheel

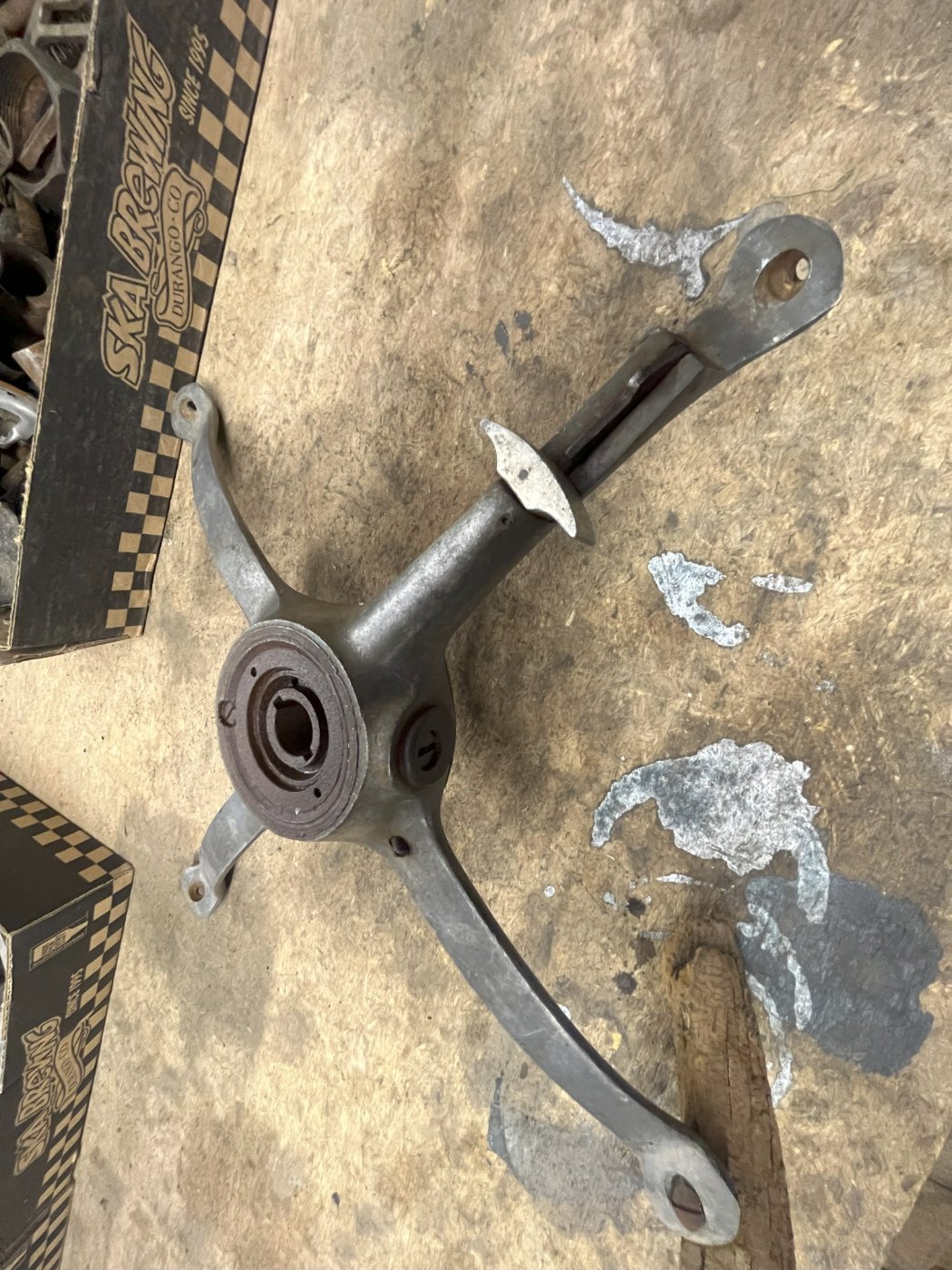

Anybody know anything about these? What to use for a key blank, what the cap looked like, how it works?
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Dill locking wheel
Old discussion loaded with information https://www.mtfca.com/phpBB3/viewtopic.php?t=28385
- Attachments
-
- EDFB73FC-3728-4A56-B894-352EC7F44B32.jpeg (66.79 KiB) Viewed 1071 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
mbowen
- Posts: 420
- Joined: Tue Aug 31, 2021 7:45 pm
- First Name: Miles
- Last Name: Bowen
- * REQUIRED* Type and Year of Model Ts owned: 1925 Express Wagon, 1924 Touring
- Location: Brighton, MI
- Board Member Since: 2021
Re: Dill locking wheel
Mine looks just like the above photo that Frank posted from the old thread. To unscrew the cover you have to turn the set screw out about 3/8 to 1/2 inch until you can turn the cover a full turn. Pressing on any one of the fingers you see under the cover will activate the horn. If you’ve never had the wheel itself off, or if it’s been a long time since it was greased, be prepared to catch about 65 1/8” bearing balls from between the spider and the fixed housing. Fortunately you can get a package of 100 balls from McMaster-Carr for less than $5 (plus about $9 shipping
). I regreased my steering gearbox the other day, and about half the balls stuck to the wheel and the other half to the fixed housing. I found the best way get them accurately relocated is to stick them to the fixed housing. When reinstalling the cover with the horn button, screw it down until the horn blows then back it off a bit and tighten the set screw.
). I regreased my steering gearbox the other day, and about half the balls stuck to the wheel and the other half to the fixed housing. I found the best way get them accurately relocated is to stick them to the fixed housing. When reinstalling the cover with the horn button, screw it down until the horn blows then back it off a bit and tighten the set screw.Miles
1924 Touring “Bonnie”
1925 Express Wagon “Clyde”
1924 Touring “Bonnie”
1925 Express Wagon “Clyde”
-
tvw
Topic author - Posts: 75
- Joined: Sat May 07, 2022 10:36 am
- First Name: Jeff
- Last Name: H
- * REQUIRED* Type and Year of Model Ts owned: 22 touring
- Location: colorado
Re: Dill locking wheel
Anyone know what to use for a key blank?
