I need help installing a mirror on my coupe. How do I remove the hinge pin on the door? I tapped on the pin but It didn't move. I did not hit it very hard. I would appreciate suggestions on how to proceed.
Attached are photos of the mirror and the door hinge.
Installing Mirror on My 1927 Coupe
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BLB27
Topic author - Posts: 892
- Joined: Thu Jul 23, 2020 9:28 pm
- First Name: Bruce
- Last Name: Brakke
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe
- Location: Ames, Iowa
Installing Mirror on My 1927 Coupe
- Attachments
-
-
-
-
-
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Installing Mirror on My 1927 Coupe
Bruce,
Knock the hinge pins out with a hammer and punch.
Knock the hinge pins out with a hammer and punch.
-
Inthegarage
- Posts: 45
- Joined: Sun Jan 06, 2019 4:05 pm
- First Name: John
- Last Name: Mosher
- * REQUIRED* Type and Year of Model Ts owned: 1927 Roadster pick up
- Location: Connecticut
-
ModelTWoods
- Posts: 1418
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Installing Mirror on My 1927 Coupe
Bruce, the hinge pins are knurled about a 1/4" just under the head, so its going to take more than a light tap to get them to move. Even though the tool from Snyder's may be pricey, it does look like a safer way to remove them with out damaging your paint. If this is going to be a one time use tool, you could always reduce the price a bit and resell it to someone else who might need the same tool.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Installing Mirror on My 1927 Coupe
Bruce, I had the same problem when installing those mirrors on my Tudor. To save miss strikes and paint damage I used a centre punch to mark the underside of the pin and drilled a shallow depression . Then I used the same centre punch in that depression and drove the pin out from there. The depression helps to stop the punch migrating.
I ended up ditching the stainless steel mirror heads and their Phillips screws when I located a pair of earlier mirrors from the 1960's.
Hope this helps protect your paintwork.
Allan from down under.
I ended up ditching the stainless steel mirror heads and their Phillips screws when I located a pair of earlier mirrors from the 1960's.
Hope this helps protect your paintwork.
Allan from down under.
-
BLB27
Topic author - Posts: 892
- Joined: Thu Jul 23, 2020 9:28 pm
- First Name: Bruce
- Last Name: Brakke
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe
- Location: Ames, Iowa
Re: Installing Mirror on My 1927 Coupe

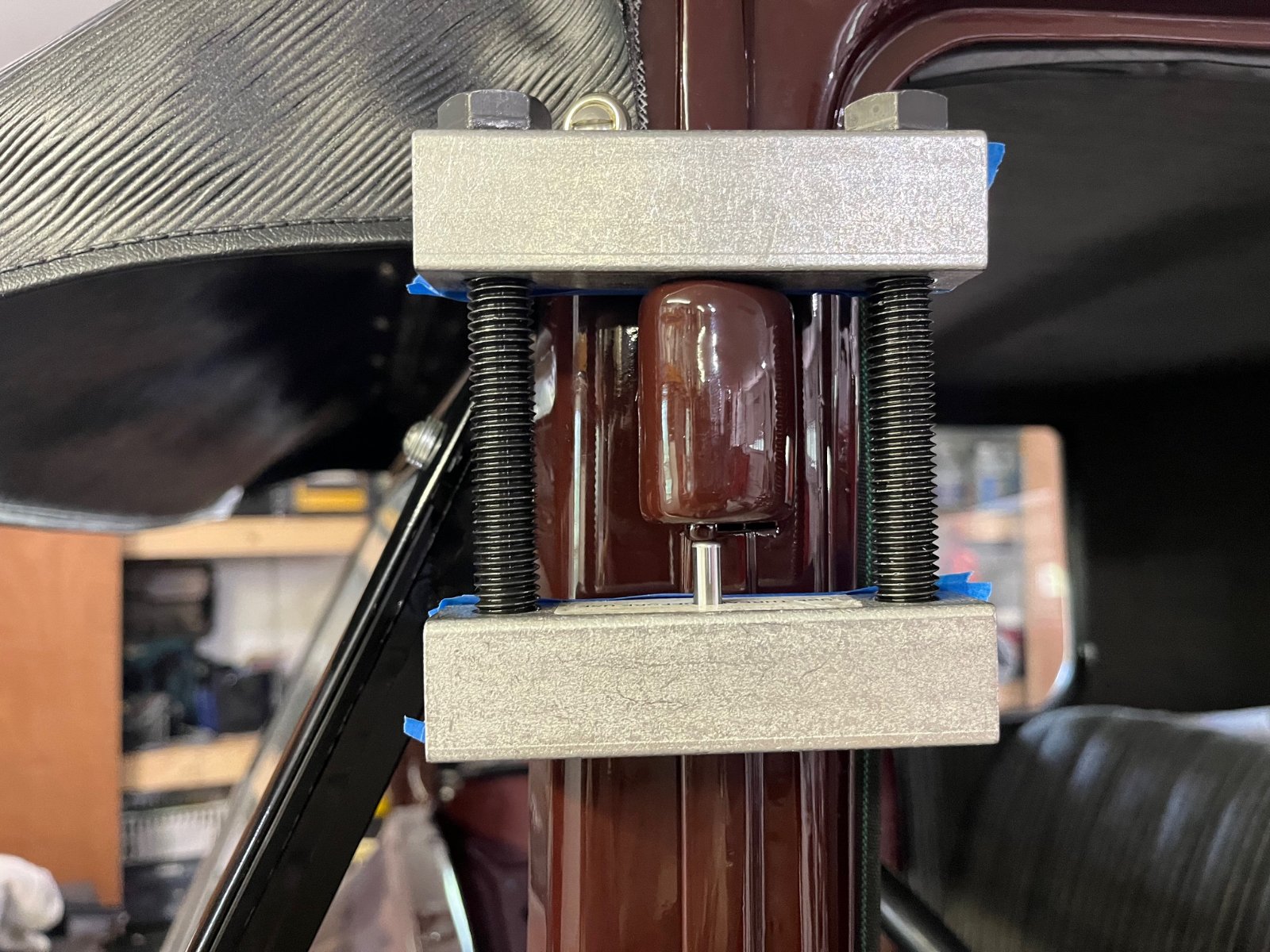

John, Thanks for recommending the "hinge pin removal tool" listed in Snyder's catalog. It worked for me. I did have to increase the size of the center hole slightly to accommodate the size of the hinge pin head. The kit comes with three small pins that are inserted separately into the tool as the bolts are tightened.
It took a "LOT" of torque on the bolts to get the pin to move.
It took a "LOT" of torque on the bolts to get the pin to move.
