Transmission Band Lining

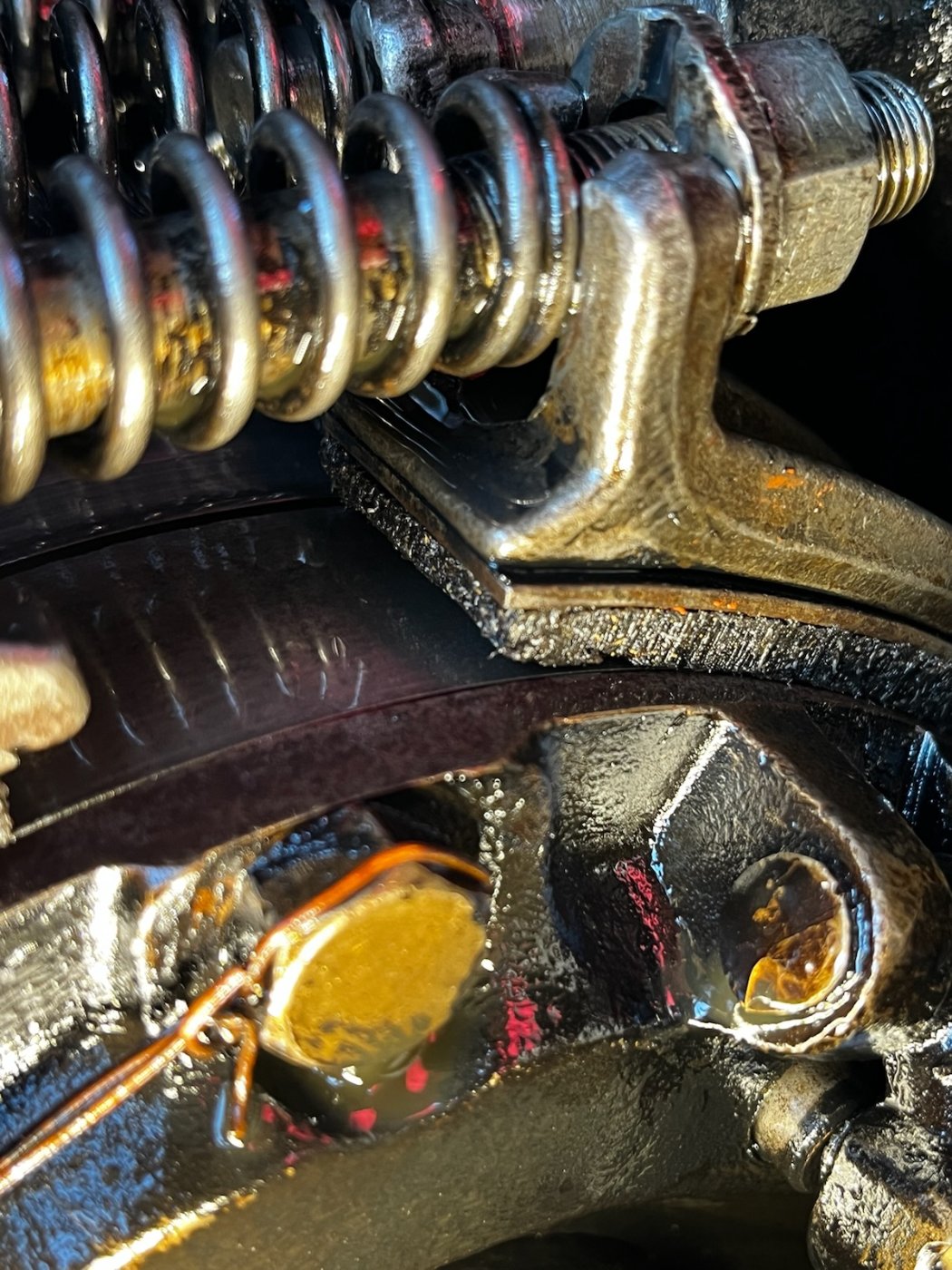

Came across this picture of questionable material used for band lining...... Woven textile, kevlar, wood, modern auto trans molded ???????
- Attachments
-
- Lining material ?
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Transmission Band Lining
Pretty sure it ain't Kevlar. I'm voting for wood even tho I've never had any experience with wood bands
-
Kevin Pharis
- Posts: 1560
- Joined: Thu Jan 10, 2019 3:54 pm
- First Name: Kevin
- Last Name: Pharis
- Location: Sacramento CA
- Contact:
Re: Transmission Band Lining
Looks like there might be a faint glimmer of a few copper strands… that would make this Model A brake lining. Word on the street is this stuff is hard on drums. Others may have personal experience…
-
23ford
- Posts: 185
- Joined: Sun Jan 06, 2019 1:53 pm
- First Name: Warren
- Last Name: Webb
- Location: Owasso OK
Re: Transmission Band Lining
Looks like caterpillar band lining material that was popular in the 1970's.
Felix Graves promoted this and sold to several people. My 21 RPU is running this
Felix Graves promoted this and sold to several people. My 21 RPU is running this
-
Daisy Mae
- Posts: 348
- Joined: Mon May 06, 2024 9:32 pm
- First Name: Kurt
- Last Name: Andersson
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring
- Location: Panama City Beach, FL
Re: Transmission Band Lining
Kevin, same thought, looked like brake band material to me
Call me anything you want...just so long as it isn't "late for dinner"
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Transmission Band Lining
With what appear to be angled saw cuts on the edge, I would guess it is an oil soaked wood band. I don’t think such saw cuts would exist in softer band material. Also, the lack threads or frays indicate it is not any kind of woven material.
-
jsaylor
- Posts: 411
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: John
- Last Name: Saylor
- * REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1927 Tudor
- Location: Citrus Heights, Ca
- Board Member Since: 1999
Re: Transmission Band Lining
I ran some of that hard bonded lining back in the 60's. Its was hard on the drums. I changed to Kevlar when it came out. I still have the set up on a shelf. I have not had success removing the bonded stuff from the bands.
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Transmission Band Lining
You can probably get a pan big enough to hold all three bands and get a gallon of strong solvent such as MEK, Acetone, or Xylene and pour it over the bands and just let them sit until the linings fall off. Covering the pan to make it as air tight as possible would slow the evaporation of the solvent.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Transmission Band Lining
Did you do this while checking the bands or was it already that way?
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Moxie26
Topic author - Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Transmission Band Lining
The picture shows what we saw when the inspection cover was first taken off
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Transmission Band Lining
Good catch.
Obviously you need to address the non locking detent situation.
Obviously you need to address the non locking detent situation.
-
Moxie26
Topic author - Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Transmission Band Lining
Previous owner did not know about the locked position of band's adjustment
