Bolt thread pitches

Post by 1925 Touring » Fri Jul 12, 2024 8:50 pm

I am looking for a chart or something that lists proper thread pictures and sizes for the Model T. I have numerous bolts and nuts I would like to use a tap and die set on but do not have a gauge and could not find what I was hoping for on the website. Specifically I am looking for the size of the U joint 4th Main on the back of the transmission. A general idea on the rest will be wonderful too. Thank you!
Just a 20 year old who listens to 40 year old music, works on 75 year old airplanes and drives 100 year old cars.
The past is only simple because hindsight is 20/20.
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Bolt thread pitches

Post by DanTreace » Fri Jul 12, 2024 8:56 pm

On right top corner of this Forum page is the camera icon for Gallery, open that and scroll to Bolt Charts. Lots of thread and length info and where used.

Sample part of Gallery pages showing ball cap screw 4th main.


The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Bolt thread pitches

Post by Jerry VanOoteghem » Fri Jul 12, 2024 9:03 pm

I believe the 4 bolts at the fourth main are 3/8-24.
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Bolt thread pitches

Post by speedytinc » Fri Jul 12, 2024 9:17 pm

There are quite a few errors on this bolt chart.
Top
User avatar

Oldav8tor
Posts: 2246
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
* REQUIRED* Type and Year of Model Ts owned: 1917 Touring
Location: Thumb of Michigan
Board Member Since: 2018

Re: Bolt thread pitches

Post by Oldav8tor » Sat Jul 13, 2024 9:52 am

Possible errors notwithstanding, Adrian is to be commended for such an effort. If we share any errors with him as they are found, it will become the ultimate fastener guide for the Model T.

Back to your question: Remember, two of the bolts on the 4th main have drilled heads for safety wire - the other two are drilled for castle nuts and cotter pins.
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Bolt thread pitches

Post by TRDxB2 » Sat Jul 13, 2024 12:09 pm

Shape helps ID too
--
p 25.jpg

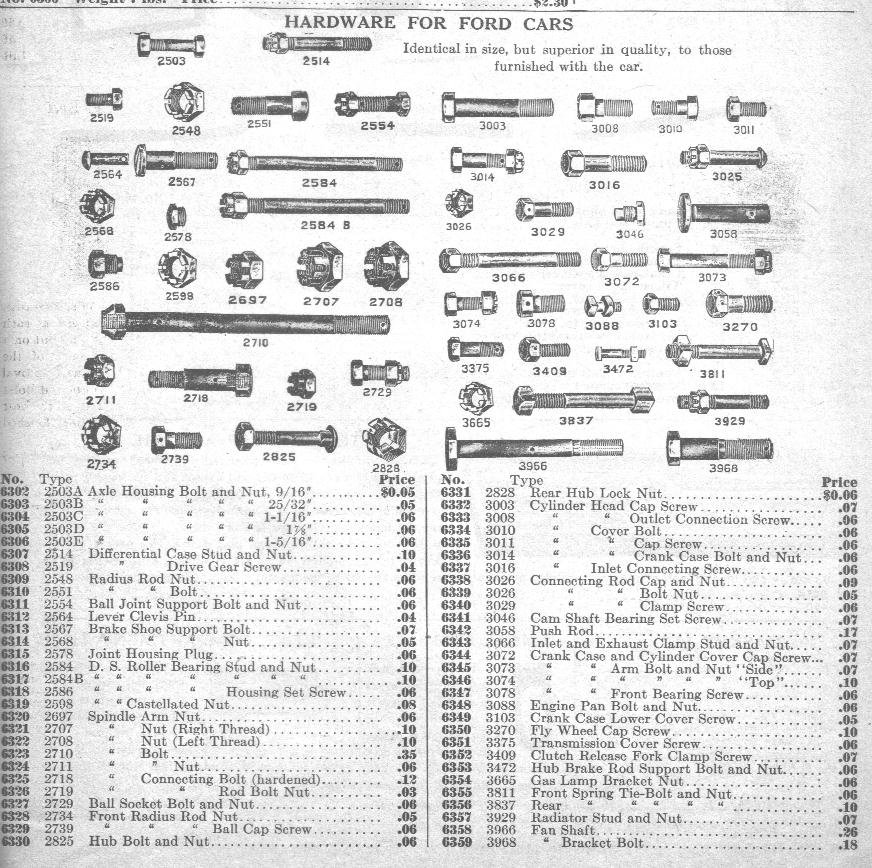

Hardware Part Numbers.jpg
--

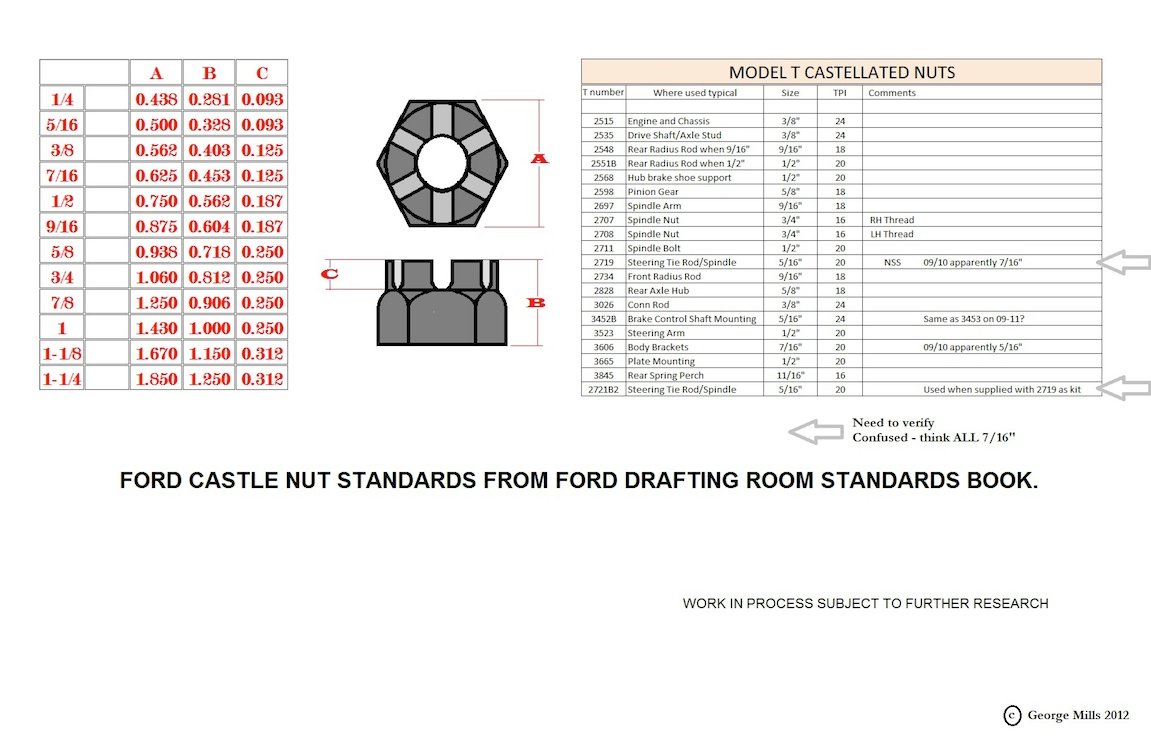

Castellated Nuts.jpg
--
Cotter Pins.jpg
--
--
This chart identifies tool part numbers and the size of the bolts' head/nut
--
NUTS & BOLTS j.jpg
