Anyone ever see this type of timer brush?
When I originally designed the carbon brush timer, I had looked at a lot of various designs and wanted to make one that would required less maintenance including no lubrication.

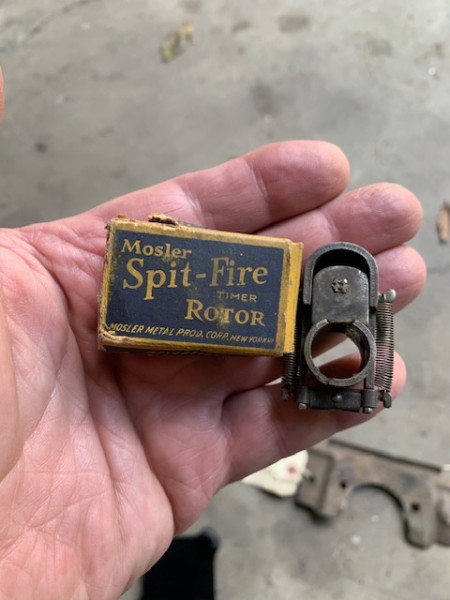

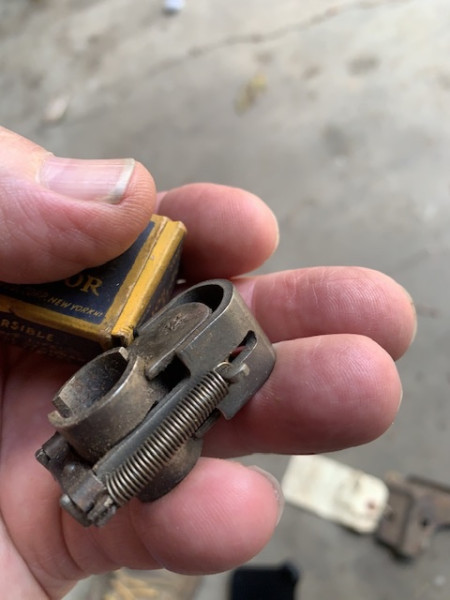

Fast forward to today… I was sorting through a trailer load of parts I picked up and found these in the bottom of a box. Anyone ever seen this style before? What type of commutater housing was used?
Fast forward to today… I was sorting through a trailer load of parts I picked up and found these in the bottom of a box. Anyone ever seen this style before? What type of commutater housing was used?
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Anyone ever see this type of timer brush?
Never seen it before but looks like it would work well on a normal roller timer. Similar to the infamous TW timer in a way, which I swear by. Give it a try!
- Attachments
-

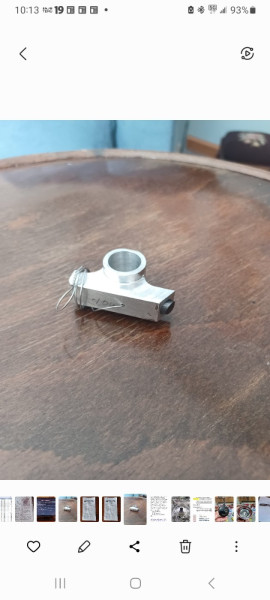

- TW timer brush holder showing brush mounted inside prior to installation. The brush is spring loaded to always maintain good contact inside the commutator (timer)
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Tim, it looks like it would work on a roller timer but not sure how it would wear. I’ve got to determine what the brush is made of. It’s not carbon, brass or copper on 1st inspection.
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Anyone ever see this type of timer brush?
I got a hunch the inner black ring of the roller timer will wear faster than the brush(es) you're holding. The ring seems to be of a bit softer material than that of which was used in "Tony's timer", which I believe to be Micarta. I have a sheet of Micarta that I bought last year in hopes or in case it's needed to have new rings made. So far getting someone with a CNC machine to carve them out at a reasonable cost is the hold up. My sheet is big enough to make 9 rings. I wonder if those brushes are just some sort of steel.Kenny Edmondson wrote: ↑Thu Sep 19, 2024 6:11 pmTim, it looks like it would work on a roller timer but not sure how it would wear. I’ve got to determine what the brush is made of. It’s not carbon, brass or copper on 1st inspection.
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Tim, the “brush” is a ferrous metal. Can’t imagine the timer commutator lasting long but might try one just to see what happens. And as usual, I’ll carry a spare.
-
Dan Hatch
- Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: Anyone ever see this type of timer brush?

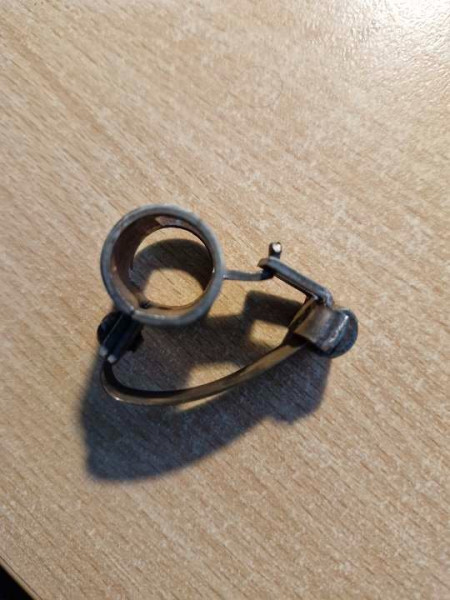

Kind of like these. They run good in a regular Ford style timer.
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Dan, that one is interesting as well.
-
Aussie16
- Posts: 263
- Joined: Sat Jan 05, 2019 9:24 pm
- First Name: Warwick
- Last Name: Landy
- * REQUIRED* Type and Year of Model Ts owned: 1916 RHD Canadian Touring 1916 Pickup 1926 Fordor 1925 Dalgety Tourer 1916 Speedster
- Location: Trarlagon Victoria Australia
Re: Anyone ever see this type of timer brush?
I kind of like this version. There was a guy selling them new from the classifieds section. Works on a standard roller timer and scrapes over like a wiping brush. I have not tried it yet as I have an Anderson and an I timer on both the cars I drive regularly and so far both have functioned maintenance free and reliable operation for many miles.
- Attachments
-
-
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Warwick, I thought about one like that when I was 1st thinking of the carbon brush timer designs. That one is interesting also.
