1915-1916 Butterfly Firewall Bracket....
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
VowellArt
Topic author - Posts: 579
- Joined: Sun Jan 06, 2019 8:44 am
- First Name: Martynn
- Last Name: Vowell
- * REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
- Location: Sylmar, Commiefornia
- Board Member Since: 2012
- Contact:
1915-1916 Butterfly Firewall Bracket....
I'm trying to finish my 15-16 Firewall Assembly and I've come across a bracket called the "Butterfly Bracket" in Lang's website catalog. Does anybody know where this little bracket goes? I can't for the life of me find anyplace on the firewall that this thing would fit (or might be needed). Is it an anti-rattle bracket like the splash apron has for both rear and front fenders? Or does it go somewhere near the floorboard riser? Although I can't see how that would work either.
Fun never quits!
-
TrentB
- Posts: 205
- Joined: Wed Jan 09, 2019 12:19 am
- First Name: Trent
- Last Name: Boggess
- Location: New Hampshire
Re: 1915-1916 Butterfly Firewall Bracket....
There are two used on each car. They are located near the bottom of wood fire walls ( dash) between the firewall and the floor board riser.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 1915-1916 Butterfly Firewall Bracket....

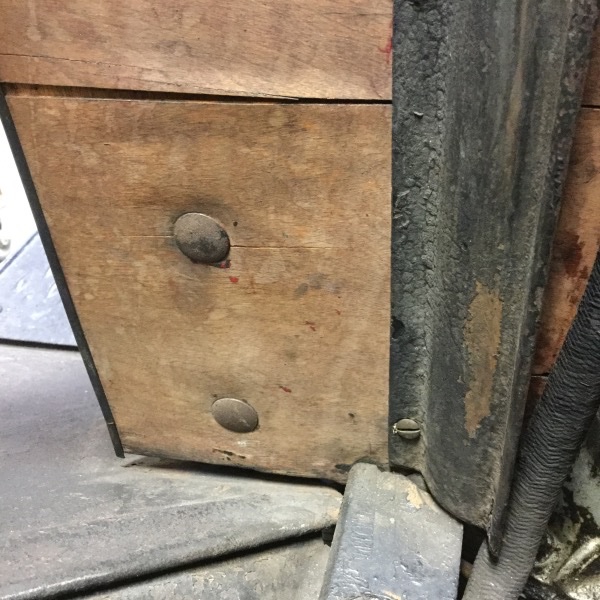

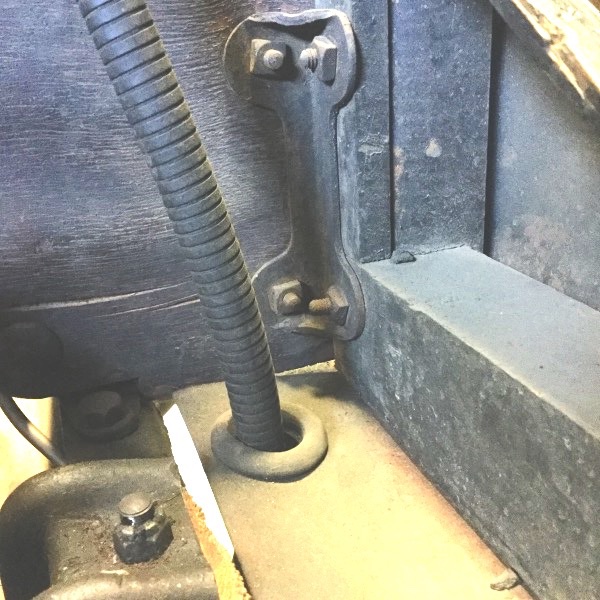

Photo of location and bolt and nut types.
- bracket.jpg (139.97 KiB) Viewed 932 times
- bracket2.jpg (157.46 KiB) Viewed 932 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: 1915-1916 Butterfly Firewall Bracket....
Are they still used on 1915 cars with the metal cowl?
Allan from down under.
Allan from down under.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: 1915-1916 Butterfly Firewall Bracket....
Dan's photos are of an earlier car than 1915. They show a separate hood former with no metal cover over the firewall, and the first photo shows the earlier pan arm with the tapered down outer ribs on top. By the time the 1915 bodies with their metal covered firewalls came along, I think the butterfly brackets were not needed. It was 1992 that I finished restoring my 1915 tourer, so my memory may not be correct.
Allan from down under.
Allan from down under.
