Unknown 5Z tool.

Post by Pep C Strebeck » Mon Nov 25, 2024 5:21 pm

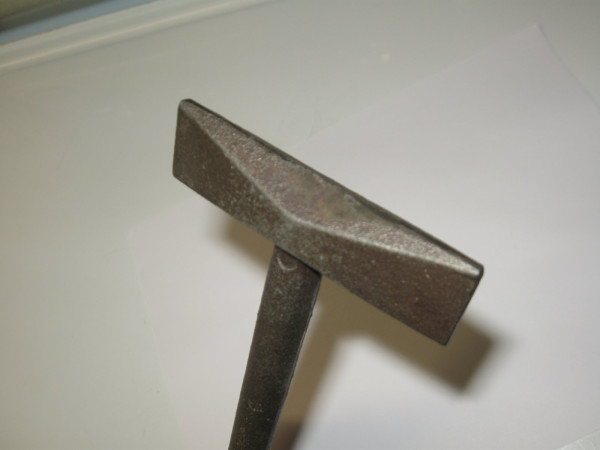

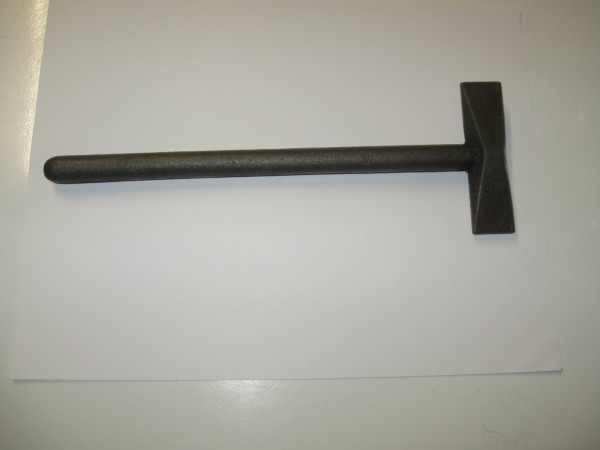

O.K. here is recent find marked with a 5-Z number:

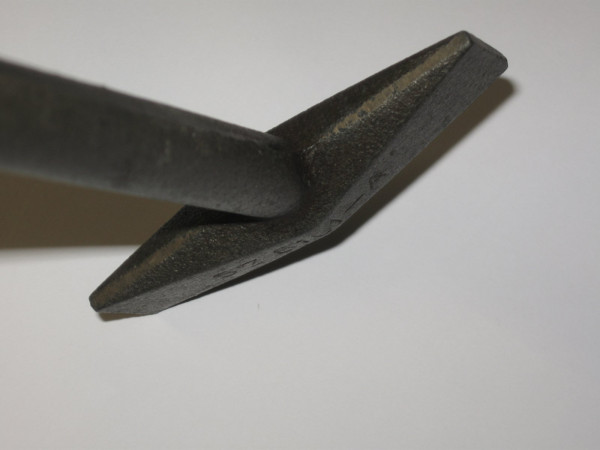

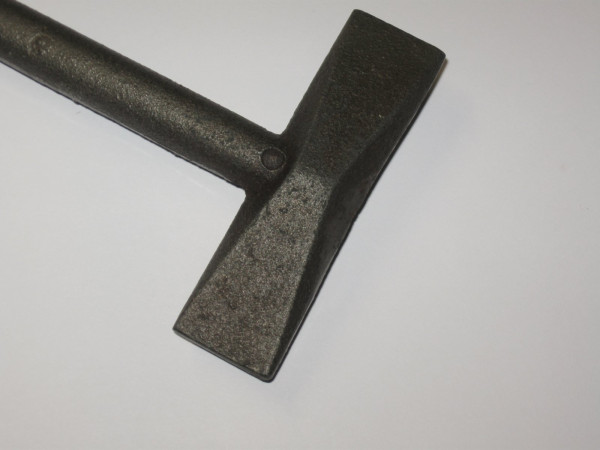

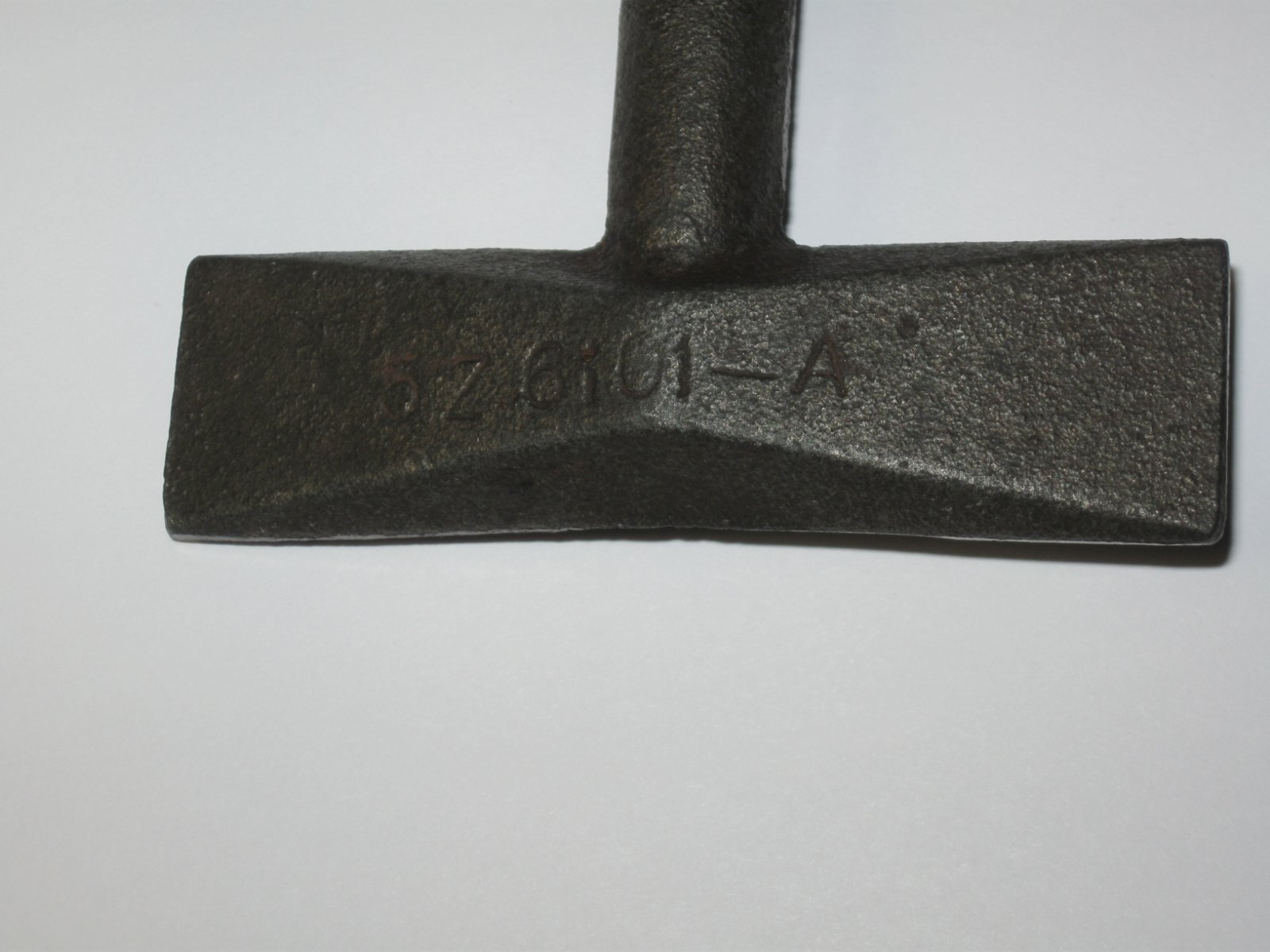

The head is stamped with a 5Z number, 5-Z-6101-A. It is 9.750" long and the head is 3.250" long and 0.875" tall. The ends of the head (faces?) taper down and are 0.125" thick.

Ford switched from 3Z to 5Z for tool numbering in late 1920 or early 1921, could be Model T or Model A. So, what might this have been, if even Ford? I have seen some factory tooling and pieces with an 18Z or 24Z number, but I have not come across any 5Z or 3Z numbered tools that were not Ford. Any guesses or ideas are definitely welcomed, if anyone would like any other photos or measurements just let me know. I have a thought of what it might be, but I will wait for other guesses before I embarrass myself with my guess.
"Remember son, there are two ways to do this: The right way, and your way” Thanks Dad, I love you too.

LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Unknown 5Z tool.

Post by speedytinc » Mon Nov 25, 2024 5:54 pm

SWAG : A tool to align body to frame mounting bracket holes.
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Unknown 5Z tool.

Post by TRDxB2 » Mon Nov 25, 2024 10:41 pm

Did some internet searching: Still a guess!!!
Some possibilities based on the handle wrapping.

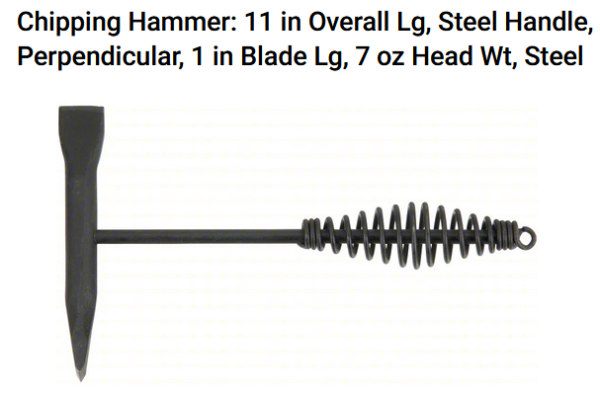

Coiled winding and it looks like a welder's chipping hammer

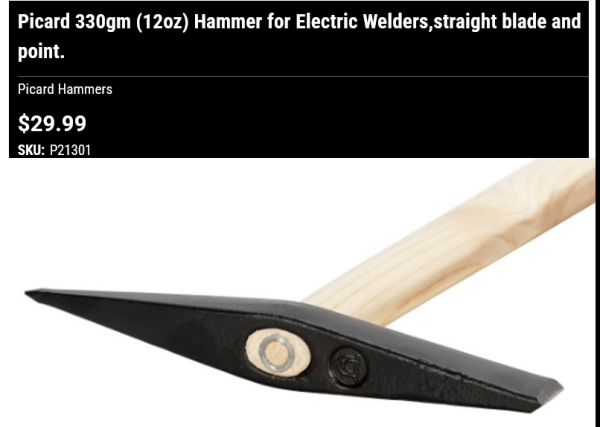

Wood handle & is a pein hammer

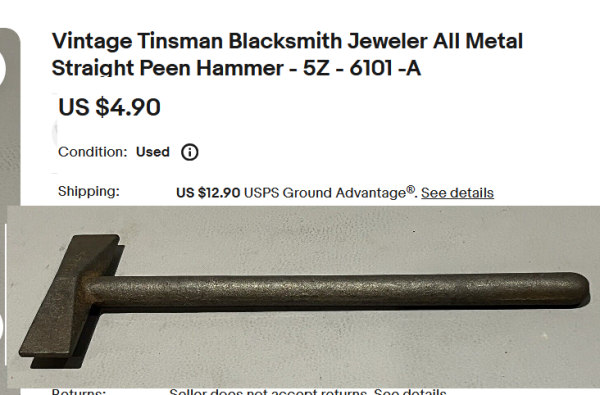

This eBay description needs to be verified
Attachments
5Z 6101.png
pein ooo.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Unknown 5Z tool.

Post by Mark Gregush » Tue Nov 26, 2024 4:39 pm

Maybe Lincoln or tractor?
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
