Inner Axle Sleeve Orientaion

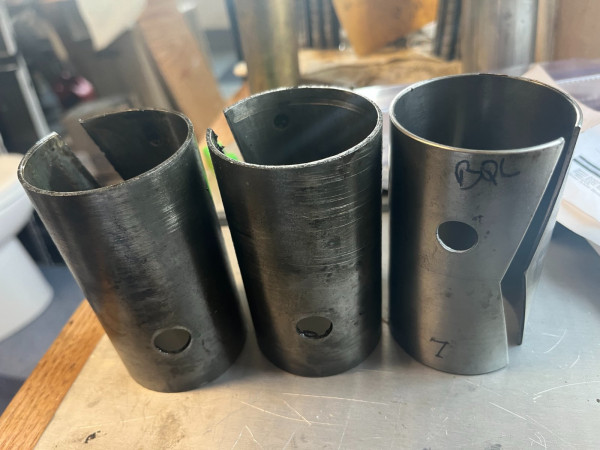

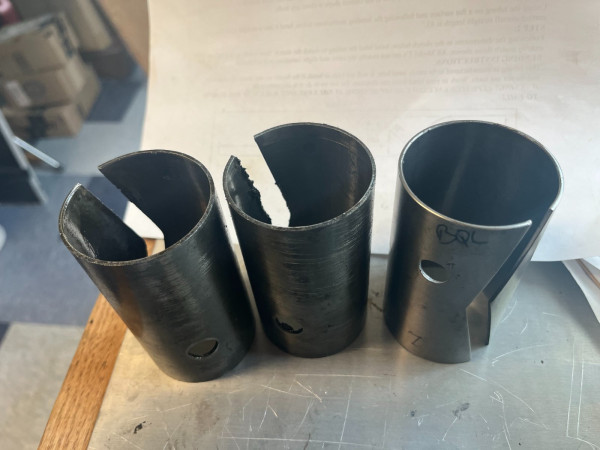

Confused again. I purchased left and right inner rear Axle sleeves, but they're not oriented like the old sleeves I removed. Both axles have the dimple facing "outward" as they are inserted (ie, closest to the differential), but one sleeve has the dimple on the inner end. I need to reverse the "arrow" (sleeve opening) to make one fit. Here are a couple photos. The new sleeve is on the right.
-
mortier
Topic author - Posts: 92
- Joined: Sun Jan 06, 2019 7:16 pm
- First Name: Philip
- Last Name: Jamison
- * REQUIRED* Type and Year of Model Ts owned: 1915 Roadster
- Location: PA
Re: Inner Axle Sleeve Orientaion
I inserted the other sleeve figuring that, as long as that bump aligns with the hole in the axle shaft, it should work. No need to align the grease hole.
-
michaelb2296
- Posts: 206
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
Re: Inner Axle Sleeve Orientaion
Many of the new axle sleeves are made incorrectly. Two things:
1. There are differences between early and late models.
1/2” vs. 3/4” dimple from edge. Many are just fabricated without exact spec in mind… and the dimple is off.
2. Hole position. There are left/rights . Axles turn opposite the bearing.Sometimes the people creating them do not understand hole position with respect to the V groove….
Speak with the part suppliers if the part is not correct. Send a picture and verify with them. They will make it right!
With Best,
Michael
1. There are differences between early and late models.
1/2” vs. 3/4” dimple from edge. Many are just fabricated without exact spec in mind… and the dimple is off.
2. Hole position. There are left/rights . Axles turn opposite the bearing.Sometimes the people creating them do not understand hole position with respect to the V groove….
Speak with the part suppliers if the part is not correct. Send a picture and verify with them. They will make it right!
With Best,
Michael
