1913 KW Coilboxes
Ford only used this coil box for one year. They used mica pieces below the common grounding strip on the bottom to insulate the ground from the mag and battery wires. These mica pieces appear to be about 1 1/8" to 1 1/4" square, and about .030 thick. Does anyone know if mica is available like that?
-
Dan McEachern
- Posts: 1400
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: 1913 KW Coilboxes
McMaster-Carr carries it in various thicknesses, but it's not cheap!! Might try an electric motor shop.........
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: 1913 KW Coilboxes
Larry... Please post pictures of your coil box wiring
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 1913 KW Coilboxes
Looks like you could make your own....Original Smith wrote: ↑Sat Apr 19, 2025 1:10 pmFord only used this coil box for one year. They used mica pieces below the common grounding strip on the bottom to insulate the ground from the mag and battery wires. These mica pieces appear to be about 1 1/8" to 1 1/4" square, and about .030 thick. Does anyone know if mica is available like that?
YouTube shows cutting with https://www.youtube.com/watch?v=1aGzz_G07KY
--

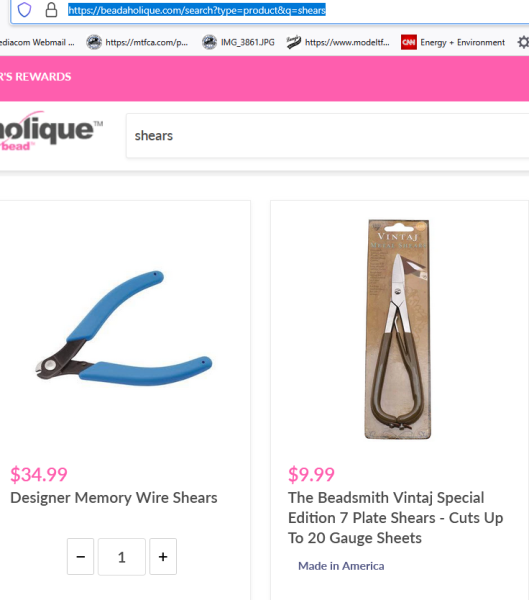

Shears in the video - inexpensive
https://beadaholique.com/search?type=product&q=shears
--

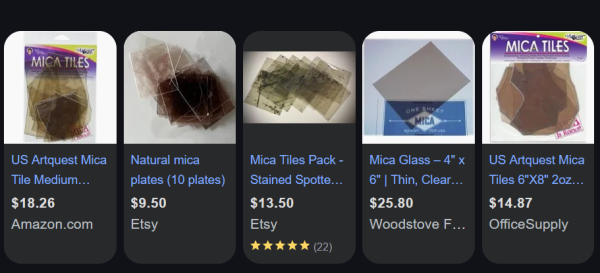

https://www.google.com/search?q=mica+sq ... 1.33#pvs=0
