I took everything off to get the hogs head out. The starter, all the nuts and bolts and I disconnected the packnut on the exhaust. The hogs head is up off the gasket it's not stuck down, but I can't lift it off, it hits the engine, there's not enough space to lift it out. Am I doing something wrong? Also do I need to take the whole exhaust out or is just disconnecting it from the manifold good enough? Do I need to do anything to the u joint to get it off or is there some other part I need to take off, is there some special technique to get it off?
Thanks.
Hogs head stuck
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
LittleTimmy52
Topic author - Posts: 78
- Joined: Sat Jan 04, 2025 4:41 pm
- First Name: Lucas
- Last Name: Milatti
- * REQUIRED* Type and Year of Model Ts owned: 1917 Model T Touring
- Location: Saint cloud FL
- Board Member Since: 2025
-
babychadwick
- Posts: 653
- Joined: Tue Jan 08, 2019 7:03 am
- First Name: Chad
- Last Name: Azevedo
- * REQUIRED* Type and Year of Model Ts owned: 1926 Boattail speedster, 1912 Tourabout project, 1927 Speedster (build), 1929 Buick (future T tow car)
- Location: Henderson, TN
- Board Member Since: 1999
Re: Hogs head stuck
Pull the inspection cover and check the bands aren't still attached to the pedals. It should slide off but could be stuck. Other than taking the 4 bolts free from the 4th main (top and bottom) it should wrestle out.
"Those who fail to plan, plan to fail"
-
Tadpole
- Posts: 553
- Joined: Wed Jul 28, 2021 7:17 am
- First Name: Tad
- Last Name: Glahn
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe, 1926 TT Closed Cab, 1924 Runabout
- Location: Grant's Lick, Kentucky
- Board Member Since: 2021
Re: Hogs head stuck
Few other people seem to do it but I have never had luck pulling a hogshead with the exhaust manifold on the engine. With the manifold removed I can lift the hogshead straight up and then back to clear the flywheel/bands/drums.
Last edited by Tadpole on Thu Jun 12, 2025 9:22 am, edited 1 time in total.
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Hogs head stuck
Is it getting bound up between the back of the engine block and the 4th main bearing?
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Hogs head stuck
The hogshead should remove by lifting straight up, sometimes a small tilt to the rear. Then when free of the engine block, tilt back to remove.

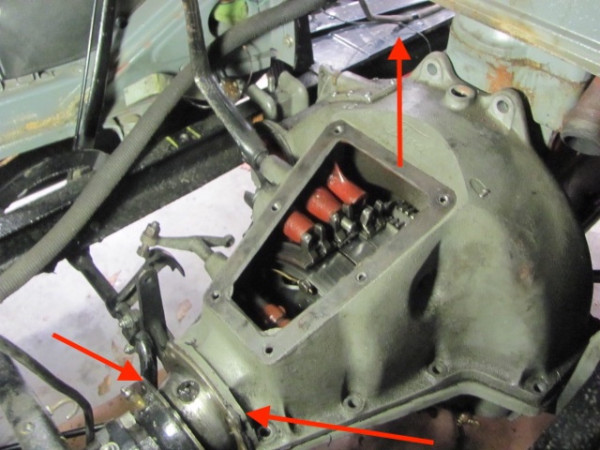

But be sure the rear U joint ball cap is free, remove bolts top and bottom. Sometimes sealant there keeps the back end down.
Free bands, and all other attachments like outside oil lines.
But be sure the rear U joint ball cap is free, remove bolts top and bottom. Sometimes sealant there keeps the back end down.
Free bands, and all other attachments like outside oil lines.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Dan Hatch
- Posts: 5017
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: Hogs head stuck
Check the back of your block. Early blocks are made straight just above the HH. Later blocks have a taper there to make it easier.
It can still be done on an early block, just takes a little more effort.
It can still be done on an early block, just takes a little more effort.
-
LittleTimmy52
Topic author - Posts: 78
- Joined: Sat Jan 04, 2025 4:41 pm
- First Name: Lucas
- Last Name: Milatti
- * REQUIRED* Type and Year of Model Ts owned: 1917 Model T Touring
- Location: Saint cloud FL
- Board Member Since: 2025
Re: Hogs head stuck
the block is literally just about touching the engine, but like one has said, maybe taking that exhaust off will let me pull straight up and towards me to clear the block and someone said something about the bottom ujoint bolts ill loosten them too to see if it helps. but my main issue is being that darn block right in the way.
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Hogs head stuck
Is it possible that the clutch release ring is caught on something?. Try wiggling the clutch shaft while cover is being pulled up
In any case, you'll need lots of elbow room to put it back on in order to slide the clutch ring into position
In any case, you'll need lots of elbow room to put it back on in order to slide the clutch ring into position
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Hogs head stuck
Remove the exhaust manifold. (it may be possible without removing the manifold, but I found it must be removed to re-install, so pull it now.)
Remove the 4th main bolts.
Pull back the 4th main about 3/8". You can use a stack of spacer washers or a 7/16 nut with a longer bolt to keep the ball cap back @ one or both of the lower 2 mount holes.
Pivot the HH up @ the front.
Remove the 4th main bolts.
Pull back the 4th main about 3/8". You can use a stack of spacer washers or a 7/16 nut with a longer bolt to keep the ball cap back @ one or both of the lower 2 mount holes.
Pivot the HH up @ the front.
-
tiredfarmer
- Posts: 129
- Joined: Thu Apr 09, 2020 11:29 am
- First Name: leonard
- Last Name: simunek
- * REQUIRED* Type and Year of Model Ts owned: 1926 touring. 1931 model a pickup, 1947 willys cj2a
- Location: waukomis, ok
Re: Hogs head stuck
Reading all the problems of removing the hogshead in the car, I believe that it would be easier to take the engine out then it would be easier to remove the hogshead.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Hogs head stuck
It is a PITA. Not so bad with an aluminum HH.
However, the time & extra work it takes to pull the motor isnt worth it.
However, the time & extra work it takes to pull the motor isnt worth it.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Hogs head stuck
If you are having this much strife getting the thing off, imagine putting it back on!
On our RHD cars getting the exhaust pipe out of the way often means taking the system off.
Sometimes the HH scrapes on the exhaust manifold getting it off. This means the exhaust manifold should come off, so you don't have to fight against it going back on.
Pulling back the fourth main cap widens the gap, also a help getting the thing back on.
I made a cradle to use when re-fitting the cover to take the weight of the thing as you juggle it into place. Then it can be a one man job.
Anything you can do to open up the gap and get stuff out of the way will help getting it back on.
Allan from down under.
On our RHD cars getting the exhaust pipe out of the way often means taking the system off.
Sometimes the HH scrapes on the exhaust manifold getting it off. This means the exhaust manifold should come off, so you don't have to fight against it going back on.
Pulling back the fourth main cap widens the gap, also a help getting the thing back on.
I made a cradle to use when re-fitting the cover to take the weight of the thing as you juggle it into place. Then it can be a one man job.
Anything you can do to open up the gap and get stuff out of the way will help getting it back on.
Allan from down under.
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Hogs head stuck
Something must not be moving. I have a 24 Coupe and I finally took off the firewall and for me everything was easier to get to. I did it that way. Look closely with someone looking on as you move it up to see where it’s hitting on or dragging on.
Was the handbrake moving the clutch ring back and forth before you unbolted everthing?
Was the car running and driving before you took it apart?
Was it sitting up or???
To me it sounds like something under the hogsheads is not letting the HH move back or up.
.
Was the handbrake moving the clutch ring back and forth before you unbolted everthing?
Was the car running and driving before you took it apart?
Was it sitting up or???
To me it sounds like something under the hogsheads is not letting the HH move back or up.
.
