Hello, I am looking for a used rear wheel puller to remove the rear wheels from my 1926 TT. Does anyone have one for sale. I have seen all of the new ones, kind of looking for a used one.
Thank You
Rear Puller Needed
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Rear Puller Needed
What you might want to consider would be to remove the 15/16” castellated axle nut, turn it over and reinstall it where nut bottom is almost flush with the axle end. Use a brass hammer or brass drift and whack it a few times. Might work - does for me....
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
-
Ruxstel24
- Posts: 2345
- Joined: Sun Jan 06, 2019 11:25 am
- First Name: Dave
- Last Name: Hanlon
- * REQUIRED* Type and Year of Model Ts owned: 24 Touring car
- Location: NE Ohio
- Board Member Since: 2018
Re: Rear Puller Needed
Sent you an email Joe.
I have a few...
I have a few...
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Rear Puller Needed
If the vehicle runs, you can loosen the nut, put the pin back in, and drive around a little to break the wheel loose.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
DHort
- Posts: 2826
- Joined: Sun Jan 06, 2019 1:30 pm
- First Name: Dave
- Last Name: Hjortnaes
- * REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
- Location: Men Falls, WI
Re: Rear Puller Needed
Wheel puller did not do it.
Driving around the block a few times did not do it.
What is the next step?
Driving around the block a few times did not do it.
What is the next step?
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Rear Puller Needed
Old trick, jack up the other side from the wheel you are pulling. Put the puller on the wheel that you need to get off with the wheel on the ground, snug the puller as tight as you can and smack it good a few times with a sledge hammer. You are knocking the axle out of the hub this way. Leave the nut on backed off to the end of the axle threads, but turned over while you are doing this, helps keep the end of the axle from getting mushroomed. Repeat other side if you are pulling both wheels. Be sure the brakes are backed off so they don't hang up. Once you get it free, if it slides off, great, if not, take the nut off and use the puller to assist the rest of the way. Don't jack any more then to get wheel off the ground, there is a lot of weight there.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
Ruxstel24
- Posts: 2345
- Joined: Sun Jan 06, 2019 11:25 am
- First Name: Dave
- Last Name: Hanlon
- * REQUIRED* Type and Year of Model Ts owned: 24 Touring car
- Location: NE Ohio
- Board Member Since: 2018
Re: Rear Puller Needed
When you had the puller on "good n tight", did you try hitting the bolt with a sledge hammer ?
Try it if not, a couple good straight hits should do it.
Put the nut on to the end of the axle threads first.
Try it if not, a couple good straight hits should do it.
Put the nut on to the end of the axle threads first.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Rear Puller Needed
As others posted, apply a force, Hammer! Those hub cap thread style pullers need assistance, you can't wrench off a rear wheel hub, unless it was too loose to start with
After the puller is tight on the hub thread, twist the knock screw in firmly, strike! And then twist the knock screw again, as the axle will start to move slightly, strike again! Normally you will hear a 'bang' and the hub will now be loose.

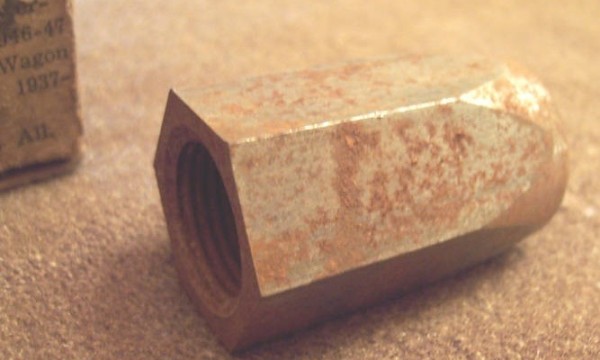

Or without that style, the simple 'knock-offs' that thread fully onto and bottom out on the end of the axle shaft are done similar, remember to have the opposite wheel jacked up, and the wheel for removal on the ground. You are 'knocking' the axle out of the hub.
After the puller is tight on the hub thread, twist the knock screw in firmly, strike! And then twist the knock screw again, as the axle will start to move slightly, strike again! Normally you will hear a 'bang' and the hub will now be loose.

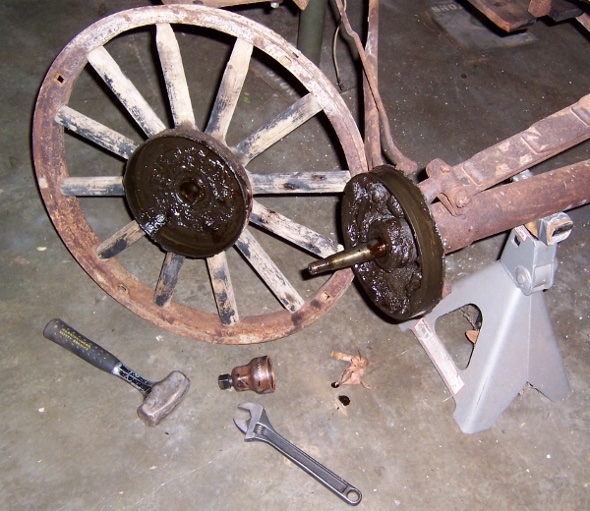

- 100_5400 (600x520) (590x511).jpg (166.59 KiB) Viewed 4213 times
Or without that style, the simple 'knock-offs' that thread fully onto and bottom out on the end of the axle shaft are done similar, remember to have the opposite wheel jacked up, and the wheel for removal on the ground. You are 'knocking' the axle out of the hub.
- Wheel puller instructions - Copy.jpg (114.18 KiB) Viewed 4213 times
